User Manual for ATEN VE810 HDMI Extender Set with IR Control Click to enlarge the picture
Contents of the user manual for the ATEN VE810 HDMI Extender Set with
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE810 HDMI Extender Set with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

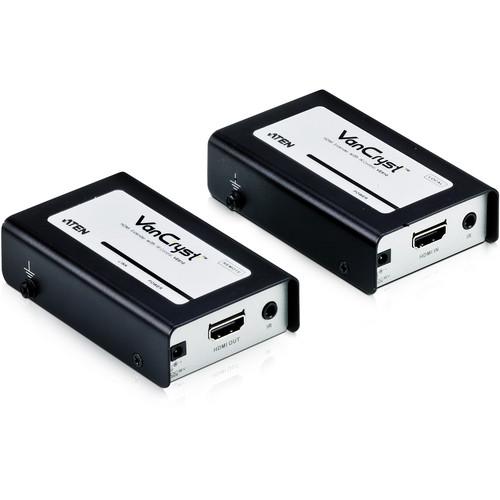

Product description The VE810 HDMI Extender Set with IR Control from ATEN extends your HDMI display up to 197 feet from your HDMI source device using two Cat5e cables. In addition, the VE810 is equipped with IR signaling pass-through, allowing the IR channel to control the HDMI source from the remote unit, or to control the display device from the local unit. For flexibility and convenience, the VE810 setup requires only one power adapter for both units. This means the VE810R can function without the need of an additional power adapter, as it is powered by the VE810 local unit. - Uses less expensive Cat5e cables to connect the local and remote units
- Either the HDMI device or display can be controlled via IR control
- Eight-segment equalization adjustment switch optimizes display quality
- Extends 1080p by 131' and 1080i by 197'
- Improved video quality—1920 x 1200 @ 60 Hz, up to 1080p
- Supports Dolby True HD and DTS HD Master Audio
- Compatible with all ATEN HDMI switches and splitters
- The set only requires one local power adapter which also powers the remote unit
UPC: 672792003165 In the Box ATEN VE810 HDMI Extender Set with IR Control VE810L HDMI Local Unit VE810R HDMI Remote Unit Power Adapter (Local) Mounting Kit IR Transmitter IR Receiver Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE810 HDMI Extender Set with IR Control in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE810 Specs | Video Input | Interface: 1 x HDMI Type A, female
Impedance: 100 Ohms
Maximum Distance: 5.9' (1.8 m) | | Video Output | Interface: 1 x HDMI Type A, female
Impedance: 100 Ohms | | Video | Maximum Data Rate: 6.75 Gbps (2.25 Gbps per lane)
Maximum Pixel Clock: 225 MHz
Compliance: HDMI (3D, Deep Color), HDCP 1.4 compatible
Maximum Resolutions/Distance:
Up to 1080p/131' (40 m)
Up to 1080i/197' (60 m) | | Audio | Input: 1 x HDMI Type A, female
Output: 1 x HDMI Type A, female | | Control | IR 3.5 mini stereo jack, female | | Power Consumption | VE810L: 5 VDC, 1.52 W
VE810R: 5 VDC, 1.35 W
Connector: 1 x DC jack | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 3.5 x 2.3 x 0.9" (9.0 x 5.8 x 2.4 cm) each | | Weight | 0.3 lb (0.2 kg) each |
