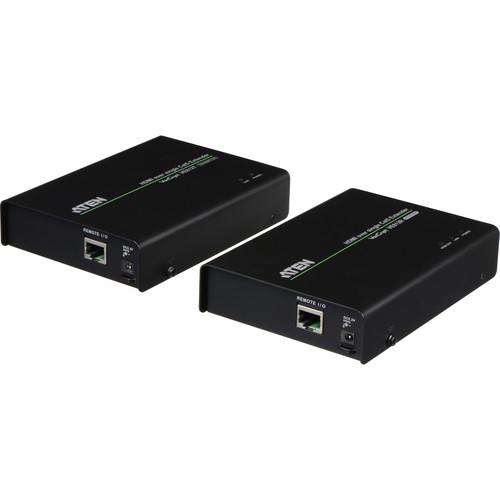

User Manual for ATEN VE812 HDMI over Single Cat 5 Extender Click to enlarge the picture
Contents of the user manual for the ATEN VE812 HDMI over Single Cat
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE812 HDMI over Single Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE812 HDMI over Single Cat 5 Extender set from Aten enables an HDMI display to be located up to 328 feet (100 meters) away from the source device. Conveniently, its range can be extended by utilizing just one Cat 5e cable.
The VE812 supports HDMI (3D, Deep Color) as well as Ultra HD (4K x 2K), and is HDCP compatible. Furthermore, its remote EDID pass-through circuitry ensures increased video quality for your HDMI display. The VE812 is suitable for the meeting room, home theater or any installation that requires long distance transmission and enhanced video quality.
The VE812 set consists of the VE812R receiver and the VE812T transmitter. - Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4K x 2K); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 328' (100m)
- Supports resolutions of up to Ultra HD 4K x 2K and 1080p Full HD
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340 MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8 kV / 15 kV ESD protection (Contact voltage 8 kV; Air voltage 15 kV)
UPC: 672792004438 In the Box ATEN VE812 HDMI over Single Cat 5 Extender (Set) VE812R HDMI Over Single Cat 5 Receiver vwecuxrucxeay Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE812 HDMI over Single Cat 5 Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE812 Specs | | | HDMI In | VE812T: 1 x HDMI type A female (black) | | HDMI Out | VE812R: 1 x HDMI type A female (black) | | Line In/Out | 1 x RJ-45 female (silver) | | Power | 1 x DC jack (black) | | | | Power/Link | 1 (green) | | HDMI Out | VE812R: 1 (green) | | Maximum Operating Distance | 328' (100 m) | | | | Maximum Video Resolution | 4K x 2K, 1080p @ 60 Hz at 328' (100 m) | | | | DC Charge | VE812T: 5.3 V, 1.9 W
VE812R: 5.3 V, 4.5 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity (Non-condensing) | 0 to 80% RH | | Number of HDMI Inputs | 1 | | Number of HDMI Outputs | 1 | | | | Housing | Metal | | Dimensions (L x W x D) | 5.6 x 4.1 x 1.2" (14.17 x 10.30 x 3.00 cm)(each) | | Weight | 0.9 lb (0.40 kg)(each) | | | | Package Weight | 3.3 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 4.1" |
