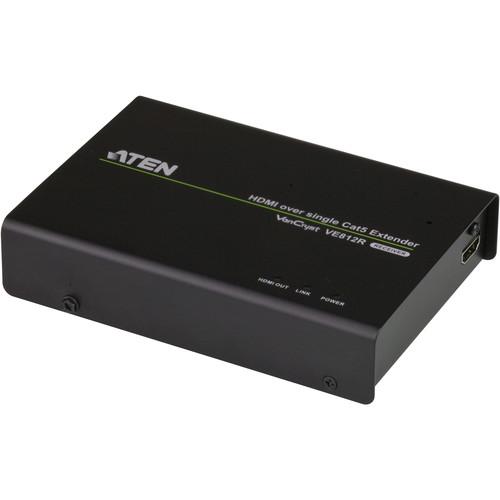

User Manual for ATEN VE812R HDMI Over Single Cat 5 Receiver Click to enlarge the picture
Contents of the user manual for the ATEN VE812R HDMI Over Single Cat
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE812R HDMI Over Single Cat contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE812R HDMI Over Single Cat 5 Receiver from Aten supports HDBaseT technology, which uses a single Cat 5e cable to extend signals up to 328 feet (100 meters). The VE812R not only supports HDMI (3D, Deep Color) but also Ultra HD (4k) and is HDCP compatible. Furthermore, the VE812R's remote EDID pass-through technology is designed to improve video quality for your HDMI display.
This unit can be paired with the optionally purchasable VE812T Transmitter or both can be purchased together as the VE812 set. - Implements HDBaseT extension technology using only one Cat 5e cable to connect the transmitter and receiver
- HDMI (3D, Deep Color, 4K x 2K); HDCP Compatible
- Anti-jamming - resists signal interference during high-quality video transmission using HDBaseT technology
- Long distance transmission - up to 330' (100m)
- EDID Expert - selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340 MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8 KV / 15 KV ESD protection (Contact voltage 8 KV; Air voltage 15 KV)
UPC: 672792004568 In the Box ATEN VE812R HDMI Over Single Cat 5 Receiver Power Adapter Mounting Kit Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE812R HDMI Over Single Cat 5 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE812R Specs | Video Output | Interface: 1 x HDMI Type A female (black)
Impedance: 100 ohms | | Video | Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Maximum Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP compatible
Consumer Electronics Control (CEC)
Maximum Resolutions / Distance: Up to:
Up to 4K @ 230' (70 m) (Cat 5e/6)
1080p @ 328' (100 m) (Cat 5e/6) | | Audio Output | 1 x HDMI Type A female (black) | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 4.5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 40 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 5.6 x 4.10 x 1.18" (14.17 x 10.30 x 3.00 cm) | | Weight | 0.95 lb (0.43 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.5 x 6.4 x 2.2" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 36 owners. Add your rating and experience with the product.
