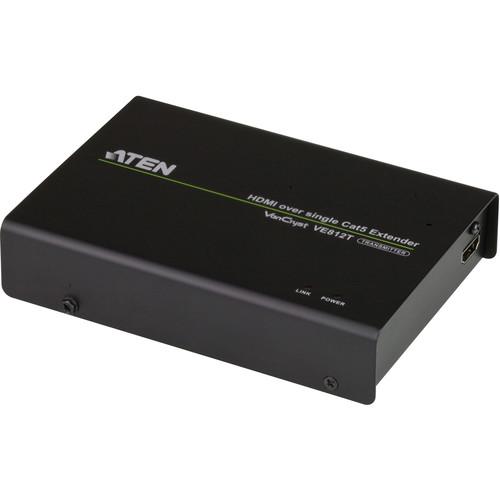

User Manual for ATEN VE812T HDMI over Single Cat5 Transmitter Click to enlarge the picture
Contents of the user manual for the ATEN VE812T HDMI over Single Cat5
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE812T HDMI over Single Cat5 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE812T HDMI over Single Cat5 Transmitter from Aten is an extender which supports HDBaseT technology and utilizes a single Cat5e cable to extend signals up to 300 feet (100 meters). The VE812T is HDCP compatible and supports both HDMI (3D, Deep Color) and Ultra HD 4K. Furthermore, its remote EDID pass-through circuitry helps ensure improved video quality for your HDMI display. All of this functionality occurs while conveniently travelling through just one Cat5e cable.
The VE812T is suitable for meeting rooms, home theater setups, or almost any installation that requires long-distance transmission and superior video quality.This unit can be paired with the VE812R (sold separately), or both can be purchased together as the VE812 set. - Implements HDBaseT extension technology using only one Cat5 cable to connect the transmitter and receiver
- HDCP compatible HDMI (3D, Deep Color, 4K x 2K)
- Anti-jamming resists signal interference during high-quality video transmission using HDBaseT technology
- Long-distance transmission up to 330'
- EDID Expert selects the optimum EDID settings for smooth power-up and highest quality display
- Supports up to 340 MHz bandwidth for high performance video
- Supports Dolby True HD and DTS HD Master Audio
- Built-in 8 kV / 15 kV ESD protection (contact voltage 8 kV; air voltage 15 kV)
UPC: 672792004551 In the Box ATEN VE812T HDMI over Single Cat5 Transmitter Power Adapter Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE812T HDMI over Single Cat5 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE812T Specs | Video | 1 x HDMI Type A, female
Impedance: 100 Ohms
Maximum Distance: 5.9' (1.8 m)Cat5e/6 Maximum Resolutions @ Distance:
Up to 4K @ 230' (70 m)
Up to 1080p @ 328' (100 m)Maximum Data Rate: 10.2 Gbps (3.4 Gbps per lane)
Maximum Pixel Clock: Up to 340 MHz
Compliance:
HDMI (3D, Deep Color, 4K)
HDCP compatible
Consumer Electronics Control (CEC) | | Audio | 1 x HDMI Type A, female | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 1.9 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, Non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 5.6 x 4.1 x 1.2" (14.2 x 10.3 x 3.0 cm) | | Weight | 0.9 lb (0.4 kg) | | | | Package Weight | 1.65 lb | | Box Dimensions (LxWxH) | 9.5 x 6.5 x 2.25" |
