User Manual for ATEN VE813 HDMI HDBaseT Extender Set with USB Click to enlarge the picture
Contents of the user manual for the ATEN VE813 HDMI HDBaseT Extender Set
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE813 HDMI HDBaseT Extender Set contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

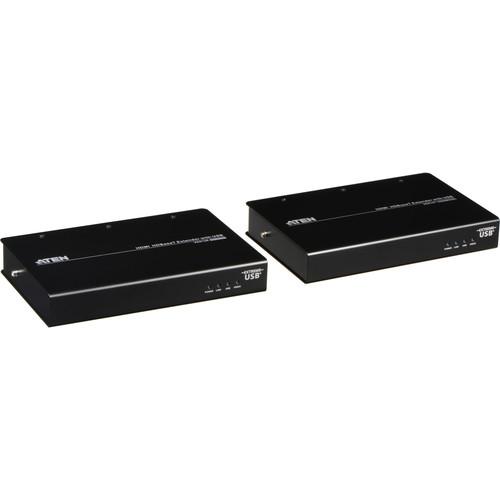

Product description The VE813 HDMI HDBaseT Extender Set with USB set from Aten is an HDMI and USB extender consisting of the VE813T transmitter and the VE813R receiver. It offers support for HDBaseT and ExtremeUSB technology. The VE813 system can extend an HDMI signal up to 330 feet from the HDMI source using a single Cat5e/6 cable. It supports HDMI features such as 3D, Deep Color, 4k2k, CEC, and HDCP, and is equipped with USB ports that provide touch panel control and file transfer functionality. The extender set is also great for syncing files and folders between portable and desktop computers. The VE813 is suitable for medical imaging and digital signage usage. - Implements HDBaseT extension technology using only one Cat5e/6 cable to connect the transmitter and receiver
- Long-distance transmission up to 328 feet
- Supports resolutions up to Ultra HD 4K x 2K and 1080p Full HD
- HDCP compatible HDMI (3D, Deep Color, 4Kx2K)
- Anti-jamming resists signal interference during high-quality video transmissions using HDBaseT technology
- Supports up to 340 MHz bandwidth for high performance video
- ExtremeUSB support for all USB 2.0 high speed devices, with USB transfer rates up to 30 Mbps
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) Support
- Built-in 8 kV/15 kV ESD protection (contact voltage 8 kV; air voltage 15 kV)
- USB 2.0 support connects devices such as keyboard, mouse, flash drive, printer, microphone, speakers, USB 1.1 web cameras, and other USB devices which require moderate amounts of bandwidth
UPC: 672792005619 In the Box ATEN VE813 HDMI HDBaseT Extender Set with USB HDMI Cable USB Cable 2 x Power Adapters Mounting Kit Limited 3-Year Warranty Manual PDF 1mb Table of Contents
|
