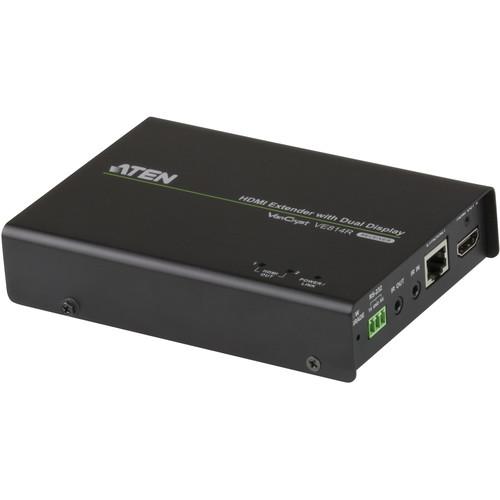

User Manual for ATEN VE814R HDMI Receiver Click to enlarge the picture
Contents of the user manual for the ATEN VE814R HDMI Receiver
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VE814R HDMI Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE814R HDMI Receiver Over Single Cat 5 with Dual Display from ATEN delivers improved video quality in dual displays over long distances. It can be used together with the optionally purchased VE814T (and can be purchased together as a set - ATVE814) to extend signal transmission up to 328 feet (100m) away from the HDMI source device. This is accomplished with the use of just one Cat 5e/6 cable. In addition, your video can be streamed using up to three HDMI displays – dual displays connected to the VE814R and another one to the transmitter unit (VE814T). The VE814R also works with the optional VS1814T and VS1818T 4- and 8-port Cat 5 splitters. The VE814 carries an Ethernet pass-through port for Internet connectivity, making it easy to go online when necessary. It supports RS-232 and IR signaling pass-through, allowing you to control the HDMI source device from the remote unit (VE814R) while also granting access to the HDMI display device from the local unit (VE814T). The VE814 is HDMI (3D, Deep Color, 4K x 2K) and HDCP compatible, ensuring high video quality. - Extends the distance between HDMI source and HDMI display
- Implements HDBaseT extension technology using only one Cat 5 cable to connect the transmitter and receiver
- Anti-jamming resists signal interference during high-quality video transmissions using HDBaseT technology
- Supports one local and two remote displays
- Supports two IR channels for bi-directional IR signal transmission
- Extends Ethernet communication with pass-through port
- HDMI (3D, Deep Color, 4K x 2K); HDCP Compatible
- Long distance transmission up to 328' (100m)
- Supports resolutions of up to Ultra HD 4Kx2K and 1080p Full HD
- Supports up to 340MHz bandwidth for high performance video
- Signaling rates up to 3.4 Gb/s
- EDID Expert - selects the optimum EDID settings for smooth power-up and high quality display
- RS-232 Serial Port for serial device peripherals, such as touch screens, barcoders scanners, etc
- Built-in 8/15 kV ESD protection (Contact voltage 8 kV; Air voltage 15 kV)
- Easy to install - no software required
UPC: 672792006807 In the Box ATEN VE814R HDMI Receiver VE814R Receiver Mounting Kit Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE814R HDMI Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE814R Specs | | | HDMI Output | 2 x HDMI Type A female (black) | | Line In/Out | 1 x RJ-45 female (silver) | | Ethernet | 1 x RJ-45 female (silver) | | RS-232 | 1 x Terminal Block, 3 pole | | IR Input / Output | 2 x mini stereo jack (black) | | Power | 1 x DC Jack (black) | | | | Power Linking | 1 (green) | | HDMI Output | 2 (green) | | Video | 4K x 2K, 1080p @ 60 Hz at 328' (100 m) | | Power Consumption | 5.3 VDC, 13.3 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | | | Housing | Metal | | Dimensions (L x W x H) | 5.6 x 4.1 x 1.2" (14.22 x 10.40 x 3.05 cm) | | Weight | 0.90 lb (0.43 kg) | | | | Package Weight | 1.7 lb | | Box Dimensions (LxWxH) | 9.5 x 6.5 x 2.25" |
