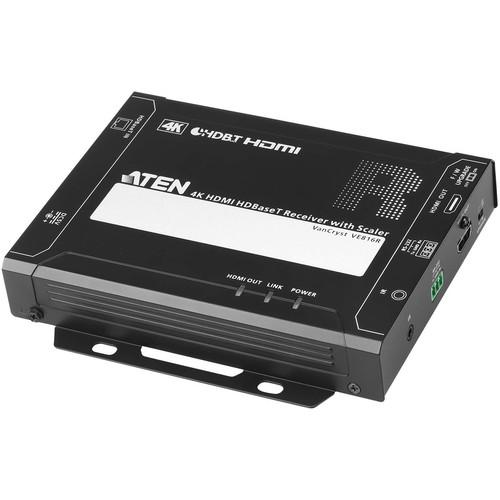

User Manual for ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler Click to enlarge the picture
Contents of the user manual for the ATEN VE816R 4K HDMI HDBaseT Receiver
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE816R 4K HDMI HDBaseT Receiver contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description Provided by third party: ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler is designed to work with several ATEN HDBaseT Matrix Switches to extend 4K HDMI signals up to 100 m over a single Cat 5e/6/6a or an ATEN 2L-2910 Cat 6 cable, and at the same time, scales videos of different resolutions for optimal display. Supporting bi-directional RS-232 channel and IR signaling pass-through, the VE816R provides users the path to remotely control the compatible devices. When working with ATEN HDBaseT Matrix, The VE816R features Frame Sync and Cable Quality Tester technologies to ensure smooth video and intuitive cable testing process. When working with ATEN HDMI HDBaseT-Lite Matrix Switches, or Modular Matrix Switches with HDBaseT output boards, the VE816R supports video wall integration and ATEN's Seamless Switch function, providing users the ultimate A/V experiences.
- Key Features
-
- Extends HDMI, RS-232, and IR signals up to 100 m over a single Cat 5e/6/6a or ATEN 2L-2910 Cat 6 cable
- HDCP 2.2 compatible
- Superior video quality: 4K up to 100 m , 1080p up to 150 m
- HDBaseT Long Reach Mode ? activated by RS-232 commands, Long Reach Mode extends signals up to 150 m, 1080p, via a single Cat 5e/6 cable
- Scaler ? scales videos of different resolutions to their optimal output for display and to avoid black screen
- Video Wall ? features video wall profiles that allows for custom screen layouts via an intuitive web GUI
UPC: 672792007859 Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE816R 4K HDMI HDBaseT Receiver with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE816R Specs | | | Device Type | Video/audio/infrared/serial extender | | Form Factor | Rack-mountable | | | | Connectivity Technology | Wired | | Data Link Protocol | HDBaseT | | Max Resolution | 4096 x 2160 / 3840 x 2160 @ 60 Hz | | Max Video Bandwidth | 340 MHz | | Max Transfer Distance | 492 ft | | Features | 3D support, 4K resolution support, 8KV/15KV ESD Protector, scaling function | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 1 x HDMI (output) - Type A female
1 x IrDA - mini jack female
1 x RS-232 - terminal block | | | | Included Accessories | IR receiver, IR transmitter | | Rack Mounting Kit | Optional | | | | Power Device | External power adapter | | Power Consumption Operational | 9.09 Watt | | | | Width | 5.8 in | | Depth | 6.6 in | | Height | 1.2 in | | Weight | 23.63 oz | | | | Min Operating Temperature | 32
