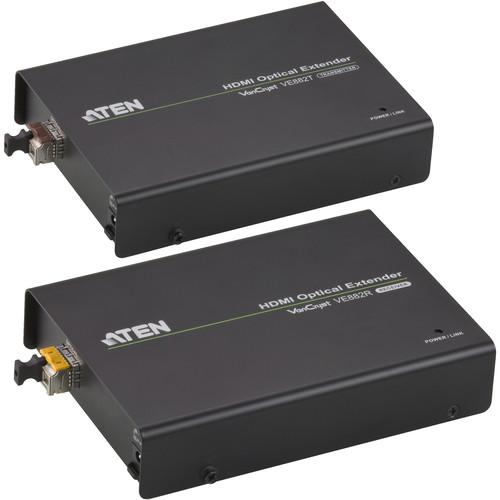

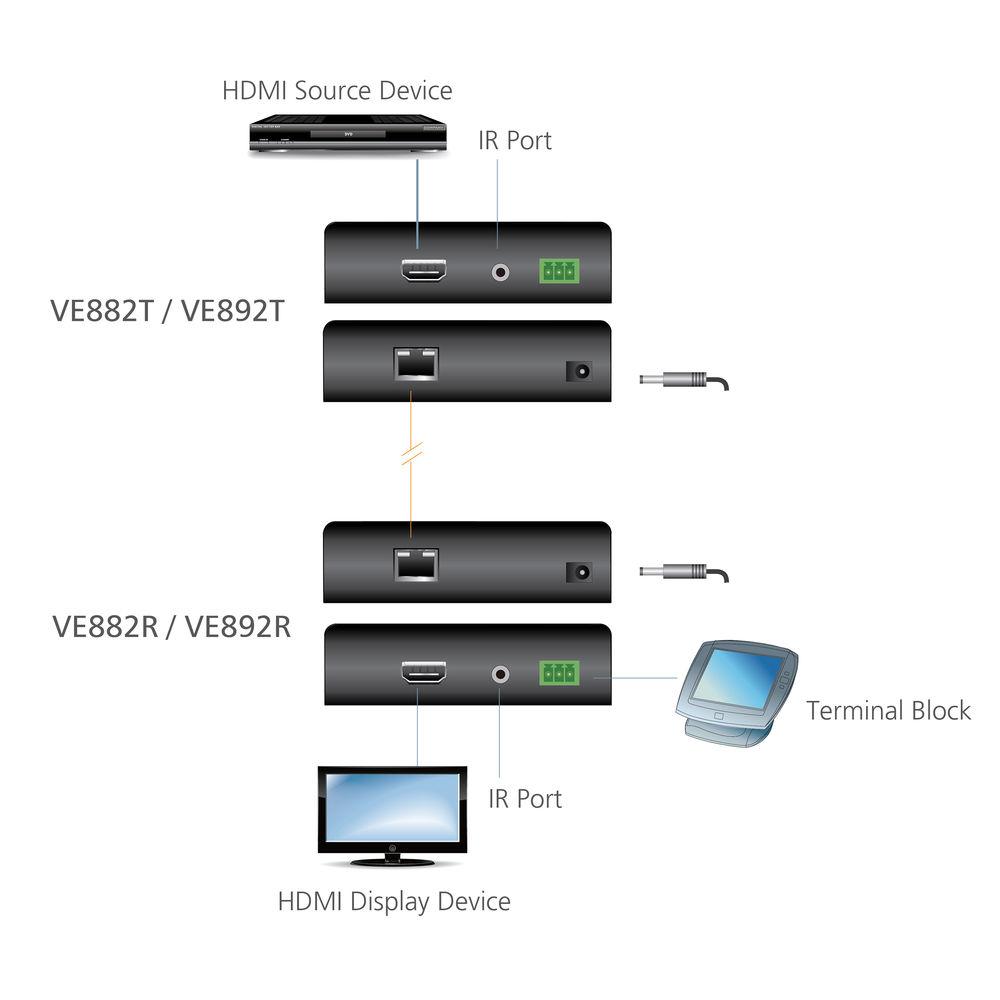

Product description The VE882 HDMI Optical Extender from Aten uses optical fiber to send high definition audio and video signals over long distances. It accepts an audio/video stream from a local source and serializes the data, allowing you to pass the data through a single 3.125 GB per second optical link. The VE882 can also connect serial devices, such as touch screens and barcode scanners, by extending the IR remote control and transferring the RS-232 in both directions. - Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Long distance transmission of up to 1970 feet
- Supports full frequency IR signal from 30 KHz to 60 KHz
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Features RS-232 serial port for connecting peripherals
- Supports bi-directional IR signal transmission
- Built-in 8KV/15KV ESD protection
- Rack-mountable and hot-pluggable
UPC: 672792003530 In the Box ATEN VE882 HDMI Optical Extender IR Transmitter Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE882 HDMI Optical Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

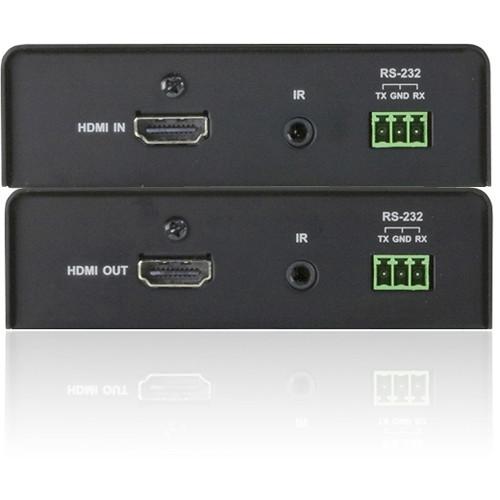

Technical parametersATEN VE882 Specs | Connectors | Transmitter HDMI In: 1 x HDMI Type A Female
Receiver HDMI Out: 1 x HDMI Type A Female

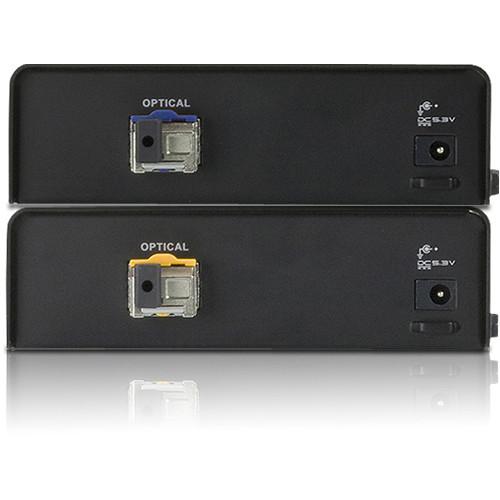

Optical In/Out: 1 x LC Simplex Connector (SFP, bi-directional)
RS-232: 1 x terminal block, 3 pole
IR: 1 x mini stereo jack
Power: 1 x DC jack | | Operating Distance | 1,970.0' / 600.5 m, with single mode fiber | | Fiber Optics Wavelength | 1310/1550 nm for single mode | | Data Rate | Single fiber: 1080p / 60 Hz (24-bits, 3.125 GB per sec) | | LED Indicators | 1 x Power/Link (Green) | | Operating Temperature | 32 to 122°F / 0 to 50°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Housing | Metal | | Dimensions | 5.6 x 4.1 x 1.2" / 14.2 x 10.4 x 3.0 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 3.6 lb | | Box Dimensions (LxWxH) | 11.2 x 7.0 x 4.0" |
