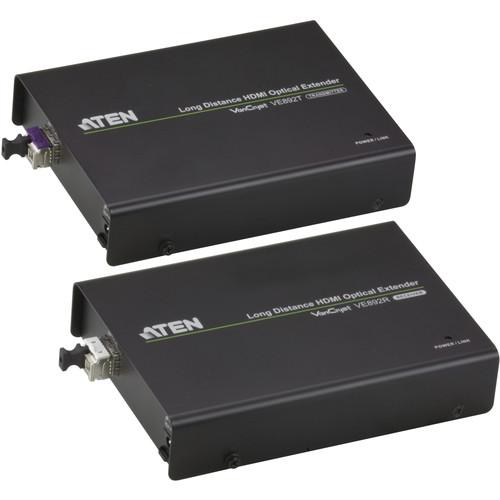

User Manual for ATEN VE892 HDMI Optical Extender Click to enlarge the picture
Contents of the user manual for the ATEN VE892 HDMI Optical Extender
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VE892 HDMI Optical Extender contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VE892 HDMI Optical Extender from Aten uses optical fiber to send high definition audio and video signals over long distances. It accepts an audio/video stream from a local source and serializes the data, allowing you to pass the data through a single 3.125 GB per second optical link. The VE892 can also connect serial devices, such as touch screens and barcode scanners, by extending the IR remote control and transferring the RS-232 in both directions. - Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Long distance transmission of up to 12 miles
- Supports full frequency IR signal from 30 KHz to 60 KHz
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Features RS-232 serial port for connecting peripherals
- Supports bi-directional IR signal transmission
- Built-in 8KV/15KV ESD protection
- Rack-mountable and hot-pluggable
UPC: 672792003547 In the Box ATEN VE892 HDMI Optical Extender IR Transmitter IR Receiver Mounting Kit 2 x Power Adapters Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VE892 HDMI Optical Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE892 Specs | Connectors | Transmitter HDMI In: 1 x HDMI Type A Female
Receiver HDMI Out: 1 x HDMI Type A Female
Optical In/Out: 1 x LC Simplex Connector (SFP, bi-directional)
RS-232: 1 x terminal block, 3 pole
IR: 1 x mini stereo jack
Power: 1 x DC jack | | Operating Distance | 65,000.0' / 19,812.0 m, with single mode fiber | | Fiber Optics Wavelength | 1310/1550 nm for single mode | | Data Rate | Single fiber: 1080p / 60 Hz (24-bits, 3.125 GB per sec) | | LED Indicators | 1 x Power/Link (Green) | | Operating Temperature | 32 to 122°F / 0 to 50°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Housing | Metal | | Dimensions | 5.6 x 4.1 x 1.2" / 14.2 x 10.4 x 3.0 cm | | Weight | 0.9 lb / 0.4 kg | | | | Package Weight | 3.65 lb | | Box Dimensions (LxWxH) | 11.2 x 7.0 x 4.0" |
