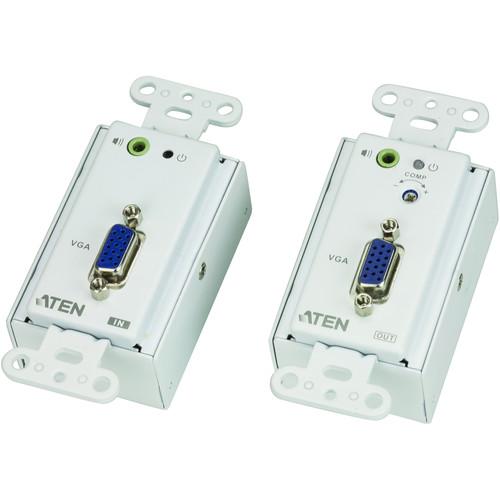

User Manual for ATEN VGA over CAT5 Wall Plate Extender Click to enlarge the picture
Contents of the user manual for the ATEN VGA over CAT5 Wall Plate
- Product category: KVM Extenders ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN KVM Extenders
|
User manual for the ATEN VGA over CAT5 Wall Plate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VGA over CAT5 Wall Plate Extender from Aten is comprised of one transmitter and one receiver wall plate which extend VGA and audio signals up to 492' using a CAT5e cable (not included). This extender supports popular widescreen formats and resolutions of up to 1920 x 1200 at 98.4' and 1280 x 1024 at 492.1'. Additional wall-plate pairs can be used to increase the transmission range or multiply the sources and/or displays in your setup.
The VGA over CAT5 Wall-Plate Extender can be powered at either the transmitter or receiver side, and uses a second CAT5e cable to transmit the power signal. The compact wall plate design allows for a neat and convenient installation. It is an ideal solution for function rooms, museums, and any environment that requires that equipment and cabling be kept hidden from public view. - Uses two CAT5e cables to connect the local and remote units (one transmits video & audio, the other power)
- Remotely powered from either the transmitter or receiver side using included power adapter
- Extends the distance between VGA source and VGA display up to 492.1'
- Adjustable gain control manually adjusts signal strength to compensate for distance
- Supports wide screen formats
- Decora-type design is easily configurable to fit various wall-plate frames
- LED indication of power sources / connection status
- Built-in 8 kV / 15 kV ESD protection
UPC: 672792004643 In the Box ATEN VGA over CAT5 Wall Plate Extender Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VGA over CAT5 Wall Plate Extender in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VE156 Specs | Video Input | 1 x 15-pin Sub-D female (blue) | | Input Impedance | 100 ohms | | Video Output | 1 x 15-pin Sub-D female (blue) | | Output Impedance | 100 Ohms | | Bandwidth | 300 MHz maximum | | Video Resolutions & Distances | 1920 x 1200 @ 98.4' (30 m)
1280 x 1024 @ 492.1' (150 m) | | Audio Input | 1 x Mini stereo jack female (green) | | Audio Output | 1 x Mini stereo jack female (green) | | Power Connector | 1 x Terminal block (green) | | Power Consumption | 9 VDC, 3.2 W | | Housing | Metal | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 - 80% RH, non-consensing | | Dimensions | Each Unit: 4.0 x 1.7 x 1.7" (10.1 x 4.4 x 4.3 cm) | | Weight | Each Unit: 6 oz (170 g) | | | | Package Weight | 1.35 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.4" |
Rating60% users recommend this product to others. And what about you?
This product has already been rated by 69 owners. Add your rating and experience with the product.
