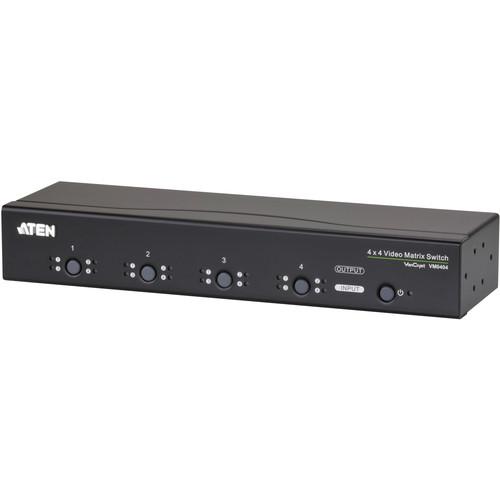

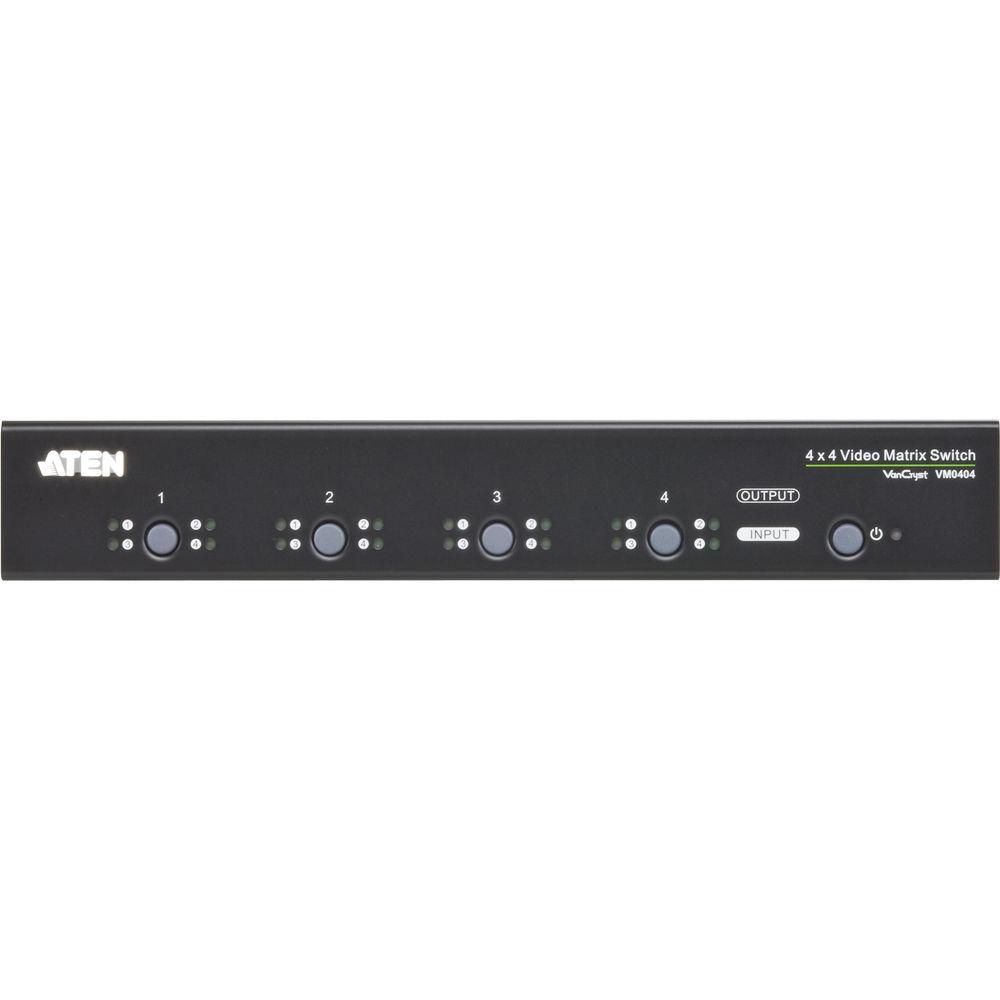

Product description The VM0404 4 x 4 Video Matrix Switch with Audio from ATEN allows you to connect up to four VGA source devices to four VGA monitors, displays, or projectors at the same time. It includes EDID mode selection for compatibility with displays, long signal range transmissions up to 98.4’, easy source/display switching, and matrix connections. The matrix switch allows each input to be independently connected to any or all outputs. It also allows audio and video inputs from each source device to be switched independently for flexibility and control in any multi-display audio/video installation. - Connects any of four VGA sources with audio to any of four outputs
- Enable transmissions up to 98.4'
- Easy switching between multiple sources and multiple displays
- Simple operation with front panel push buttons and RS-232 serial controller
- Supports video resolutions up to 1920 x 1440
- Supports video bandwidth up to 300 MHz
- EDID Expert selects the optimum EDID settings for smooth power-up and high quality display
- Built-in bi-directional RS-232 serial port for system control
- Independent switching of audio and video sources allows each input to be independently connected to any or all outputs for flexibility
UPC: 672792004353 In the Box ATEN VM0404 4 x 4 Video Matrix Switch with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM0404 4 x 4 Video Matrix Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

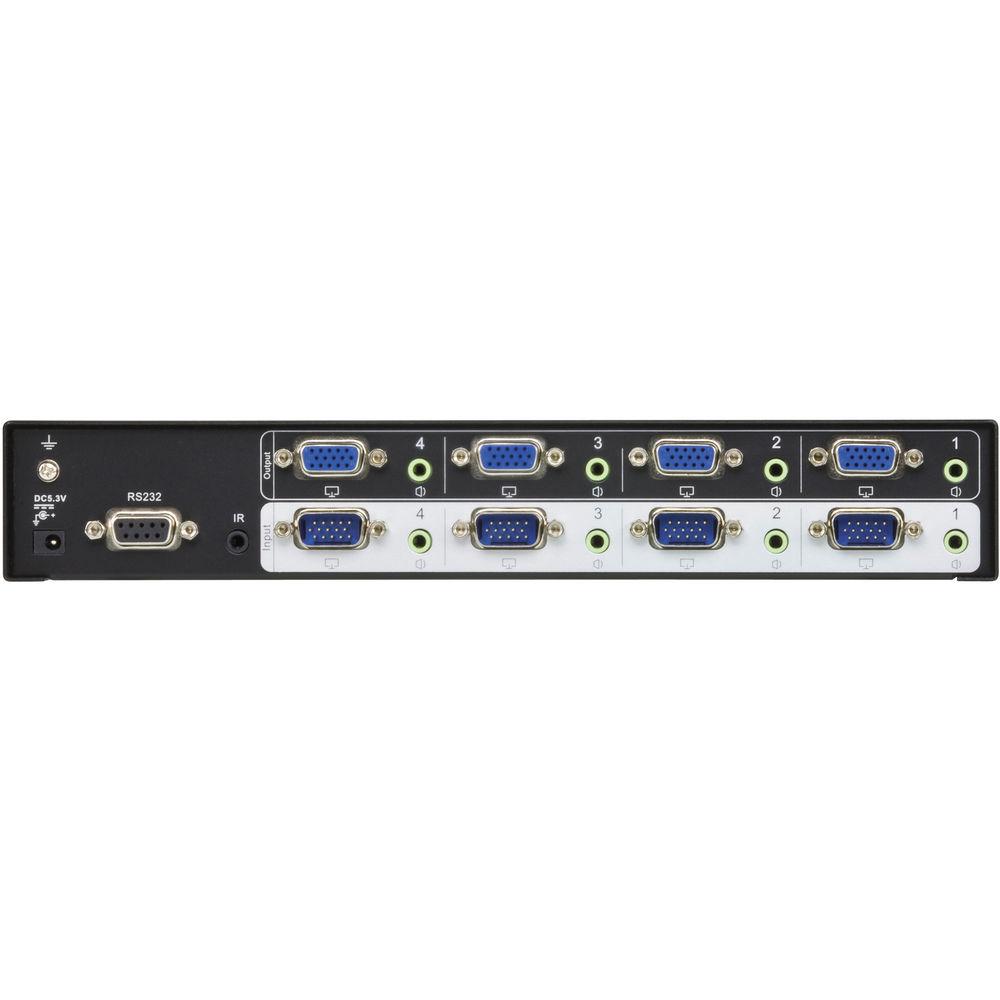

Technical parametersATEN VM0404 Specs | | | Video In | 4 x HDB-15 male (blue) | | Video Out | 4 x HDB-15 female (blue) | | Audio In | 4 x Mini stereo jack female (green) | | Audio Out | 4 x Mini stereo jack female (green) | | RS-232 | 1 x DB-9 female (black) | | IR Port | 1 x Mini stereo jack female (black) | | Power | 1 x DC Jack | | | | Port Selection | 4 x Push buttons | | Power | 1 x Push button | | | | Port | 16 x LED (green) | | Power | 1 x LED (green / orange) | | | | Bandwidth | 300 MHz | | Resolution | Up to 1920 x 1440 @ 60 Hz | | Computer Resolutions | VGA, SVGA, XGA, SXGA, UXGA, and WUXGA (1920 x 1200) | | | | Power Consumption | 5.3 VDC, 2.7 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Dimensions (L x W x H) | 10.2 x 2.9 x 1.6" (26.0 x 7.6 x 4.2 cm) | | Weight | 1.9 lb (0.9 kg) | | | | Package Weight | 2.85 lb | | Box Dimensions (LxWxH) | 11.3 x 7.0 x 4.1" |
