User Manual for ATEN VM0404H 4 x 4 HDMI Matrix Switch Click to enlarge the picture
Contents of the user manual for the ATEN VM0404H 4 x 4 HDMI
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VM0404H 4 x 4 HDMI contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

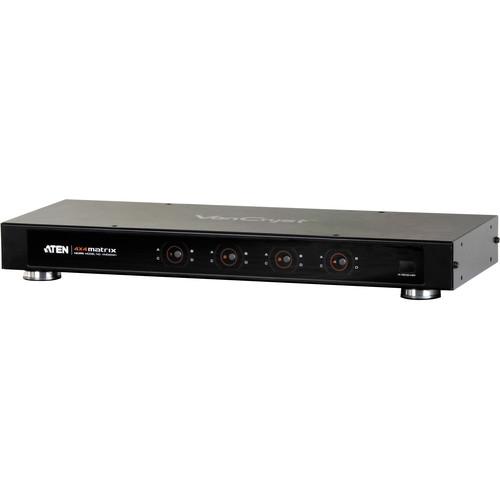

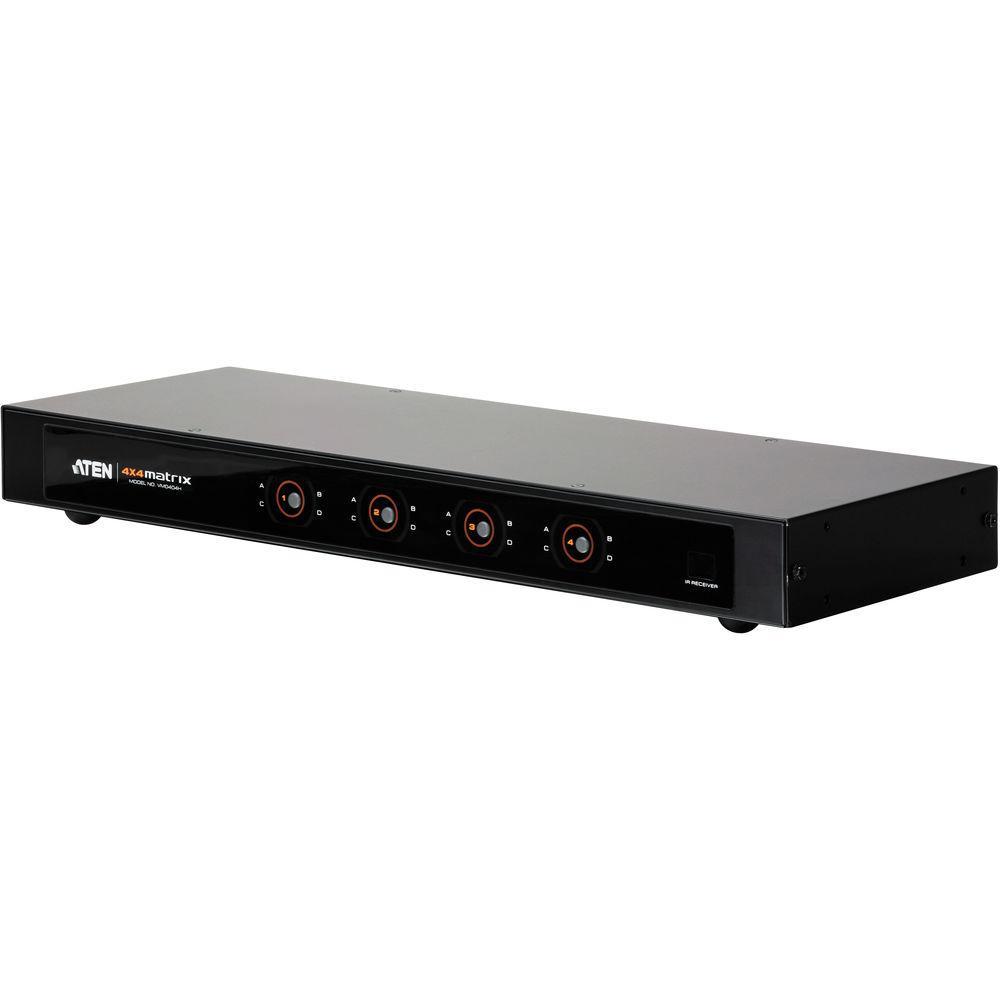

Product description The VM0404H 4 x 4 HDMI Matrix Switch from ATEN allows you to route high definition video and audio from any of the four HDMI inputs to any of four HDMI output ports. It allows you to connect HDMI devices such as an HD camcorder or satellite box, HD-DVD player, Blu-ray player, home theater PC, stand-alone streaming media player, or gaming consoles to four HDMI monitors, displays, projectors or TVs at the same time. The remote control and front panel push buttons allow you to quickly and easily cycle through HDMI sources and displays, while the front panel LEDs indicate the source device for each display at a glance. - Connects any of four HDMI input sources to any of four HDMI output ports
- Enables toggling between HDMI sources and displays using remote control or front panel push buttons
- Supports HDTV resolutions of 480p, 720p, 1080i, 1080p (1920 x 1080)
- Supports VGA, SVGA, SXGA, UXGA (1600 x 1200), and WUXGA (1920 x 1200) computer resolutions
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Supports HDMI (3D, Deep Color) and Dolby True HD and DTS HD Master Audio
- Long-distance transmission up to 65.6' (24 AWG)
- Built-in bi-directional RS-232 serial remote port for system control
- Power on detection enables automatic switching to the next powered-on source if the active HDMI source is powered off
- Capable of supporting a Full HD display with signaling rates up to 2.25 Gb/s
UPC: 672792002151 In the Box ATEN VM0404H 4 x 4 HDMI Matrix Switch IR Remote Control Unit Power Adapter Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM0404H 4 x 4 HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

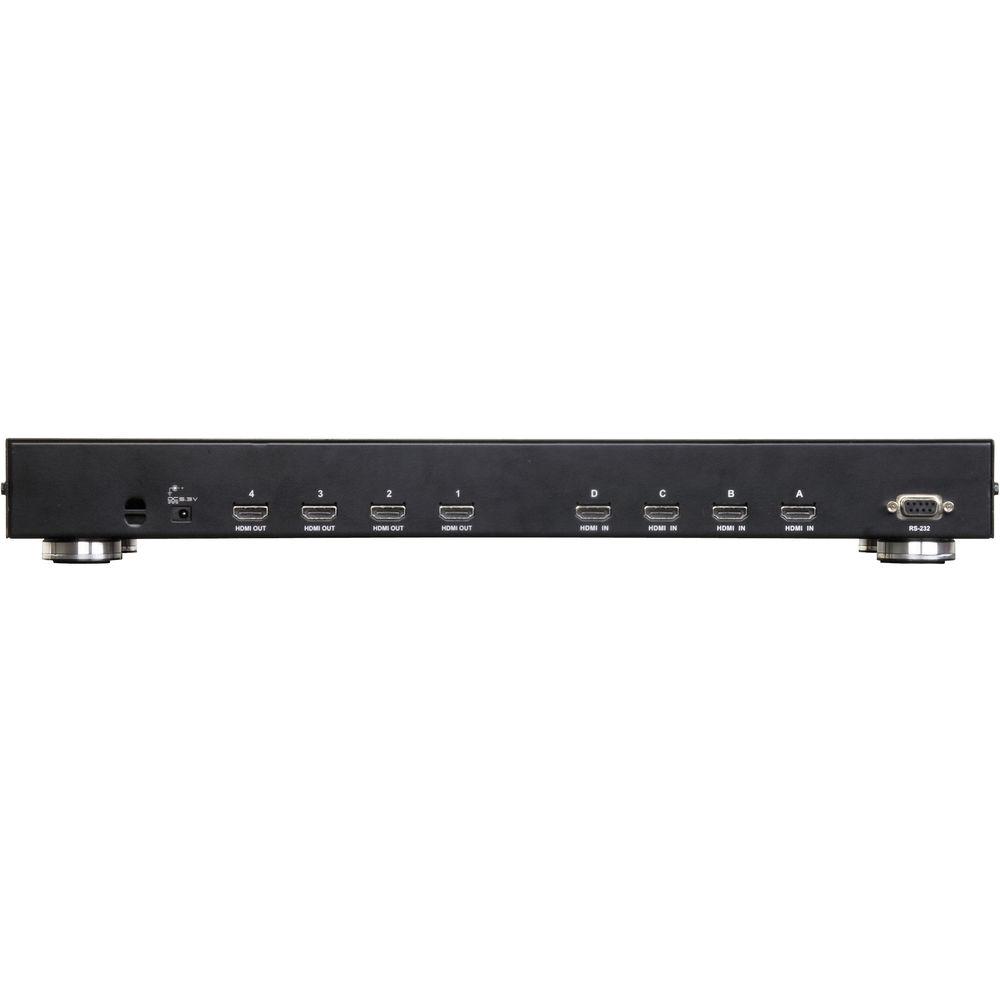

Technical parametersATEN VM0404H Specs | | | Video In | 4 x HDMI Type A female (black) | | Video Out | 4 x HDMI Type A female (black) | | RS-232 | 1 x DB-9 female (black) | | Power | 1 x DC Jack | | | | Port Selection | 4 x Push buttons | | LED Indicators | 16 x LED (green) | | | | Resolutions Supported | HDTV resolutions up to 1080p; computer resolutions up to WUXGA (1920 x 1200) | | | | Power Consumption | 5.3 VDC, 9 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Dimensions (L x W x H) | 17.2 x 6.2 x 1.7" (43.7 x 15.9 x 4.4 cm) | | Weight | 4.1 lb (1.9 kg) | | | | Package Weight | 6.1 lb | | Box Dimensions (LxWxH) | 21.3 x 9.4 x 4.8" |
