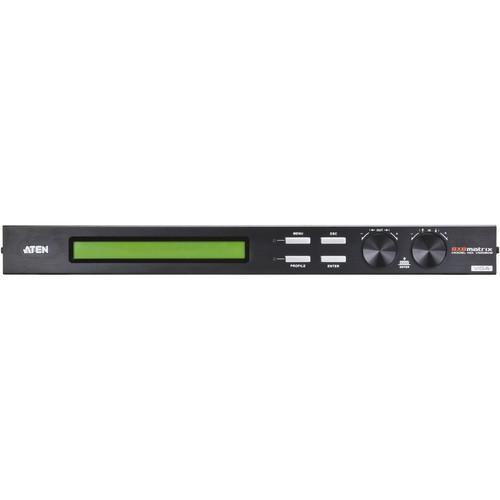

Product description The VM0808 8x8 VGA Video/Audio Matrix Switch from ATEN offers an easy way to route any of eight VGA source devices to any of eight VGA monitors, displays, or projectors. The VM0808 Matrix Switch allows each input to independently connect to any or all the outputs. The audio and video inputs from each source device can also be switched independently, thereby giving you maximum flexibility and control in any multi-display audio/video installation. The VM0808 also features EDID mode selection for compatibility, long-signal range, easy source/display switching, matrix connections, and power-on detection for source/display loss prevention. - Connects any of eight VGA source devices to any of eight VGA video and audio outputs
- Long-distance transmission supports up to 98.4 feet
- Easily switch between multiple sources and multiple displays
- Front-panel LCD display and push-buttons
- Features EDID Expert technology
- Supports up to 500 MHz of bandwidth
- Each input can be independently connected to any or all outputs for flexibility
- Power-on detection function automatically switches to the next powered-on source when video source is powered off
- Cascade additional VM0808 units, up to three levels
UPC: 672792003295 In the Box ATEN VM0808 8x8 VGA Video/Audio Matrix Switch IR Remote Control IR Receiver Power Cord Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM0808 8x8 VGA Video Audio Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM0808 Specs | Connectors | Video In: 8 x 15-pin VGA, male
Video Out: 8 x 15-pin VGA, female
Audio In: 8 x 3.5 mm mini jack, female
Audio Out: 8 x 3.5 mm mini jack, female
RS-232: 1 x DB-9, female
IR: 1 x 3.5 mm mini jack, female
Power: 1 x 3-prong AC socket | | Switches | In/Out: 2 x Tuner dials
Esc: 1 x Push-button
Menu: 1 x Push-button
Profile: 1 x Push-button
Enter: 1 x Push=button
Power: 1 x Rocker switch | | LEDs | 1 x Menu (green)
1 x Profile (green) | | Measurements | Video Input Impedance: 75 Ohms
Video Input Max Distance: 5.9' / 1.8 m
Video Output Impedance: 75 Ohms
Video Output Max Distance: 98.4' / 30.0 m
Max Bandwidth: 500 MHz
Max Resolution: 1920 x 1200
Max Distance: 98.4' / 30.0 m
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1 | | Power | 120 VAC, 7 W, 230 VAC. 8 W | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 17.2 x 6.6 x 1.7" / 43.7 x 16.8 x 4.4 cm | | Weight | 5.5 lb / 2.5 kg |
