User Manual for ATEN VM0808HA 8x8 4K HDMI Matrix Switch Click to enlarge the picture
Contents of the user manual for the ATEN VM0808HA 8x8 4K HDMI Matrix
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
|
User manual for the ATEN VM0808HA 8x8 4K HDMI Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

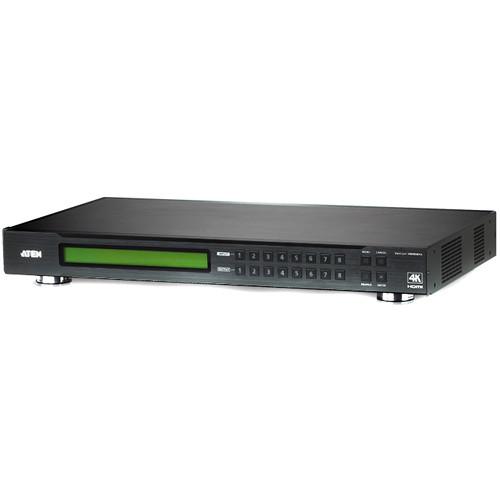

Product description The ATEN VM0808HA 8x8 4K HDMI Matrix Switch supports resolutions of UHD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0). This matrix switch is suitable for applications where the routing of 4K digital signals is required, such as in classrooms, auditoriums, department stores, and more.The VM0808HA matrix switch easily routes any of eight HDMI video sources to any of eight HDMI displays. It can be operated through front panel push buttons, IR remote, RS-232 control, and Ethernet connections, ensuring optimum viewing and control of high-definition video. Moreover, with a built-in web GUI, the unit is easily accessible via any web browser for remote configuration and customization of each HDMI source and display connection. - Connects any of eight HDMI video sources to any of eight HDMI displays
- Supports resolutions up to UHD 4K (3840 x 2160) and DCI 4K (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
- EDID Expert—selects optimum EDID settings for smooth power-up, high-quality display, and use of the suitable video resolution across different screens
- Multiple control methods—system management via front panel push buttons, IR remote, RS-232 control, and Ethernet connections (web GUI)
- Supports Dolby True HD and DTS HD Master audio
- Signaling rates up to 3.4 Gbps for uninterrupted 4K output
- HDMI (3D, Deep Color, 4K) and HDCP 2.2 compatible
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to a single remote control
- Supports ATEN's LockPro HDMI cable lock for secure connection
- Rack-mountable (1 RU) design
UPC: 672792403637 In the Box ATEN VM0808HA 8x8 4K HDMI Matrix Switch Power Cord IR Remote Control IR Receiver Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM0808HA 8x8 4K HDMI Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM0808HA Specs | | | Interfaces | 8 x HDMI Type A, female | | Impedance | 100 Ohms | | Maximum Distance | 6' (1.8 m) | | | | Interfaces | 8 x HDMI Type A, female | | Impedance | 100 Ohms | | Maximum Distance | 49' (15 m) | | | | Maximum Data Rate | 10.2 Gbps (3.4 Gbps per lane) | | Maximum Pixel Clock | 340 MHz | | Compliance | HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Consumer Electronics Control (CEC) | | Maximum Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0)
4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) | | Maximum Distance Supported | Up to 49' (15 m) | | | | RS232 | 1 x DB-9, female
Baud Rate: 19,200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No | | IR | 1 x Mini stereo jack, female | | EDID | EDID Mode: Default / Port 1 / Remix / Customized (EDID Wizard Support) | | | | Connector | 1 x 3-prong AC socket | | Power Input Rating | 100 to 240 VAC, 50 to 60 Hz, 1 A | | Power Consumption | 24 W at 120 VAC
24.4 W at 230 VAC | | | | Operating Temperature | 32 to 104°F (0 to 40°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions | 17.0 x 10.3 x 1.7" (43.2 x 26.2 x 4.4 cm) | | Weight | 8.5 lb (3.9 kg) | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 20.2 x 13.7 x 6.5" |
