User Manual for ATEN VM3909H 9x9 HDMI HDBaseT-Lite Matrix Switch Click to enlarge the picture
Contents of the user manual for the ATEN VM3909H 9x9 HDMI HDBaseT-Lite Matrix
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VM3909H 9x9 HDMI HDBaseT-Lite Matrix contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

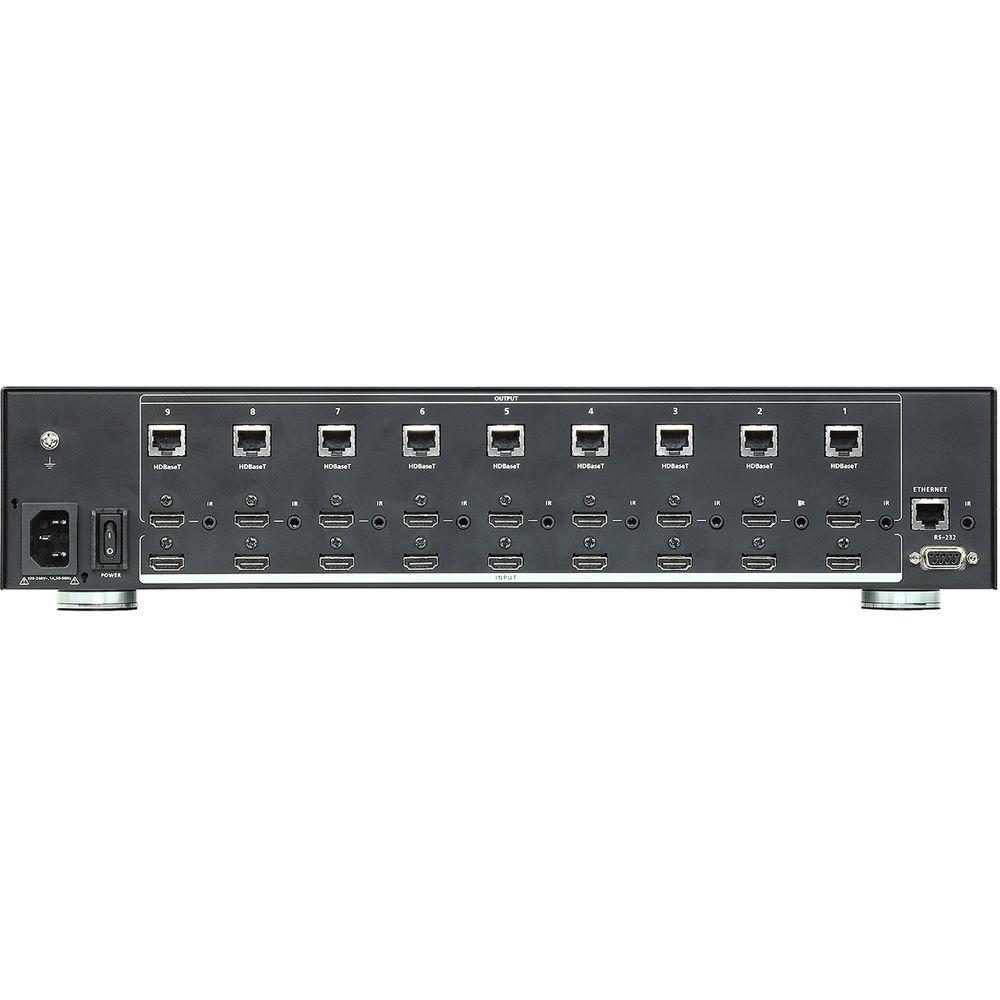

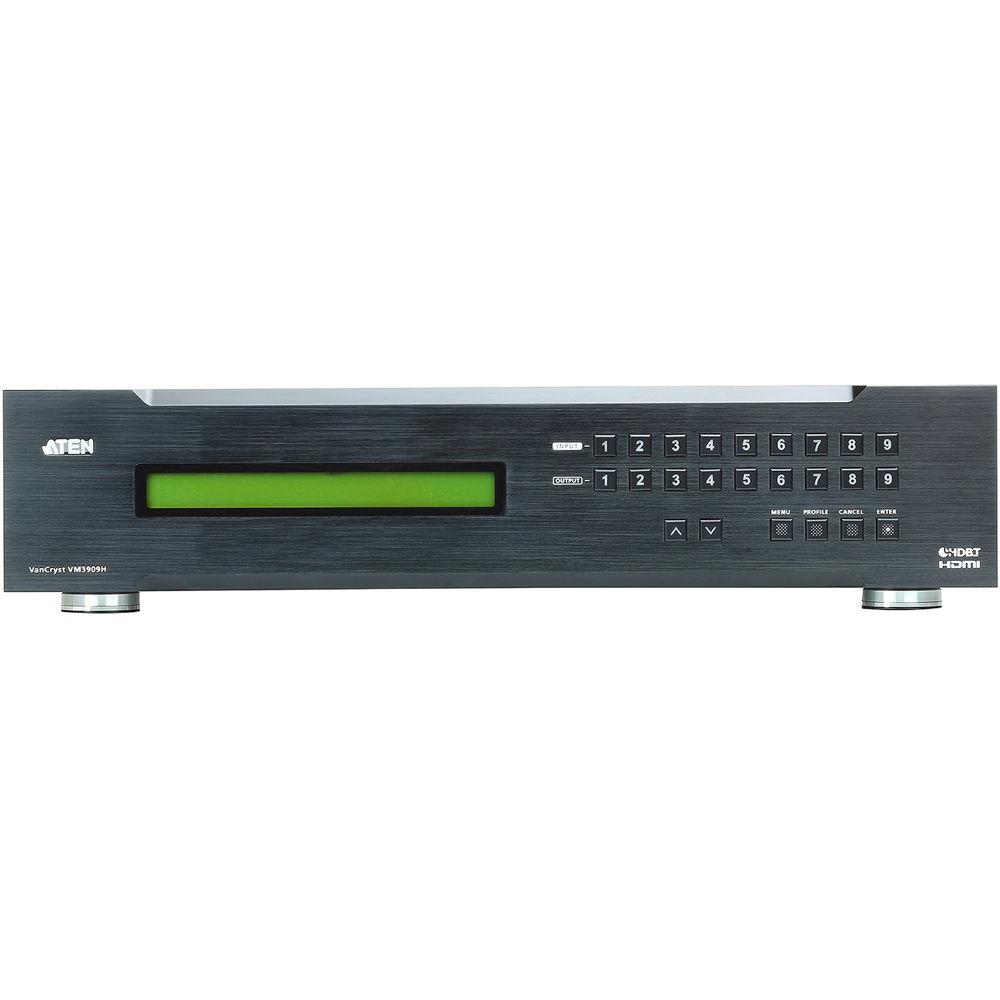

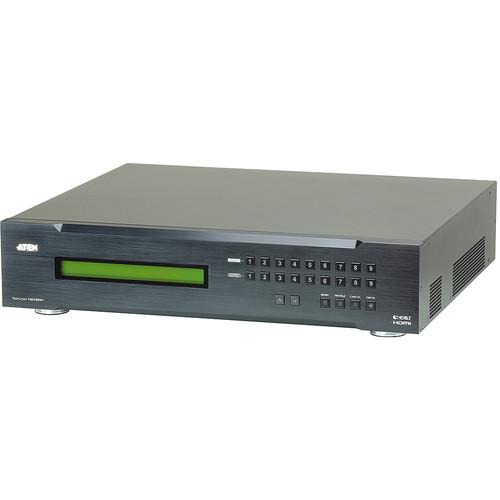

Product description The VM3909H 9x9 HDMI HDBaseT-Lite Matrix Switch from ATEN extends uncompressed 4K and Full HD digital video, audio, IR, and power via HDBaseT technology through a single Cat6a cable up to 229.7 ft. When combined with VE805R receivers (available separately), it supports both ATEN Seamless Switch technology and Video Wall functionality. The Seamless Switch technology employs an FPGA graphics processor to ensure continuous video streaming, real-time control, and stable signal transmission across all sources. The Video Wall functionality allows you to create 18 video wall profiles for custom screen layouts through an easy-to-use web interface. - Supports nine HDMI inputs and nine mirrored HDMI and HDBaseT outputs
- HDBaseT Connectivity connects HDMI displays over a long distance via one Cat5e/6/6a cable
- HDBaseT anti-jamming resists signal interference during high-quality video transmission
- Power over HDBaseT (POH) supplies power over a long distance from the switch to a receiver over a single Cat5e/6/6a cable
- The ATEN FPGA engine incorporates Seamless Switch Technology which unifies the video formats to provide continuous video streams, realtime switching, and stable signal transmissions
- Video Wall allows you to create custom video wall layouts via intuitive web GUI
- EDID Expert selects optimum EDID settings for smooth power-up, high-quality display, and use of the best video resolution across different screens
- Multiple control methods which include system management via front panel buttons, IR, RS-232, and Ethernet (Telnet/web GUI) connections
- Bidirectional IR channel ports support full frequency IR signals from 30 to 60 kHz (the included IR receiver cable only supports 30 to 56 kHz)
- Supports ATEN's LockPro HDMI cable lock for securing HDMI cables to the device
- Rack-mountable (2 RU design)
UPC: 672792006654 In the Box ATEN VM3909H 9x9 HDMI HDBaseT-Lite Matrix Switch Mounting Kit Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM3909H 9x9 HDMI HDBaseT-Lite Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM3909H Specs | | | Interface | 9 x HDMI Type A, female | | Impedance | 100 Ohms | | Maximum Distance | 5.9' (1.8 m) | | | | Interface | 9 x HDMI Type A, female
9 x RJ-45, female | | Impedance | 100 Ohms | | Maximum Distance | HDMI: Up to 49.2' (15.0 m)
HDBaseT Cat5e/6: 4K Up to 114.8' (35 m) / 1080p up to 196.9' (60 m)
HDBaseT Cat6a: 4K Up to 131.2' (40 m) / 1080p up to 229.7' (70 m) | | | | Maximum Data Rate | 10.2 Gb/s (3.4 Gb/s per lane) | | Maximum Pixel Clock | 340 MHz | | Compliance | HDMI (3D, Deep Color, 4K)
HDCP 1.4 compatible
HDBaseT compatible
Consumer Electronic Control (CEC) | | Maximum Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60 Hz (4:2:0)
Up to 4096 x 2160 / 3840 x 2160 @ 30 Hz (4:4:4) | | Maximum Distance | 229.7' (70 m) | | | | RS-232 | Connector: 1 x DB-9, female
Baud Rate: 19200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No | | Channel | Infrared:
9 x 3.5 mm Mini stereo jack, female
30 to 60 kHz Full range transmission | | Ethernet | 1 x RJ-45, female | | | | EDID | EDID Mode: Default / port 1 / remix / customized | | | | Connectors | 1 x Three-Prong AC socket | | I/P Rating | 100 to 240 VAC; 50 to 60 Hz; 1 A | | Consumption | 110 VAC, 134.4 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, Non-condensing | | | | Housing | Metal | | Dimensions (L x W x H) | 17.0 x 15.1 x 3.5" (43.2 x 38.2 x 8.8 cm) | | Weight | 16.2 lb (7.3 kg) | | | | Package Weight | 21.0 lb | | Box Dimensions (LxWxH) | 22.7 x 20.1 x 7.1" |
