User Manual for ATEN VM5808D 8x8 DVI Matrix Switch with Scaler Click to enlarge the picture
Contents of the user manual for the ATEN VM5808D 8x8 DVI Matrix Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VM5808D 8x8 DVI Matrix Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

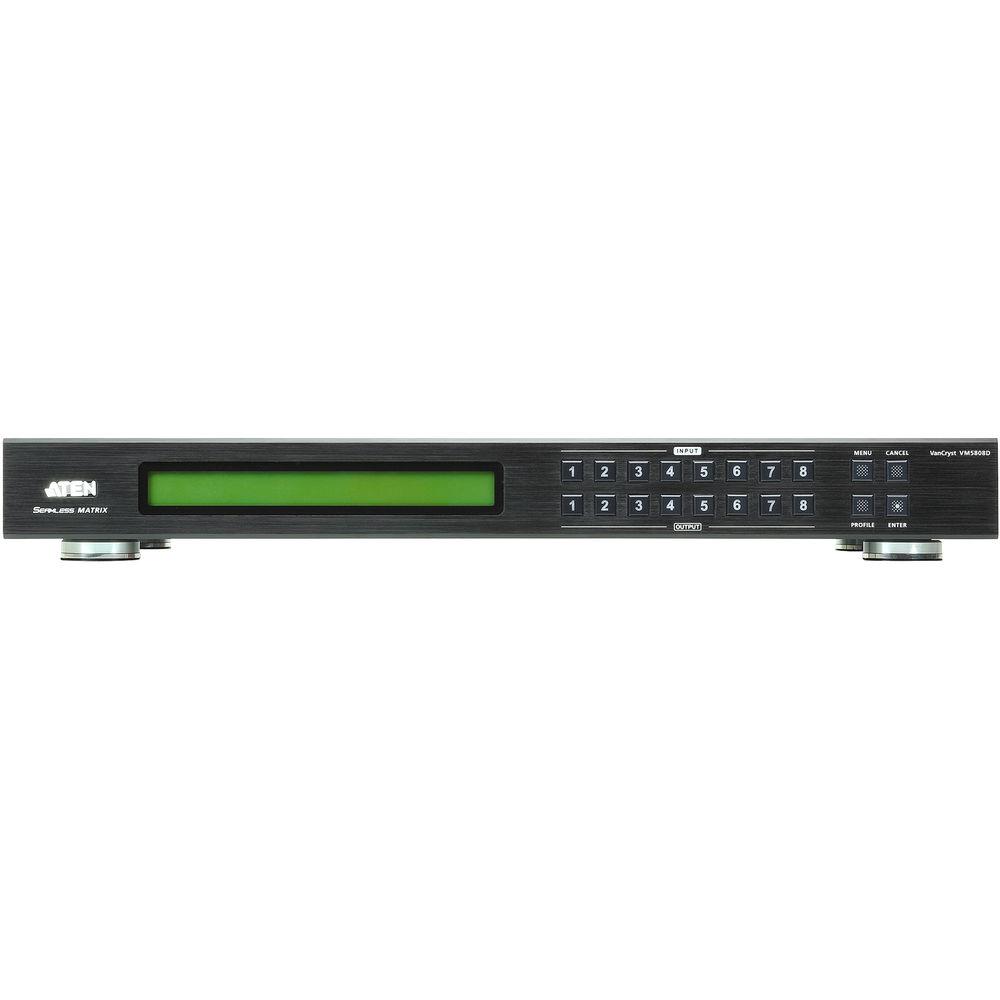

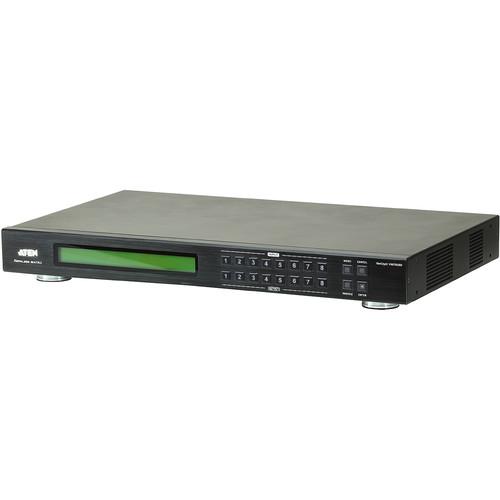

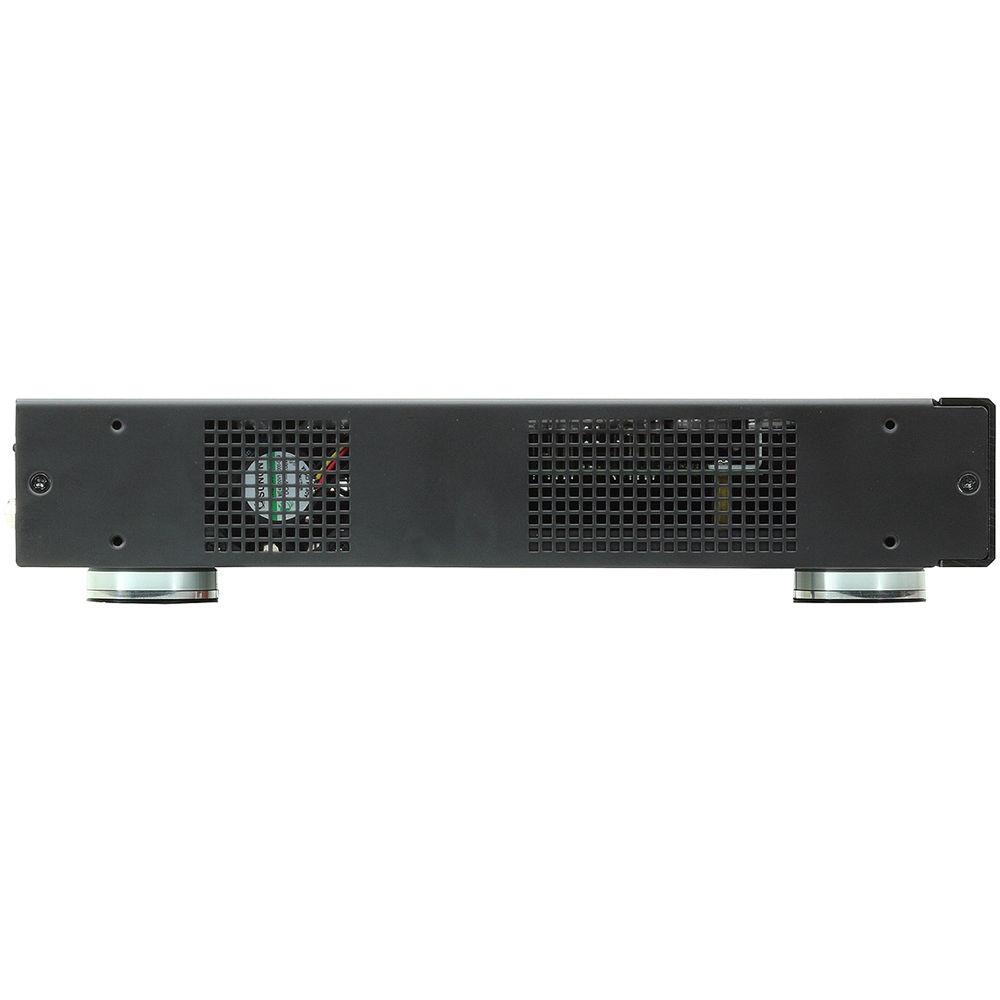

Product description The VM5808D 8x8 DVI Matrix Switch with Scaler from Aten is designed to route any of eight DVI video sources to any of eight DVI displays. It also features a front panel LCD for easily viewing all port connections. A built-in scaler enables the switch to convert various input resolutions into various output display resolutions, providing maximum video and picture quality to all displays. The matrix switch's design includes FPGA architecture for seamless switching, continuous video streams, real-time control, and stable signal transmissions. The switch can integrate video wall functionality with an easy-to-use web GUI, allowing you to create 16 connection profiles that can be customized into different video wall layouts. UPC: 672792006616 In the Box ATEN VM5808D 8x8 DVI Matrix Switch with Scaler IR Remote Control IR Receiver Mounting Kit Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM5808D 8x8 DVI Matrix Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

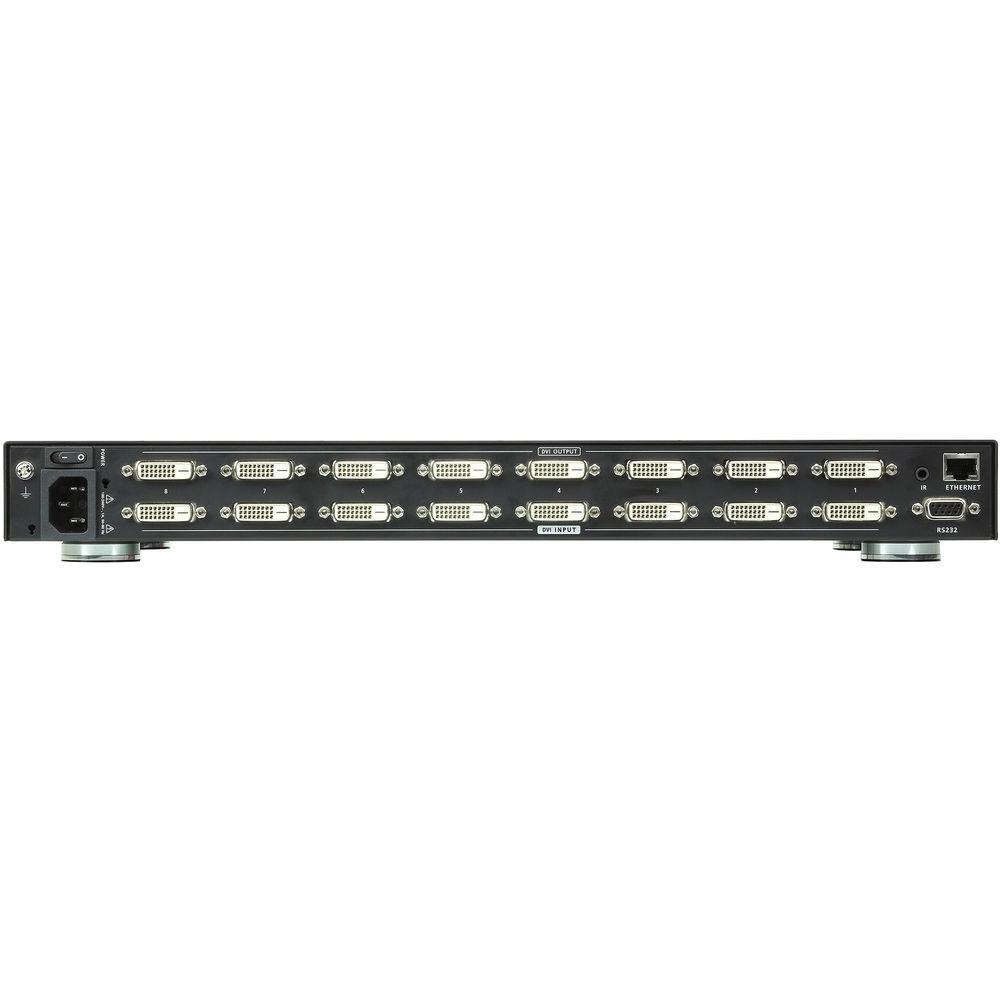

Technical parametersATEN VM5808D Specs | Video Input | Interface: 8 x DVI-D Type A female
Impedance: 100 ohms
Maximum distance: 5.9' / 1.8 m | | Video Output | Interface: 8 x DVI-D Type A female
Impedance: 100 ohms
| | Video | Maximum data rate: 6.75 GB per sec
Maximum pixel clock: 225 MHz
Compliance: HDCP 1.4 compatible
Maximum resolution: up to 1920 x 1200
Maximum distance: up to 16.4' / 5.0 m | | Connectors | RS-232: 1 x DB-9 female
Ethernet: 1 x RJ-45 female
IR: 1 x mini stereo jack female | | Baud Rate & Protocol | Baud rate: 19200
Data bits: 8, stop bits: 1
Parity: No
Flow control: No | | EDID | Settings: Default, port 1, remix, customized | | Power | Connector: 1 x 3-prong AC socket
I/P Rating: 100 to 240 VAC, 50 to 60 Hz, 1.0 A
Consumption: 120 VAC, 56.4 W, 230 VAC, 55.9 W | | Operating Temperature | 32 to 122°F / 0 to 50°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Housing | Metal | | Dimensions | 17.02 x 10.23 x 1.73" / 43.24 x 25.98 x 4.40 cm | | Weight | 9.4 lb / 4.3 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 20.4 x 13.6 x 6.4" |
