Product description - ATEN VM5808H HDMI Matrix Switch with Scaler & Advanced EDID features

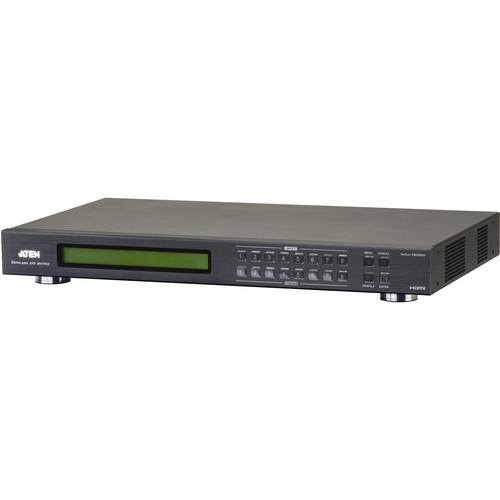

The VM5808H 8x8 HDMI Matrix Switch with Scaler from Aten is designed to route any of eight HDMI video sources to any of eight HDMI displays. It also features a front panel LCD for easily viewing all port connections. A built-in scaler enables the switch to convert various input resolutions into various output display resolutions, providing maximum video and picture quality to all displays. The matrix switch's design includes FPGA architecture for seamless switching, continuous video streams, real-time control, and stable signal transmissions. The switch can integrate video wall functionality with an easy-to-use web GUI, allowing you to create 16 connection profiles that can be customized into different video wall layouts. UPC: 672792004636 In the Box ATEN VM5808H 8x8 HDMI Matrix Switch with Scaler IR Remote Control IR Receiver Mounting Kit Power Cord Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM5808H 8x8 HDMI Matrix Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM5808H Specs | Video Input | Interface: 8 x HDMI Type A female
Impedance: 100 ohms
Maximum distance: 5.9' / 1.8 m | | Video Output | Interface: 8 x HDMI Type A female
Impedance: 100 ohms
Maximum distance: 49.2' / 15.0 m | | Video | Maximum data rate: 6.75 GB per sec
Maximum pixel clock: 225 MHz
Compliance: HDMI (3D, deep color), HDCP 1.4 compatible, CEC
Maximum resolution: up to 1080p
Maximum distance: up to 49.2' / 15.0 m | | Connectors | RS-232: 1 x DB-9 female
IR: 1 x mini stereo jack female | | Baud Rate & Protocol | Baud rate: 19200
Data bits: 8, stop bits: 1
Parity: No
Flow control: No | | EDID | Settings: Default, port 1, remix, customized | | Power | Connector: 1 x 3-prong AC socket
I/P Rating: 100 to 240 VAC, 50 to 60 Hz, 1.0 A
Consumption: 120 VAC, 60 W, 230 VAC, 62 W | | Operating Temperature | 32 to 122°F / 0 to 50°C
Humidity: 0-80% RH, non-condensing | | Storage Temperature | -4 to 140°F / -20 to 60°C
Humidity: 0-80% RH, non-condensing | | Housing | Metal | | Dimensions | 17.02 x 10.33 x 1.73" / 43.24 x 26.23 x 4.40 cm | | Weight | 8.9 lb / 4.0 kg | | | | Package Weight | 12.65 lb | | Box Dimensions (LxWxH) | 20.3 x 13.8 x 6.4" |
