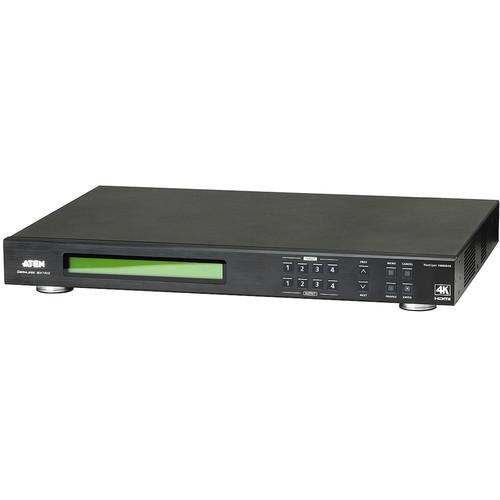

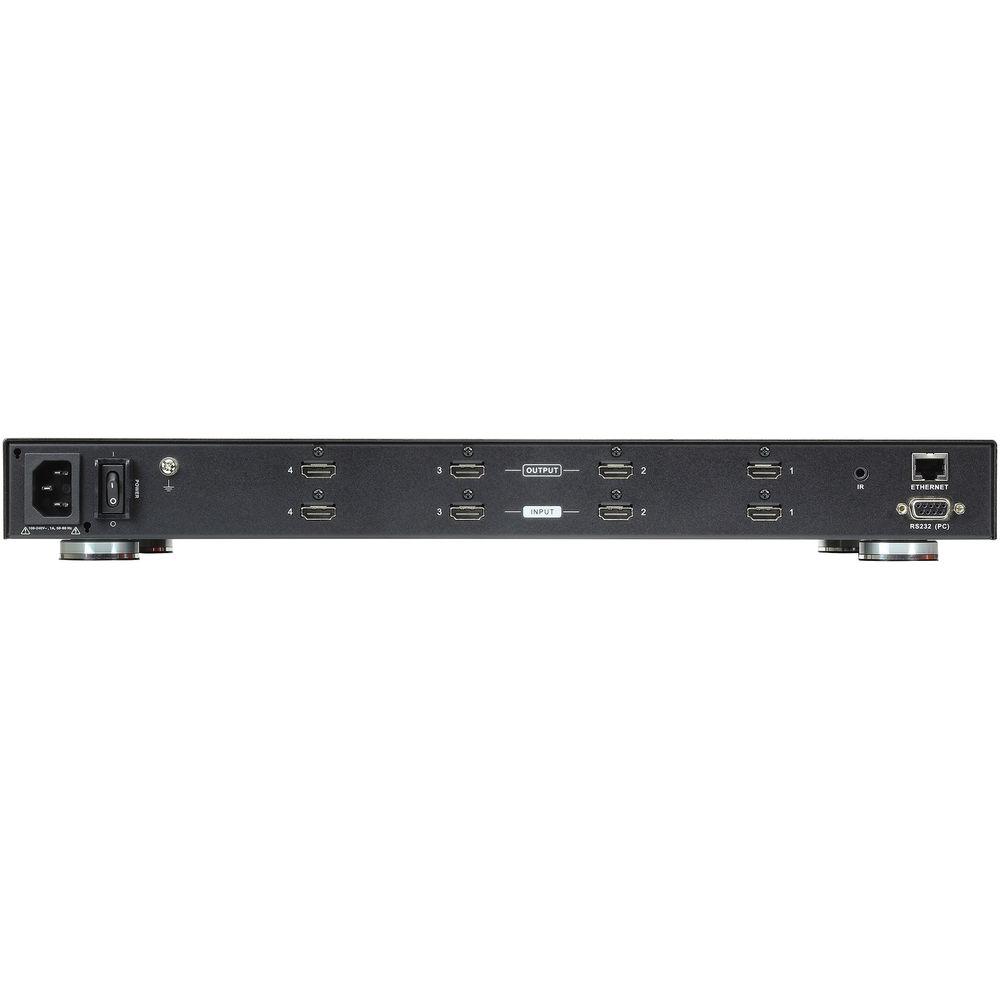

Product description The VM6404H 4x4 4K HDMI Matrix Switch with Scaler from ATEN offers a way to route any of four HDMI video sources to any of four HDMI displays, with a quick view of all port connections via the front panel LCD. It features powerful HD processing, which helps produce 4K resolution across all four connected displays.The VM6404H supports 4K resolution (3840 x 2160 and 4096 x 2160) at 60 Hz, HDMI 2.0, and HDCP 2.2. It features seamless switching that employs an FPGA matrix architecture that ensures continuous video streams, real-time control, and stable signal transmissions. With a built-in high-performance scaler, the VM6404H can easily convert various input resolutions into various output display resolutions, giving viewers the best possible video and picture quality across all displays. The switch integrates video wall functionality with an easy-to-use web GUI that lets you create eight connection profiles that can be customized into different video wall layouts.The switch provides a suitable solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently set up in multiple locations, such as stage presentations, digital classrooms, video conference rooms, or any other installation that requires real-time reporting. - Connects any of four HDMI sources to any of four HDMI displays

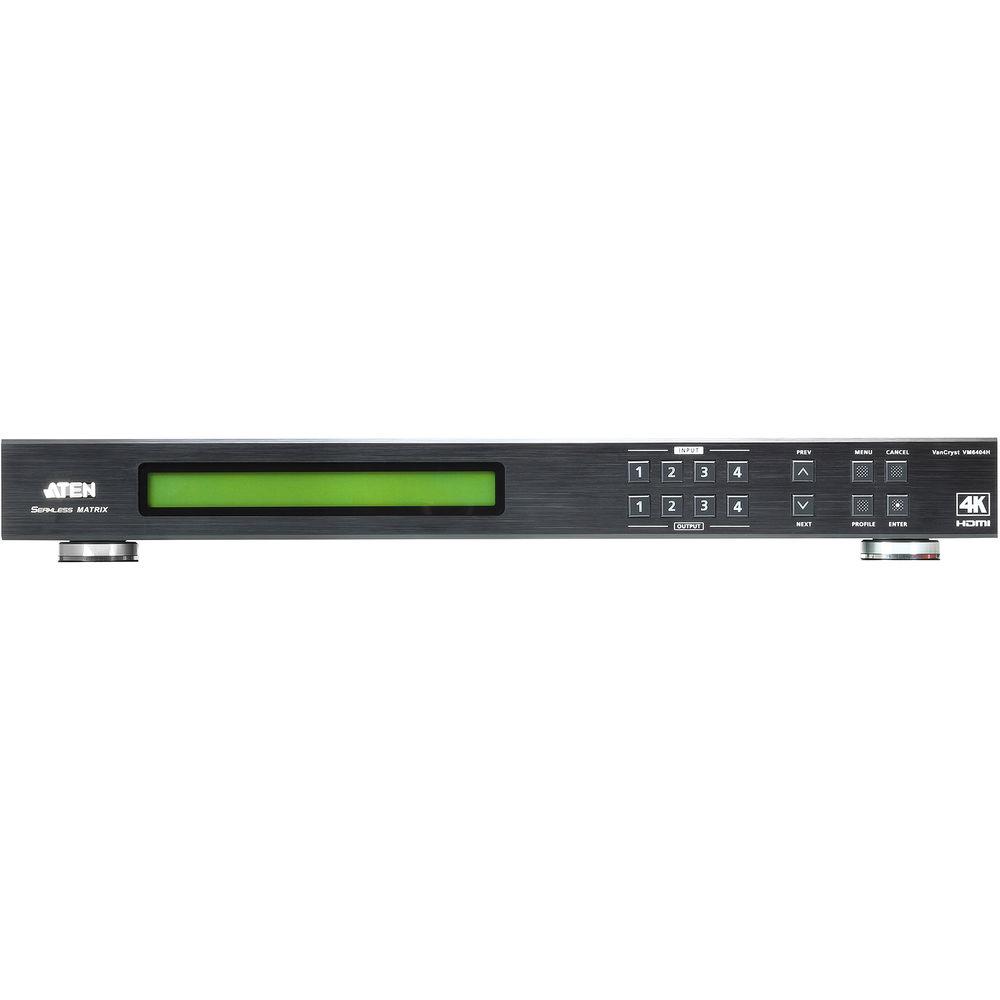

- Front panel configuration via LCD display, buttons, and IR remote control
- System operation via bidirectional RS-232 serial controller, Ethernet, Telnet, IR remote control, front-panel buttons, GUI
- Built-in scaler on each output port converts input resolution into the display's native resolution
- Supports scaling 4K resolutions (3840 x 2160 and 4096 x 2160) up or down
- Seamless Switching employs an FPGA matrix architecture that unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions 1
Please Note: When enabled, the video output will not display 3D, Deep Color, or interlaced (1080i) resolutions. These can be enabled by disabling Seamless Switching. close - Features up to eight video wall profiles for custom screen layouts via point-and-click web GUI
- Configures optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
- Firmware upgradeable and rack-mountable (1 RU) design
UPC: 672792006258 In the Box ATEN VM6404H 4x4 4K HDMI Matrix Switch with Scaler IR Remote Control Mounting Kit Power Cord IR Receiver Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM6404H 4x4 4K HDMI Matrix Switch with Scaler in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM6404H Specs | | | Interface | 4 x HDMI type A, female | | Impedance | 100 Ohms | | Maximum Distance | 5.9' (1.8 m) | | | | Interface | 4 x HDMI type A, female | | Impedance | 100 Ohms | | Maximum Distance | 4902' (15 m) | | | | Maximum Data Rate | 10.2 Gbps (3.40 Gbps per lane) | | Maximum Pixel Clock | 340 MHz | | Compliance | HDMI (3D, Deep Color, 4K)
HDCP 2.2 compatible
Consumer Electronics Control (CEC) | | Maximum Resolution | 3840 x 2160 @ 30 Hz (4:4:4)
3840 x 2160 @ 60 Hz (4:2:0)
4096 x 2160 @ 30 Hz (4:4:4)
4096 x 2160 @ 60 Hz (4:2:0) | | EDID Modes | Default / Port 1 / Remix / Customized, via EDID wizard | | | | RS-232 Connector | 1 x DB-9, female
Baud Rate: 19,200
Data Bits: 8
Stop Bits: 1
Parity: No
Flow Control: No
IR: 1 x 3.5 Mini stereo jack, female | | | | Connectors | 1 x Three-prong AC socket | | Voltage | 100 to 240 VAC, 50 to 60 Hz, 1.0 A | | Consumption | 120 VAC, 47.6 W
230 VAC, 47.5 W | | | | Temperature | Operating: 32 to 122° (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, Non-condensing | | | | Housing | Metal | | Regulations | WEEE, RoHS | | Dimensions (L x W x H) | 17.0 x 12.1 x 1.7" (43.2 x 30.7 x 4.4 cm) | | Weight | 10.4 lb (4.7 kg) | | | | Package Weight | 13.5 lb | | Box Dimensions (LxWxH) | 22.6 x 18.4 x 6.0" |
