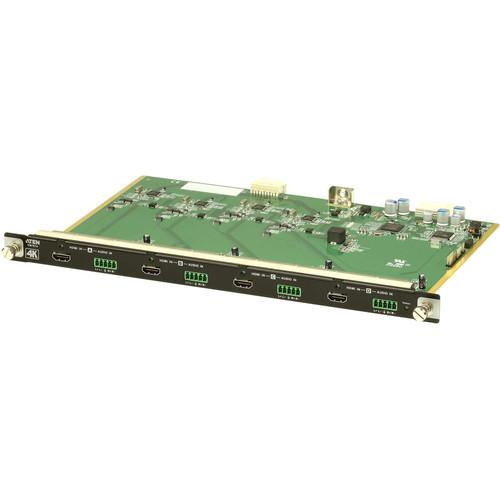

Product description Provided by third party: The VM7814 is a 4K HDMI input board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM7814 is equipped with 4 stereo audio input ports that allow stereo audio embedding. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.
- Key Features
-
- Compatible with the VM1600 / VM3200; mix and match with modular I/O boards of any type for optimum flexibility
- Superior video quality ? HDTV resolutions of 480p, 720p, 1080i, and 1080p (1920 x 1080); VGA, SVGA, SXGA, UXGA, WUXGA (1920x1200), and 4K2K @ 60Hz (4:2:0)
- Audio-enabled, stereo audio can be embedded
- EDID Expert ? selects optimum EDID settings for smooth power-up and the highest quality display
- HDMI (3D, Deep Color); HDCP 2.2 Compatible
- Cable Quality Tester ? examines the HDMI cable quality
UPC: 672792008177 In the Box ATEN VM7814 4-Port 4K HDMI Input Board ATEN VanCryst VM7814 4K HDMI Input Board 4 x terminal blocks, 4 x HDMI LockPro Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VM7814 4-Port 4K HDMI Input Board in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VM7814 Specs | | | Device Type | Expansion module | | Form Factor | Plug-in module | | | | Ports | HDMI x 4 | | Connectivity Technology | Wired | | Data Link Protocol | HDMI | | Data Transfer Rate | 10.2 Gbps | | Performance | Maximum data rate: 10.2 Gbps
Maximum data rate (per lane): 3.4 Gbps
Pixel clock 340 MHz | | Status Indicators | Port status, status | | Features | HDCP compliant, 3D support, 4K resolution support, cable test, EDID Expert, Full HD (1920 x 1080) streaming video support, HD (1280 x 720) streaming video support | | Compliant Standards | HDCP 2.2 | | | | Interfaces | 4 x HDMI input - 19 pin HDMI Type A
4 x audio line-in - 5 pin terminal block | | | | Included Accessories | 4 x terminal blocks, 4 x HDMI LockPro | | Compliant Standards | RoHS, CEC | | | | Power Consumption Operational | 4.45 Watt | | | | Width | 13.9 in | | Depth | 9.4 in | | Height | 0.9 in | | Weight | 19.75 oz | | | | Service & Support | Limited warranty - 3 years | | | | Min Operating Temperature | 32
