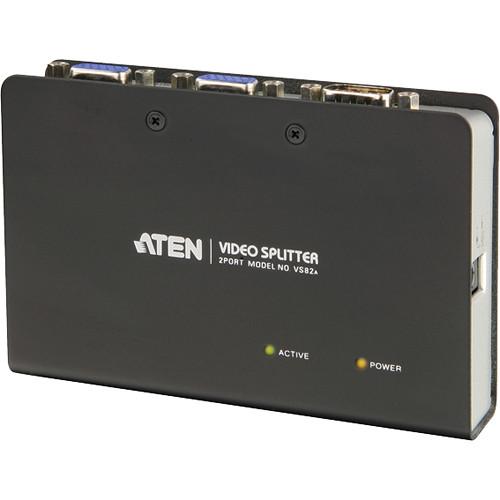

Product description The VS-82 2-Port Video Splitter from ATEN is a signal boosting device that can duplicate the video signal from any analog monitor source to two outputs. The splitter can enhance video signals up to a broadcasting distance of 213' (65m). Using a high density HDB-15 male/female VGA cable (2L-2401, not included), the unit can be cascaded up to three levels, making them suitable for public broadcast systems. This splitter can be used in situations like broadcasting video information to public, monitoring challenging work environments from safe locations, and classroom or company training facilities. - Enhances video signal for distance up to 213' (65m)
- Supports DDC, DDC2, DDC2B (on port 1 only)
- Suitable for public broadcasting, remote monitoring, and classroom or training facilities
UPC: 672792151323 In the Box ATEN VS-82 2-Port Video Splitter 9 VDC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS-82 2-Port Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS-82 Specs | Maximum Number of Displays | 2 | | Connectors | Video In: 1 x HDB-15 male (blue)
Video Out: 2 x HDB-15 female (blue)
Power: 1 x DC jack | | Impedance | 75 ohms | | Ability to Cascade | Cascadable to 3 levels Theoretically, there is no limit to the number of splitters that can be cascaded, but the quality of the signal will deteriorate as you cascade further and further away from the source. | | LEDs | 1 x LED (orange) for power | | Video | Bandwidth: 250 MHz
Resolution: 1920 x 1440 @ 75 Hz If you connect a DDC type monitor to video out (port 1) then all other monitors must be able to support the highest resolution that the DDC monitor can provide. | | Signal Range | Up to 210' (65 m) | | Requirements | Computers with VGA card, high density HDB-15 male/female VGA cables | | Power Consumption | 9 VDC, 1.35 W (maximum) | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80%, non-condensing | | Housing | Plastic | | Dimensions | 4.51 x 3.44 x 1.31" (11.45 x 8.75 x 3.33 cm) | | Weight | 0.31 lb (0.14 kg) | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.4" |
