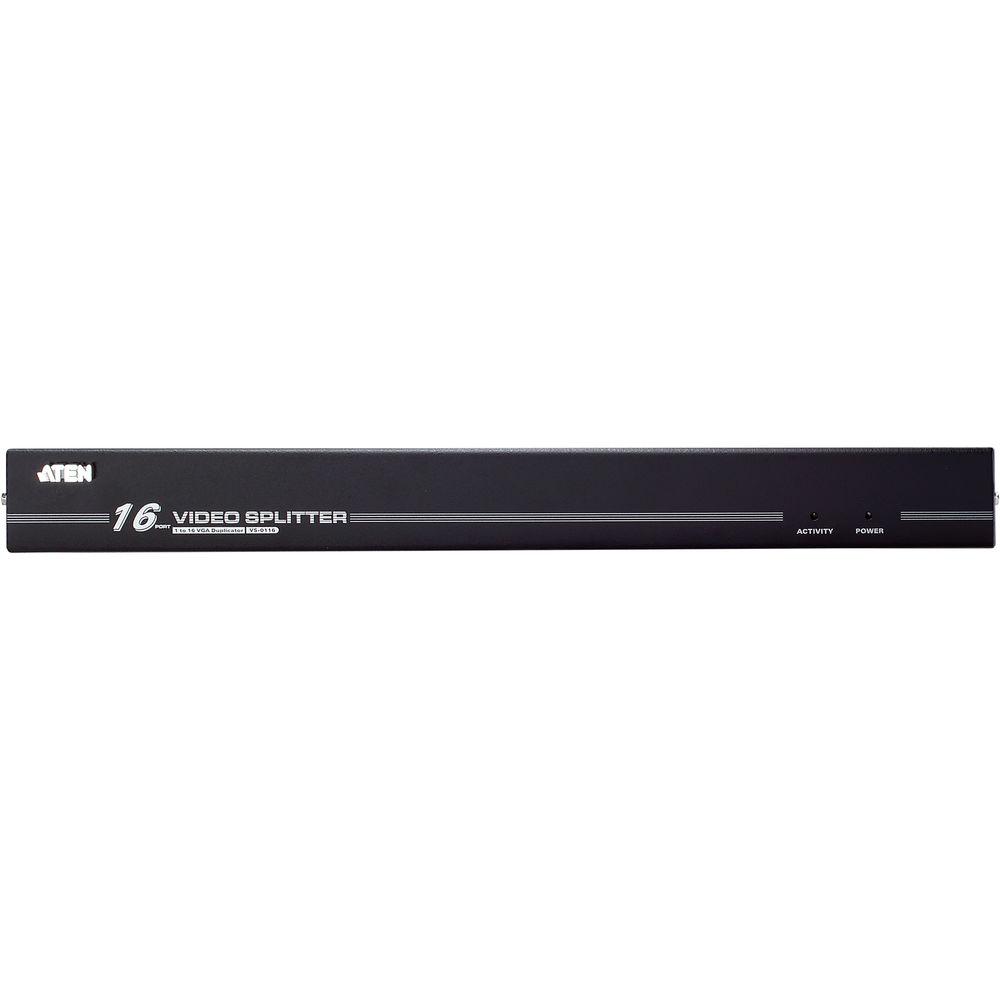

User Manual for ATEN VS0116 16-Port Video Splitter with Audio Click to enlarge the picture
Contents of the user manual for the ATEN VS0116 16-Port Video Splitter with
- Product category: Distribution Amplifiers (DA's) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Distribution Amplifiers (DA's)
 |
User manual for the ATEN VS0116 16-Port Video Splitter with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

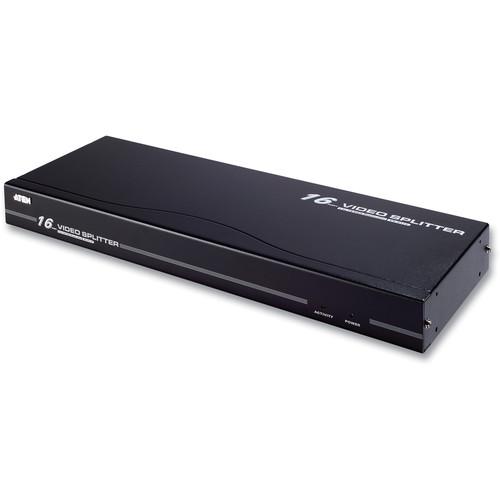

Product description The VS0116 16-Port Video Splitter with Audio from ATEN is designed to transfer video and audio inputs from a single source and route them to up to 16 output devices. Cascadable to up to three levels, the splitter can be used to provide hundreds of video signals. The splitter is housed in metal casing and measures 1U in size for enterprise use and storage. - Allows 1 video input to be displayed on 16 video outputs
- Cascadable up to 3 levels
- Supports a bandwidth up to 250 MHz
- 1U in size for convenient enterprise use
- Supports VGA, XGA, SVGA, UXGA and multisync monitors
- Supports Windows 2000, Windows XP, Linux, Mac, and Sun operating systems
UPC: 672792151446 In the Box ATEN VS0116 16-Port Video Splitter with Audio Power Adapter VGA/Audio Cable (6') Rack Mount Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS0116 16-Port Video Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

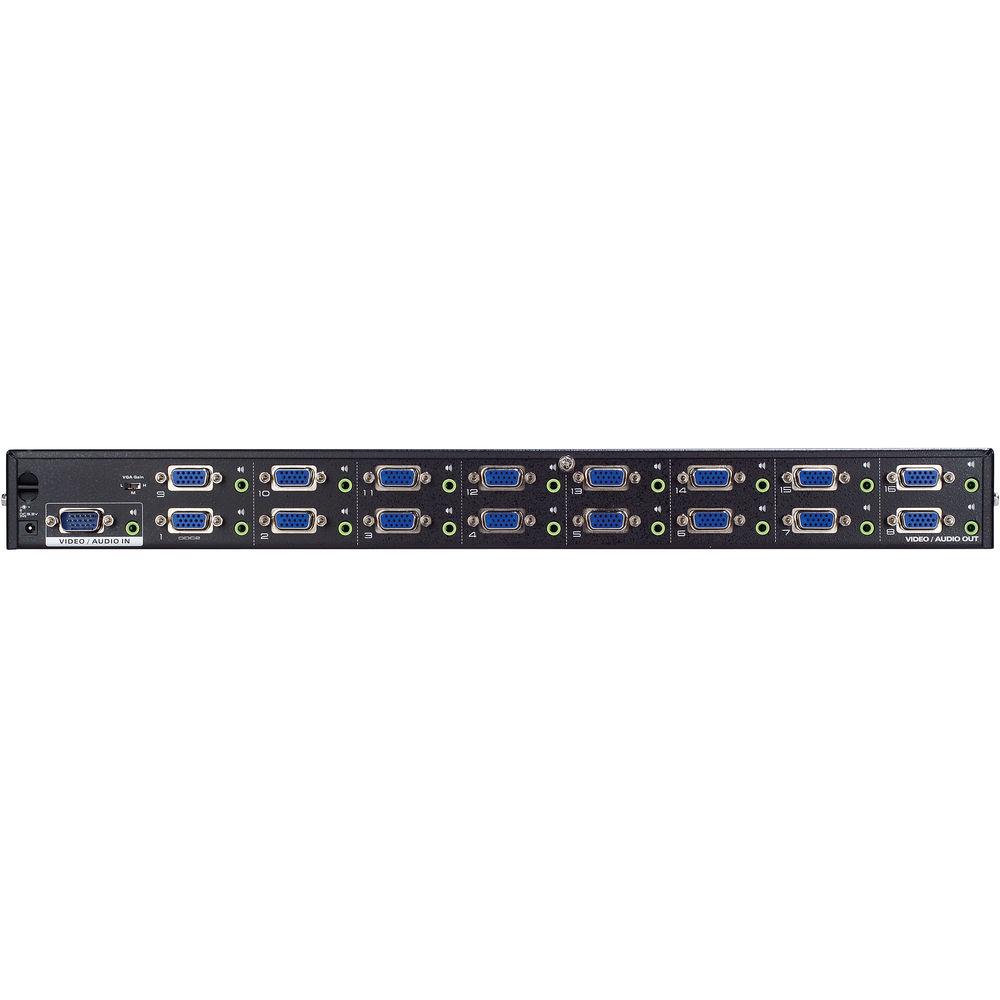

Technical parametersATEN VS0116 Specs | | | Interface | 1 x HDB-15 male (blue) | | Impedance | 75 ohms | | Max Distance | 5.9' / 1.8 m | | | | Interface | 16 x HDB-15 female (blue) | | Impedance | 75 ohms | | | | Bandwidth | 250 MHz (maximum) | | Resolution | Up to 1920 x 1440 | | Max Distance | 98.4' / 30.0 m | | | | Input | 1 x Mini stereo jack female (green) | | Output | 16 x Mini stereo jack female (green) | | | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 3.3 W | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity (Non-condensing) | 0-80% RH | | OS Support | Windows 2000, Windows XP, Linux, Mac, and Sun | | Dimensions (LxWxH) | 17.2 x 6.2 x 1.7" / 43.7 x 15.8 x 4.4 cm | | Weight | 6.2 lb / 2.8 kg |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 38 owners. Add your rating and experience with the product.
