User Manual for ATEN VS0201 2-Port VGA Switch with Audio Click to enlarge the picture
Contents of the user manual for the ATEN VS0201 2-Port VGA Switch with
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VS0201 2-Port VGA Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

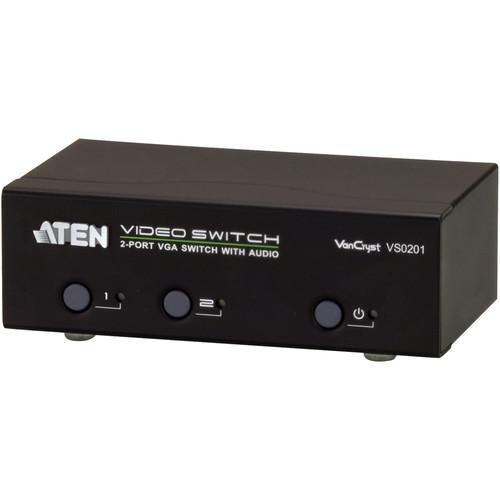

Product description The VS0201 2-Port VGA Switch with Audio from ATEN allows you to connect two audio/video source computers to a single monitor or projector with full audio and quickly switch between the devices for use.The built-in bi-directional RS-232 serial port offers high-end system control, and advanced RS-232 control. With the ability to use high-end serial control devices via RS-232 commands allows the switch to be controlled by secondary systems with advanced functions such as; port switching, auto switching, front panel pushbutton lock, and Power on Detection.The switch is suitable for use in meeting rooms, media centers, class rooms, or any presentation environment requiring multiple audio/video sources to be accessed on a single display. Note: IR extension cable and IR Remote control sold separately. - Allows you to display the video output of two computers on a single monitor or projector by switching between the devices

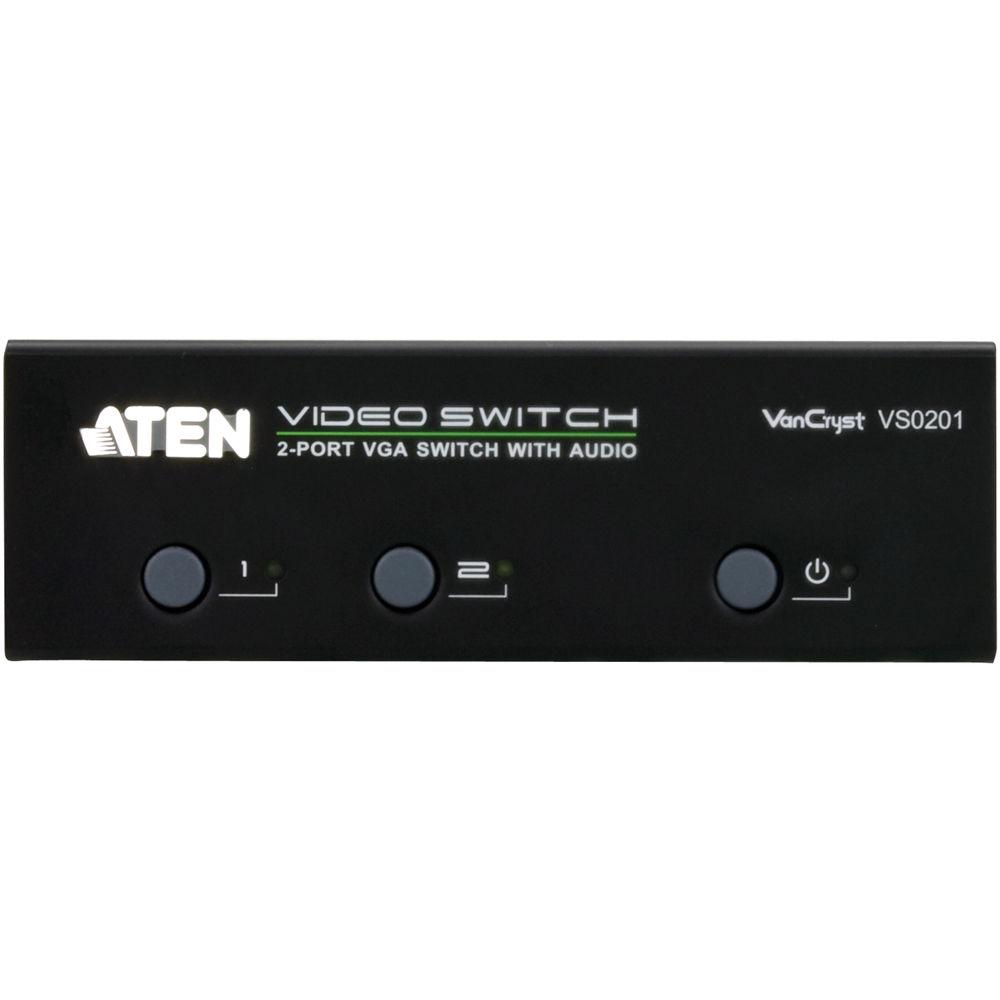

- Quick and easy switching between VGA/Audio sources via front panel pushbuttons, RS-232, or IR remote control
- Remarkable video quality up to 1920 x 1440 resolution
- Long-distance transmission up to 213' (65m) 1
Please Note: Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality. close - Supports VGA, SVGA, UXGA, WUXGA and multisync monitors
- Video DynaSync technology eliminates boot-up display problems and optimizes resolution when switching between ports
- Built-in bi-directional RS-232 serial port for high-end system control 2
Please Note: VS0201 AP and GUI operation instructions can be downloaded from the ATEN website close - RS-232 Control: Power On Detection - if one VGA source is powered off, the switch will automatically switch to the next powered-on source
- Auto Switching sets the priority for auto switching to a connected port
- Pushbutton Lock to lock use of the front panel push buttons
- Supports up to 300 MHz bandwidth for optimal video quality
- LED indication of power status and source device
- All-metal casing provides durability and protection
- Plug-and-play - no software installation required
UPC: 672792003677 In the Box ATEN VS0201 2-Port VGA Switch with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS0201 2-Port VGA Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

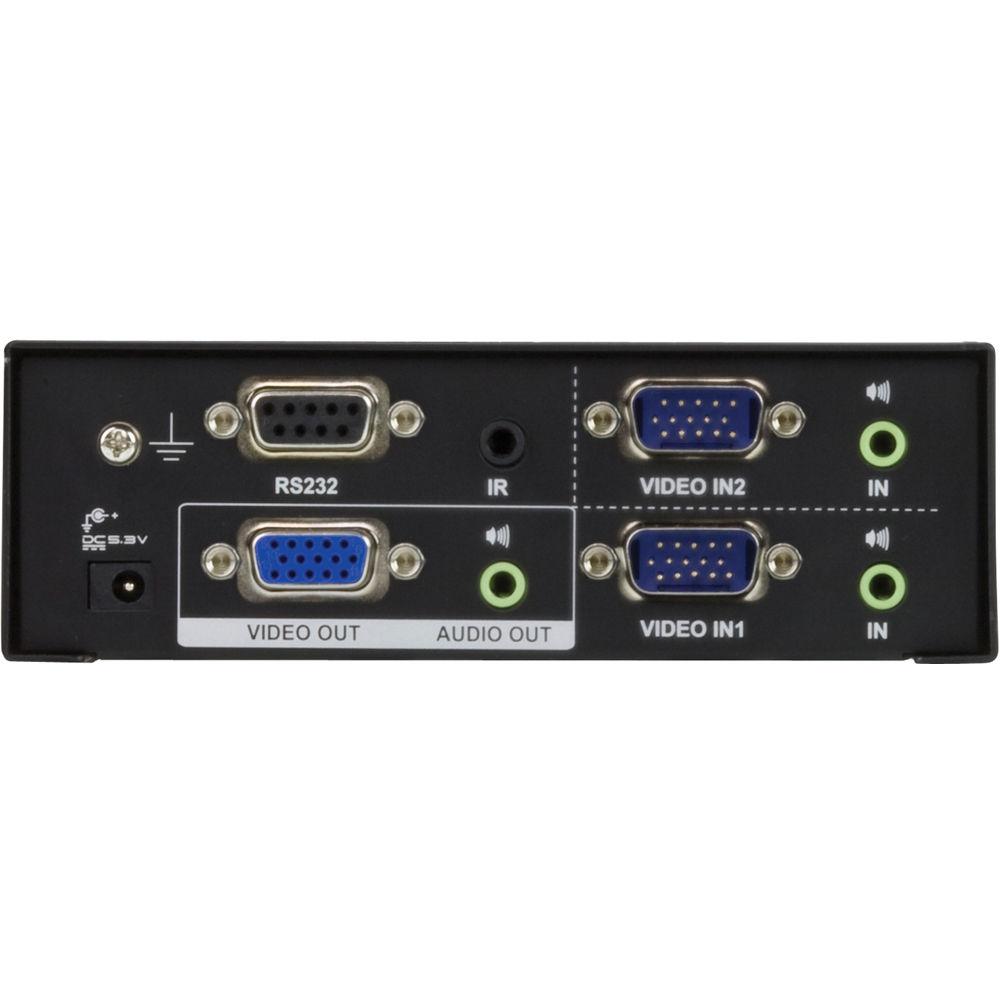

Technical parametersATEN VS0201 Specs | | | Input | Video: 2 x HDB-15 Male (Blue)
Audio: 2 x Mini Stereo Jack Female (Green) | | Output | Video: 1 x HDB-15 Female (Blue)
Audio: 1 x Mini Stereo Jack Female (Green) | | RS-232 | 1 x DB-9 Female (Black) | | IR Port | 1 x Mini Stereo Jack Female (Black) | | Power | 1 x DC Jack | | | | Port Selection | 2 x Pushbuttons | | Power | 1 x Pushbutton | | | | Indicator LEDs | Selected: 2 (Green)
Power: 1 (Green / Orange) | | Video | 1920 x 1440 at 98.4' (30 m)
1280 x 1024 at 213.2' (65 m) | | Power Consumption | 5.3 VDC, 0.55 W | | | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | | | Housing | Metal | | Dimensions (L x W x H) | 5.11 x 2.99 x 1.73" (13.00 x 7.61 x 4.40 cm) | | Weight | 0.99 lb (0.45 kg) | | | | Package Weight | 1.55 lb | | Box Dimensions (LxWxH) | 9.4 x 6.2 x 2.5" |
