User Manual for ATEN VS0202 Two-Port Video Matrix Switch Click to enlarge the picture
Contents of the user manual for the ATEN VS0202 Two-Port Video Matrix Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VS0202 Two-Port Video Matrix Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

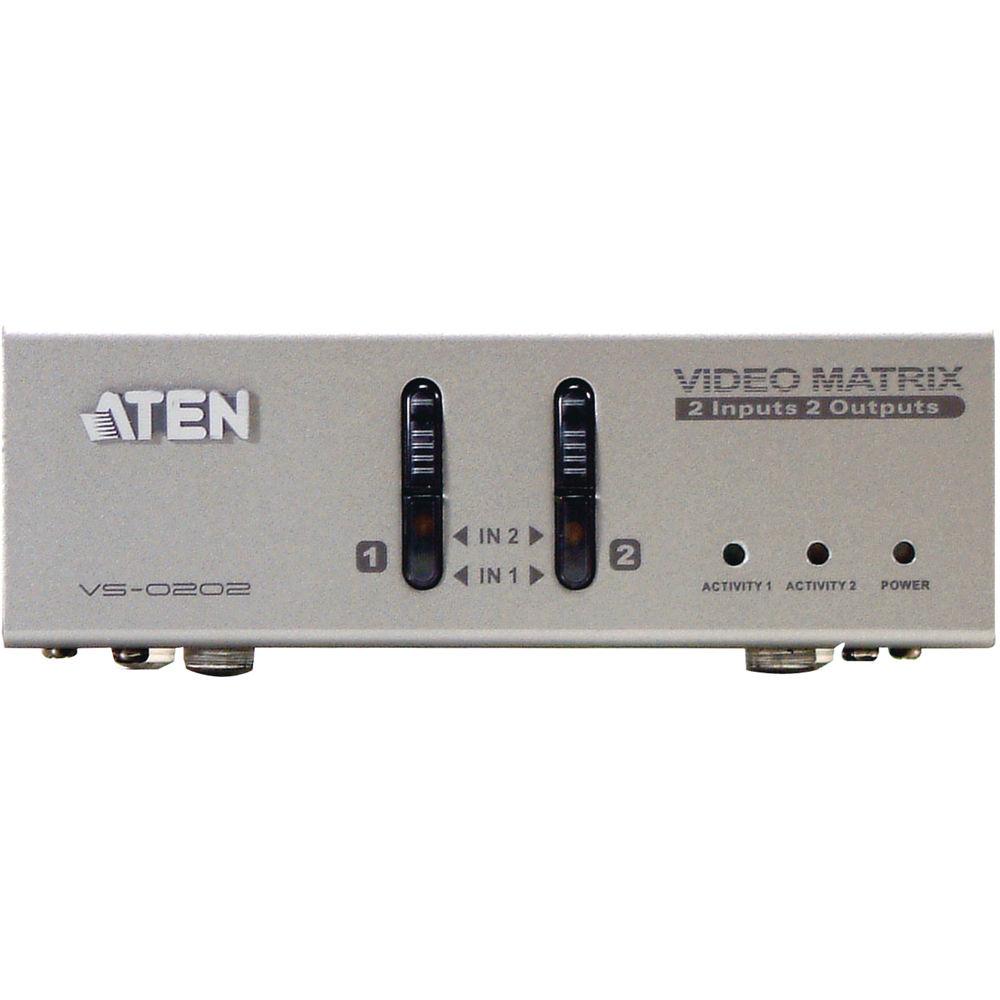

Product description The VS0202 Two-Port Video Matrix Switch from ATEN allows video and audio from two computers to be routed to two monitors, projectors, and speakers. The switch is suitable for presentations and applications where information from multiple computers is being delivered to multiple destinations. - Each of the two video outs can toggle between Source 1 and Source 2 using front panel push-buttons
- Duplicate and enhance video signals up to 213' / 65m 1
Please Note: Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality. close - Expandable to ATEN's video splitters to support hundreds of video displays
- With up to 300 MHz video bandwidth
- Supports Windows 2000, Windows XP, Linux, Mac, and Sun
UPC: 672792132001 In the Box ATEN VS0202 Two-Port Video Matrix Switch 5.9' VGA/Audio Cable Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS0202 Two-Port Video Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

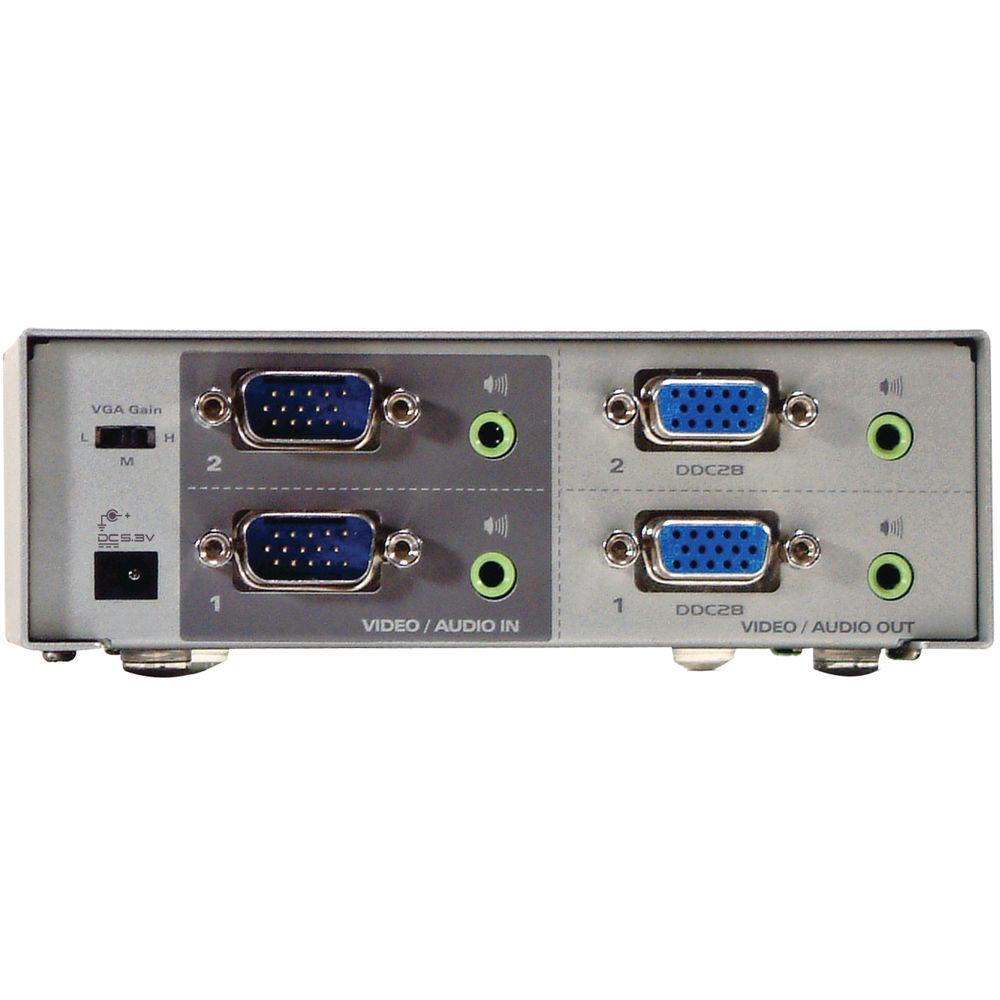

Technical parametersATEN VS0202 Specs | Display Connectors | Two | | Computer Connections | Two | | Port Selection | Push-button | | | | Input | Video: 2 x HDB-15 male (Blue)
Audio: 2 x mini stereo jack female (Green) | | Output | Video: 2 x HDB-15 female (Blue)
Audio: 2 x mini stereo jack female (Green) | | Power | 1 x DC jack (Black) | | | | Power | 1 (Blue) | | Activity Detection | 2 (Green) | | Input | 1: Two (Green)
2: Two (Orange) | | Video | 1920 x 1440 @ 60 Hz | | Video Bandwidth | 300 MHz | | Sync Range | Sync positive/negative | | Signal Range | 213' (65 m) | | Power Consumption | 5.3 VDC , 2.39 W (maximum) | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | | | Housing | Metal | | Dimensions (L x W x H) | 5.1 x 3.0 x 1.7" / 13.0 x 7.7 x 4.4 cm | | Weight | 1.04 lb / 0.47 kg | | | | Package Weight | 1.95 lb | | Box Dimensions (LxWxH) | 9.4 x 6.4 x 2.3" |
