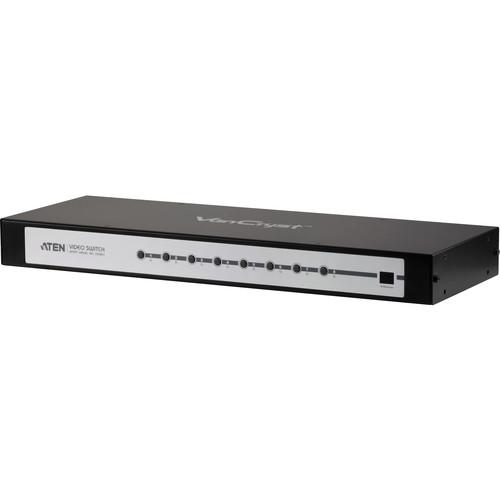

Product description The VS0801H Rack Mountable 8-Port HDMI Switch from ATEN lets you add HDMI capabilities to your home theater system by allowing you to switch easily between up to eight HDMI A/V sources such as an HD camcorder or satellite box, HD-DVD player, Hi-Def Blu-ray player, home theater PC, stand-alone streaming media player, gaming console etc. that are connected to your HDMI display.The remote control and convenient front panel pushbuttons allow you to quickly toggle between HDMI sources, while the front panel LEDs indicate the source device at a glance. Furthermore, for complete system and install integration, RS-232 control is standard through the built-in bi-directional RS-232 serial remote port that allows the switch to be controlled through a high-end controller, PC, and/or home automation/home theater software package. - Allows up to eight HDMI sources to be connected to one HDMI display or to your home theater system

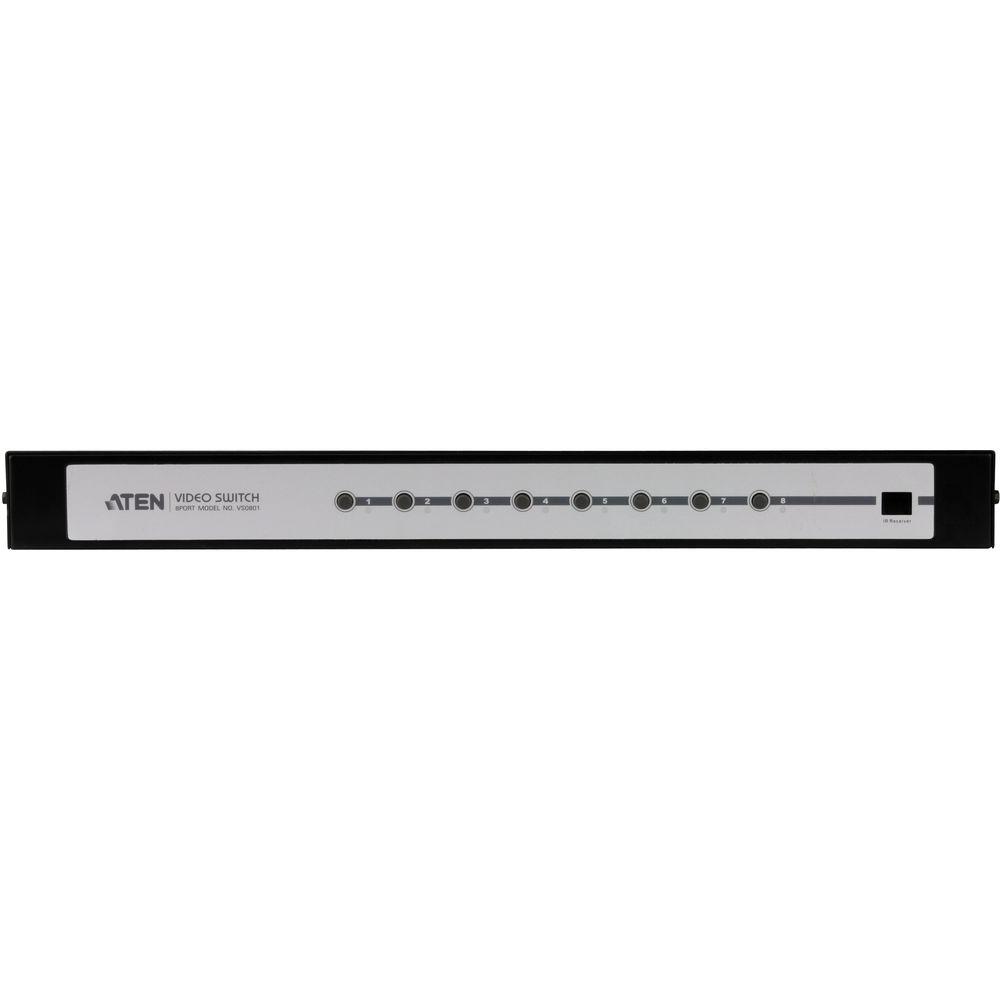

- Quick and easy switching between HDMI sources via front panel pushbuttons or IR remote control
- Built-in bi-directional RS-232 serial port for high-end system control
- Supports Dolby True HD and DTS HD Master Audio
- Long-distance transmission - up to 65.6' (20m, 24 AWG)
- Supports HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA, and WUXGA (1920x1200)
- Plug-and-play - no software installation required
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Signaling rates up to 2.25 Gb/s in support of 1080p display
- Power On Detection - if one of the HDMI source devices is powered off, the switch will automatically switch to the next powered on device
UPC: 672792001901 In the Box ATEN VS0801H Rack Mountable 8-Port HDMI Switch IR Remote Control Unit Power Adapter Mounting Kit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS0801H Rack Mountable 8-Port HDMI Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS0801H Specs | | | Display | HDMI In: 8 x HDMI Type A Female (Black) | | Device | HDMI Out: 1 x HDMI Type A Female (Black) | | RS-232 | 1 x DB-9 Female (Black) | | Power | 1 x DC Jack | | | | Selection | 8 (Green) | | Video | HDTV resolutions of 480p, 720p, 1080i, 1080p (1920x1080); VGA, SVGA, SXGA, UXGA (1600x1200), WUXGA (1920 x 1200) | | Power Consumption | 5.3 VDC, 3.71 W | | | | Operating Temperature | 32 to 122˚F (0 to 50˚C) | | Storage Temperature | -4 to 140˚F (-20 to 60˚C) | | Humidity | 0 to 80% RH, non-condensing | | | | Housing | Metal | | Weight | 3.85 lb (1.75 kg) | | Dimensions (L x W x H) | 17.20 x 6.28 x 1.73" (43.70 x 15.97 x 4.40 cm) | | | | Package Weight | 5.6 lb | | Box Dimensions (LxWxH) | 21.5 x 9.0 x 4.5" |
