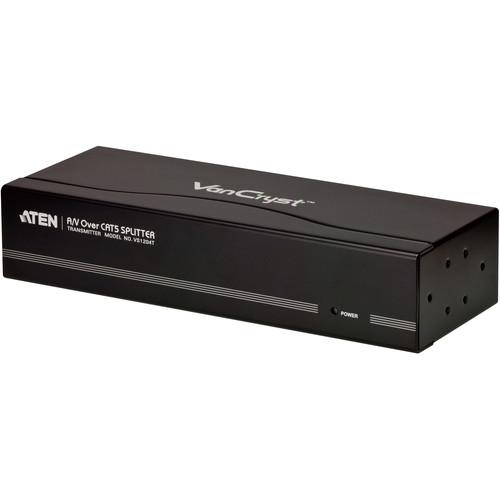

User Manual for ATEN VS1204T 4-Port A V over Cat 5 Splitter Click to enlarge the picture
Contents of the user manual for the ATEN VS1204T 4-Port A V over
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
|
User manual for the ATEN VS1204T 4-Port A V over contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VS1204T 4-Port A/V over Cat 5 Splitter from ATEN is designed to connect one source to 4 displays over a distance of over 900'. Using compatible receivers, the splitter can be used to create a complete solution for professional A/V installation that requires multimedia content to be delivered to multiple destinations. - Supports local display and up to 4 displays
- Supports up to 225 MHz bandwidth
- CAT5e cable extends displays up to 984.3' / 300.0 m
- Built-in 8KV/15KV ESD protection
UPC: 672792002656 In the Box ATEN VS1204T 4-Port A/V over Cat 5 Splitter Mounting Kit Power Adapter Foot Pad Set (Pack of 4) Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS1204T 4-Port A V over Cat 5 Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS1204T Specs | Inputs | Video: 1 x HDB-15 Male (Blue)
Audio: 1 x Mini Stereo Jack Female (Green) | | Outputs | Video: 1 x HDB-15 Female (Blue)
Audio: 1 x Mini Stereo Jack Female (Green) | | Connectors | 4 x RJ-45 Female | | Power | 1 x DC Jack | | Indicator LEDs | Power: 1 (Green) | | Video | 1920 x 1200 @ 60 Hz | | Cable Distance | 984.3' / 300.0 m | | Power Consumption | 5.3 VDC, 1.33 W | | Compatible Receivers | ATEN suggested compatible units: VE170R, VE170RQ, VE172R | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Housing | Metal | | Dimensions (L x W x H) | 7.9 x 3.0 x 1.7" / 20.0 x 7.5 x 4.2 cm | | Weight | 1.30 lb / 0.59 kg | | | | Package Weight | 2.5 lb | | Box Dimensions (LxWxH) | 9.4 x 6.5 x 2.4" |
