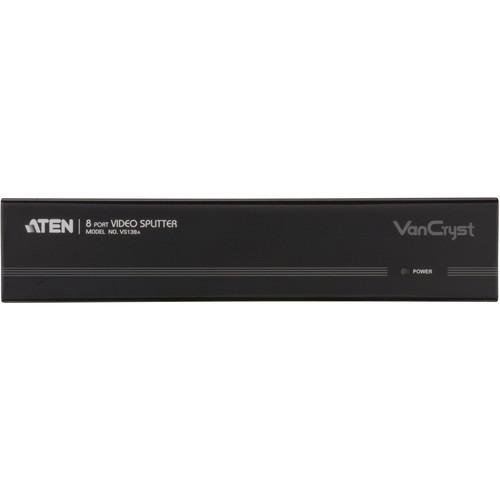

Product description The VS138A 8-Port VGA Video Splitter from ATEN is a boosting device that duplicates a video signal from one source to 8 output devices. Cascadable up to three levels, multiple splitters can be combined to provide up to 512 video signals, in addition to extending the transmission distance up to 231', making it suitable for public broadcast systems. It is used to transmit multiple VGA, XGA, SVGA, UXGA, QXGA, WUXGA, and multisync video signals over long distances. Features - One video input to 8 video outputs
- Supports up to 450 MHz bandwidth
- Cascadable to 3 levels - provides up to 512 video signals (multiple VS138A units required)
- Long distance transmission up to 231' 1
Please Note: Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality close - Supports video resolutions up to 2048 x 1536
- Supports VGA, XGA, SVGA, UXGA, QXGA, WUXGA, and multisync monitors
- Built-in 1.5 GHz amplifier to maintain fidelity
Applications - Financial - the remote display of stock market information
- Education - the remote display of lectures and lessons to halls and classrooms
- Business - the remote display of addresses to overflow rooms; video conferencing; and demos
UPC: 672792100635 In the Box ATEN VS138A 8-Port VGA Video Splitter Power Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS138A 8-Port VGA Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS138A Specs | | | Video In | 1 x HDB-15 male | | Video Out | 8 x HDB-15 female | | Power | 1 x DC jack | | LED | 1, for power (green) | | | | Bandwidth | 450 MHz | | Resolution | 2048 x 1536 @ 60 Hz | | Signal Type | VGA, XGA, SVGA, UXGA, QXGA, WUXGA, multisync, DDC2B (port 1 only) | | Signal Range | 231' / 65 m | | Power Consumption | 5 VDC, 2.25 W | | | | Operating Temperature | 32 to 122°F / 0 to 50°C | | Storage Temperature | -4 to 140°F / -20 to 60°C | | Humidity | 0 to 80% RH, non-condensing | | Compliance | RoHS | | Housing | Metal | | Dimensions (L x W x H) | 5.1 x 3.0 x 1.7" / 13.0 x 7.5 x 4.2 cm | | Weight | 1.52 lb / 0.69 kg | | | | Package Weight | 2.0 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.3" |
