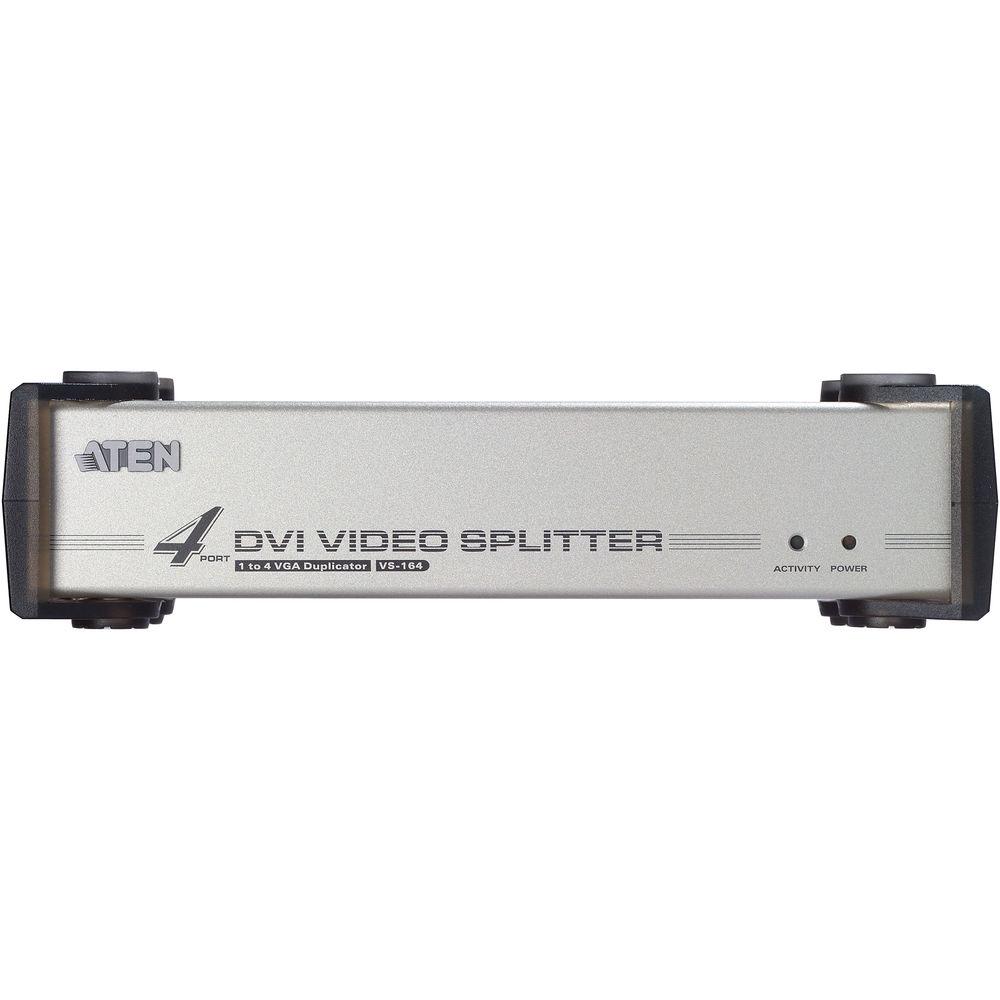

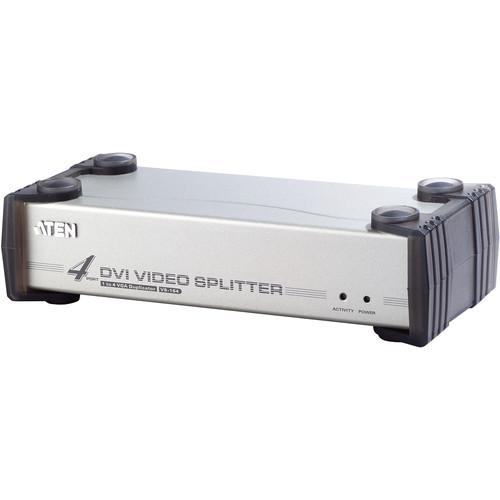

Product description The VS164 4-Port DVI Video KVM Splitter from ATEN provides DVI video and audio input signals to 4 DVI video and audio outputs after duplication and boosting. The VS164 video splitter can be cascaded to three levels to handle up to 64 monitors, which makes it a suitable solution for broadcasting environments, company training facilities, classrooms, or power computer users. - Connects computers with DVI graphics to multiple DVI compatible monitors or projectors
- Supports DDWG (Digital Display Working Group) standard for DVI compliant monitors
- Compliant with DVI-digital and DVI-analog
- DDC, DDC2, DDC2B compatible (port 1 only)
- Speaker-enabled for audio listening
- Cascadable to 3 levels to provide up to 64 video signals
- Cascade distance from Source to Device - 5.9'; Device to Device - 16.4'; Device to Display - 16.4'
- Maintains high single link video resolution
- OS Support: Windows 2000, Windows XP, Linux, Mac, and Sun
UPC: 672792133336 In the Box ATEN VS164 4-Port DVI Video KVM Splitter Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS164 4-Port DVI Video KVM Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

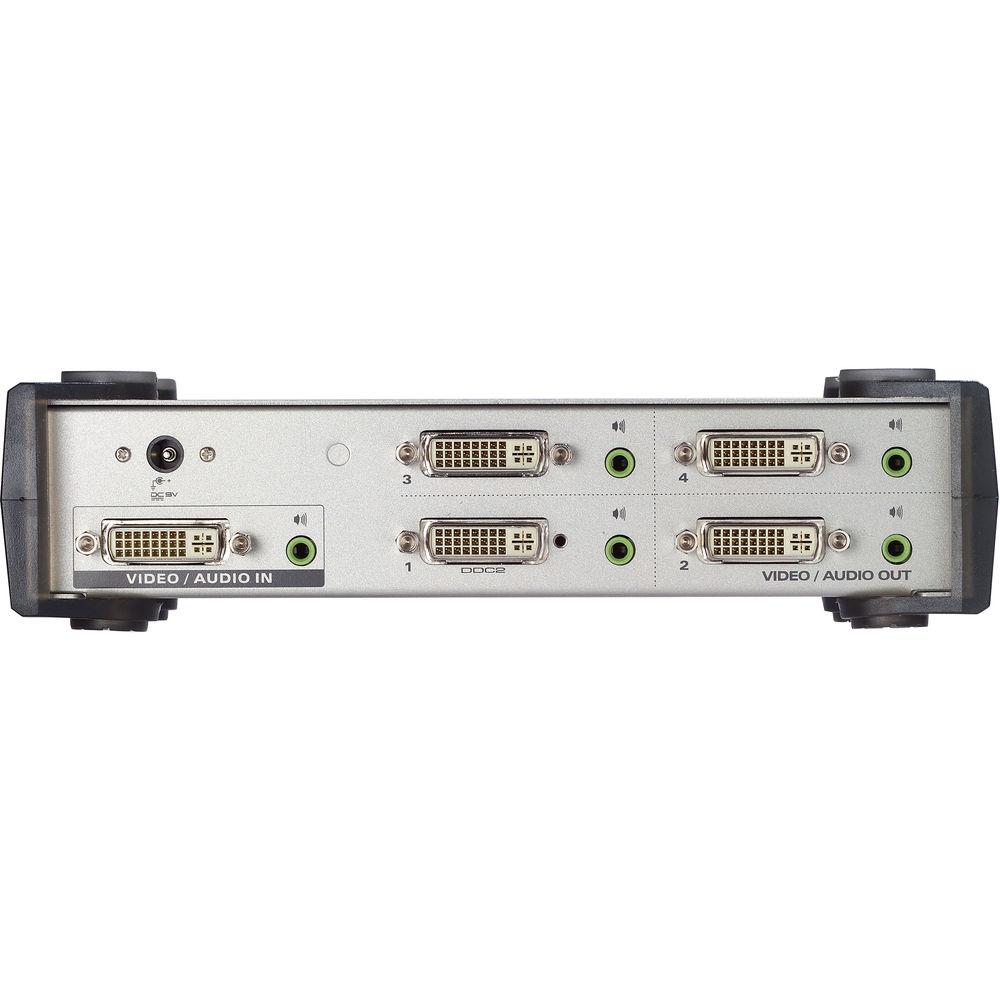

Technical parametersATEN VS164 Specs | Connectors | 1 x DVI female white, video input
1 x 1/8" phone jack female green, audio input
4 x DVI female white, video output
4 x 1/8" phone jack female green, audio output
1 x DC power jack, 5.3 V power input | | Impedance | Input: 100 ohms
Output: 100 ohms | | LEDs | 1 x LED, status
1 x LED, power | | Maximum Distance | Source to Device: 5.9' (1.8 m)
Device to Device: 16.4' (5 m)
Device to Display: 16.4' (5 m) | | Resolution | Up to 1920 x 1200 | | Maximum Data Rate | 6.75 Gb/s (2.25 Gb/s per lane) | | Maximum Pixel Clock | 225 MHz | | Compliance | HDCP | | Compatibility | DDC, DDC2, DDC2B compatible (port 1 only) | | Operating System Supported | Windows 2000, Windows XP, Linux, Mac, and Sun | | Temperature & Humidity | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C)
Humidity: 0 to 80%, RH non-condensing | | Power Consumption | 5.3 VDC, 4.0 W | | Housing | Metal | | Dimensions | 8.3 x 3.5 x 2.2" (21.0 x 8.8 x 5.5 cm) | | Weight | 1.59 lb (0.72 kg) | | | | Package Weight | 2.6 lb | | Box Dimensions (LxWxH) | 11.8 x 7.7 x 4.0" |
