User Manual for ATEN VS172 2-Port DVI Dual Link Splitter with Audio Click to enlarge the picture
Contents of the user manual for the ATEN VS172 2-Port DVI Dual Link
- Product category: Distribution Amplifiers (DA's) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Distribution Amplifiers (DA's)
 |
User manual for the ATEN VS172 2-Port DVI Dual Link contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

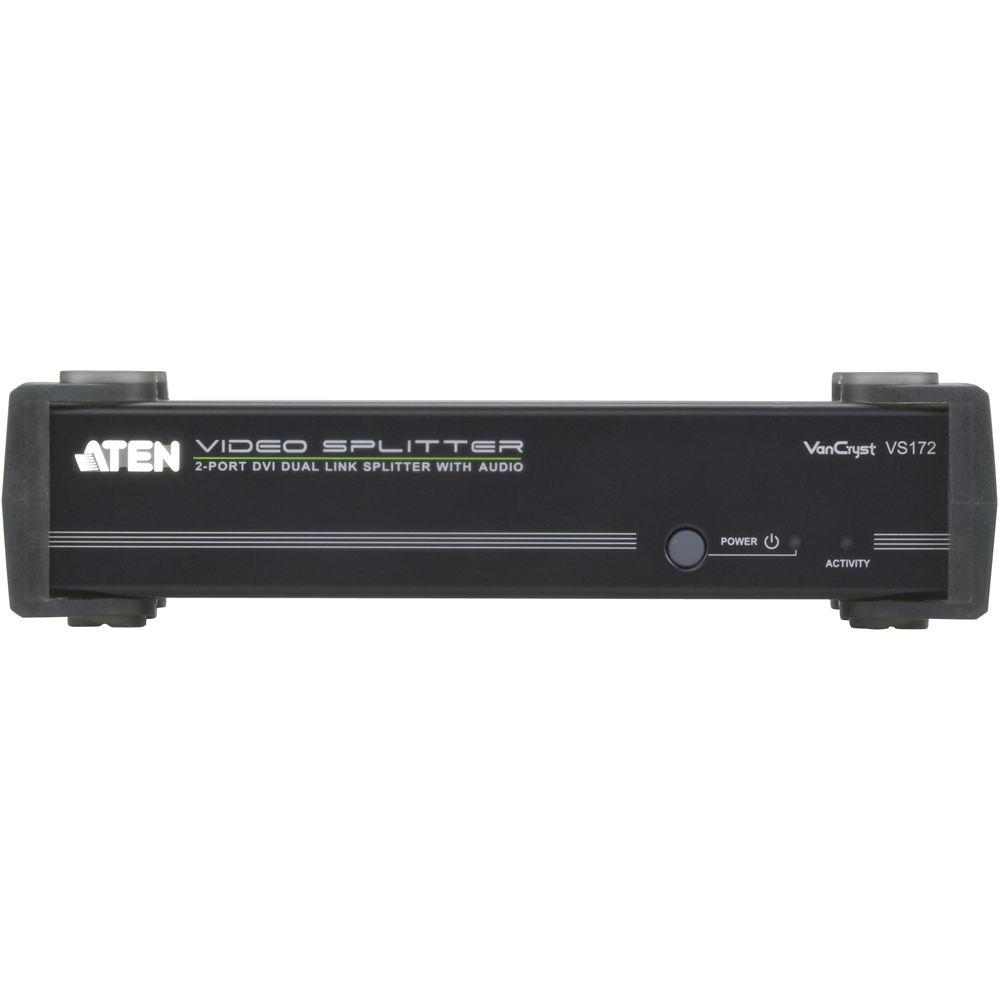

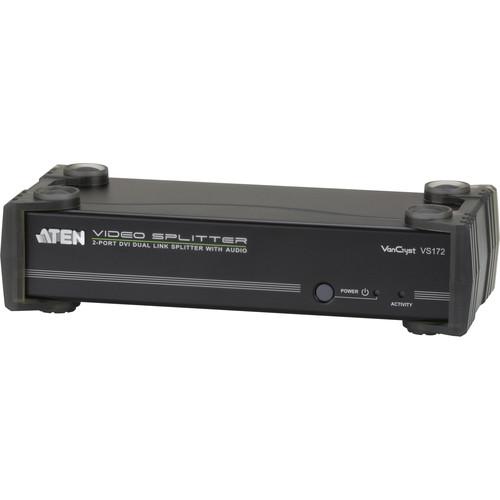

Product description The VS172 2-Port DVI Dual Link Splitter with Audio from ATEN combines DVI quality video and audio, taking signals from an audio/video source and replicating them to two audio/video outputs. This video splitter uses dual link technology, which offers a high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600. The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration. - The VS172 is easy to operate and can be cascaded to three levels, handling up to eight monitors, which makes it a suitable solution for situations such as:
Broadcasting video information to the public (news headlines, stock prices, airline and train schedules, etc.)
Company training facilities
Classroom instruction - Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Optimum video quality up to 2560 x 1600 at 60 Hz
- Cascadable to three levels handling up to eight video signals
- Features RS-232 serial port for command controls
- RS-232 Chain Control; use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert; selects the optimum EDID settings via RS-232
UPC: 672792003691 In the Box ATEN VS172 2-Port DVI Dual Link Splitter with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS172 2-Port DVI Dual Link Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

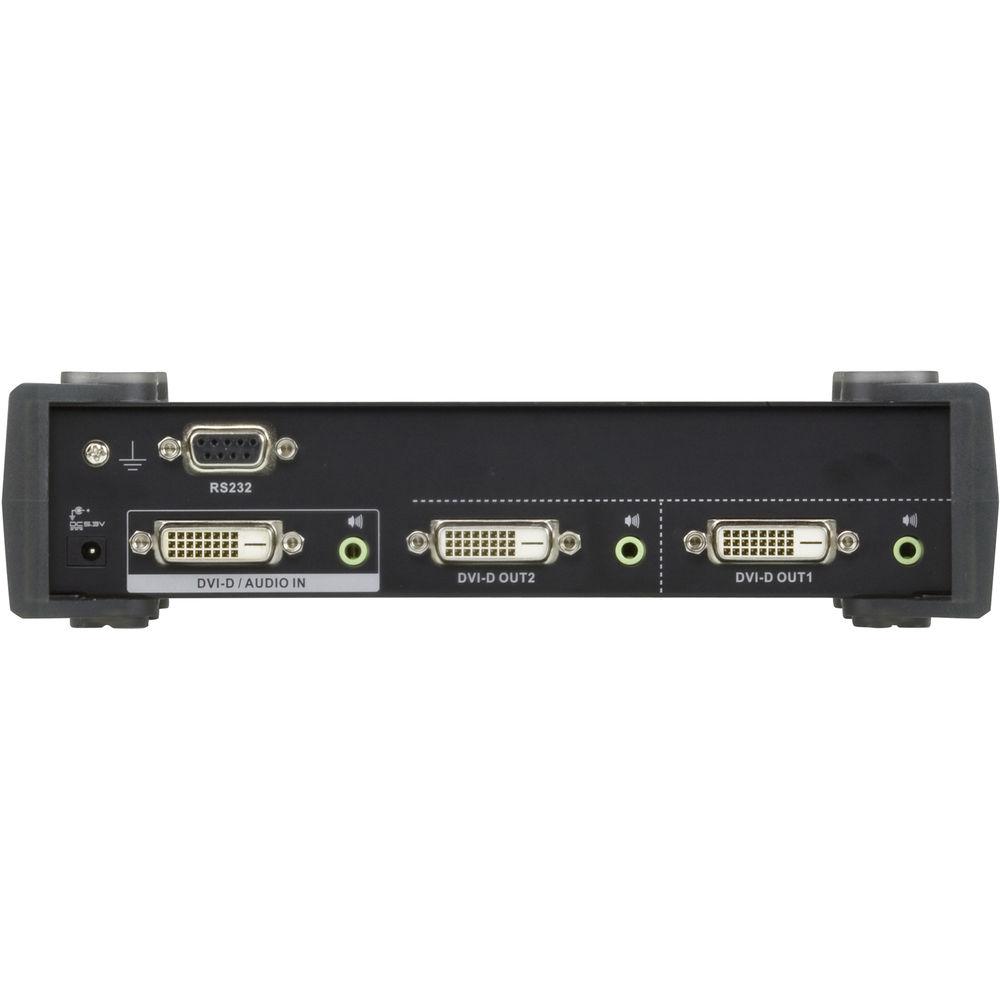

Technical parametersATEN VS172 Specs | Computer Connections | 2 | | Connectors | Video In: 1 x DVI-D female (white)
Audio In: 1 x mini stereo jack (green)
RS-232: 1 x DB 9 female (black)
Video Out: 2 x DVI-D female (white)
Audio Out: 2 x mini stereo jacks (green)
Power: 1 x DC jack | | LEDs | Link: 1 (green)
Power: 1 (green + orange) | | Resolution | Up to 2560 x 1600 | | Power Consumption | 5.3 VDC, 3.1 W | | Signal Range | 15' (5 m) | | Temperament | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% (non-condensing) | | Compatibility | Compatible ATEN Accessory:
2L7D02V DVI-D KVM Cable (6') | | Compliance | RoHS | | Housing Material | Metal | | Dimensions (L x W x H) | 8.3 x 3.5 x 2.2" (21.0 x 8.8 x 5.5 cm) | | Weight | 1.50 lb (0.68 kg) | | | | Package Weight | 2.4 lb | | Box Dimensions (LxWxH) | 11.1 x 7.1 x 3.9" |
