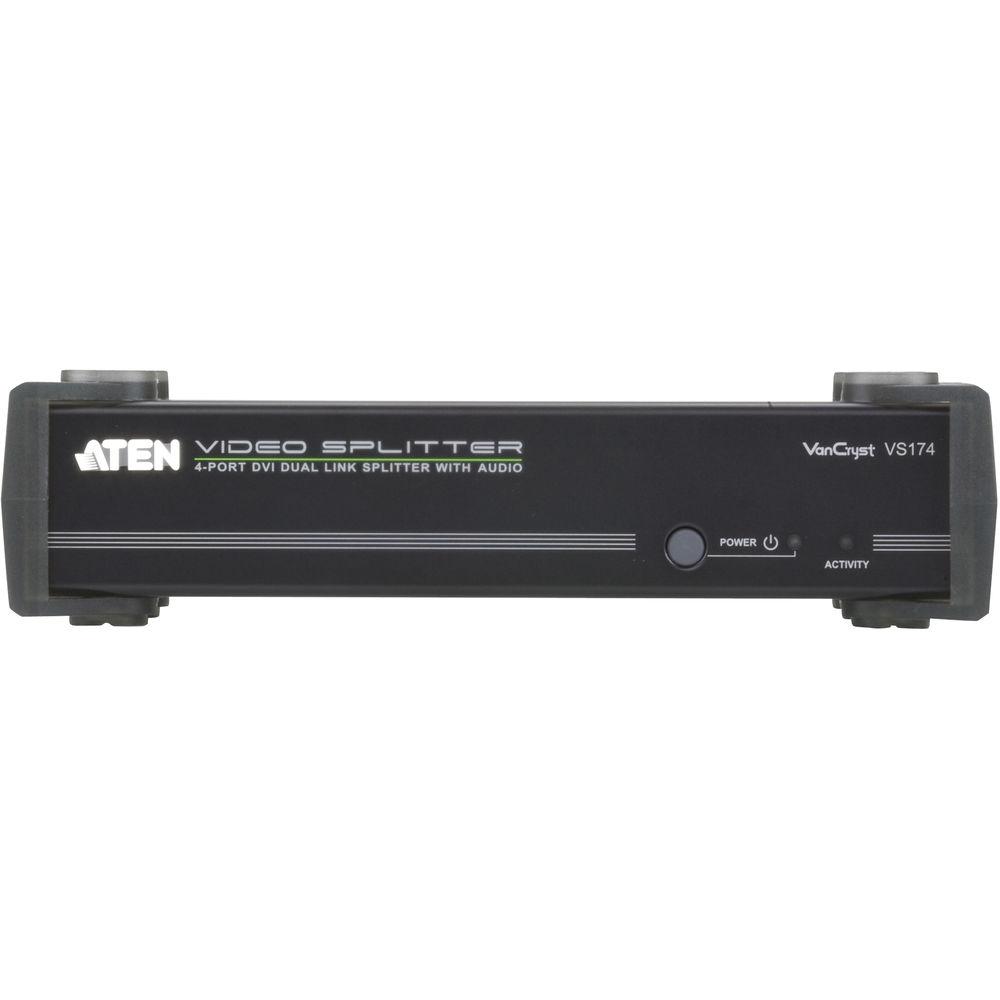

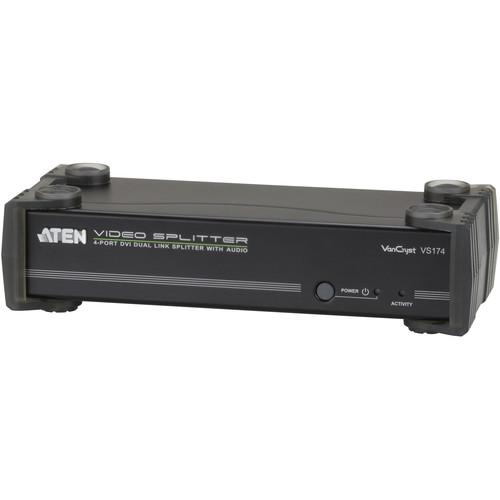

Product description The VS174 4-Port DVI Dual Link Splitter with Audio from ATEN combines DVI quality video and audio, taking signals from an audio/video source and replicating them to four audio/video outputs. This video splitter uses dual link technology, which offers a high bandwidth capacity for added transmission power and faster refresh rates, thereby providing better video quality of viewing resolutions up to 2560 x 1600. The built-in bi-directional RS-232 port on the rear panel allows the splitter to be controlled through a Control Unit, PC, and/or home automation/home theater software package for complete system integration. - The VS174 is easy to operate and can be cascaded to three levels, handling up to sixty-four monitors, which makes it a suitable solution for situations such as:
Broadcasting video information to the public (news headlines, stock prices, airline and train schedules, etc.)
Company training facilities
Classroom instruction - Displays DVI audio/video to multiple DVI-compatible monitors or projectors
- Optimum video quality up to 2560 x 1600 at 60 Hz
- Cascadable to three levels handling up to sixty-four video signals
- Features RS-232 serial port for command controls
- RS-232 Chain Control; use RS-232 commands to control cascaded devices via a DVI Cable
- EDID Expert; selects the optimum EDID settings via RS-232
UPC: 672792003707 In the Box ATEN VS174 4-Port DVI Dual Link Splitter with Audio Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS174 4-Port DVI Dual Link Splitter with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS174 Specs | Computer Connections | 4 | | Connectors | Video In: 1 x DVI-D female (white)
Audio In: 1 x mini stereo jack (green)
RS-232: 1 x DB 9 female (black)

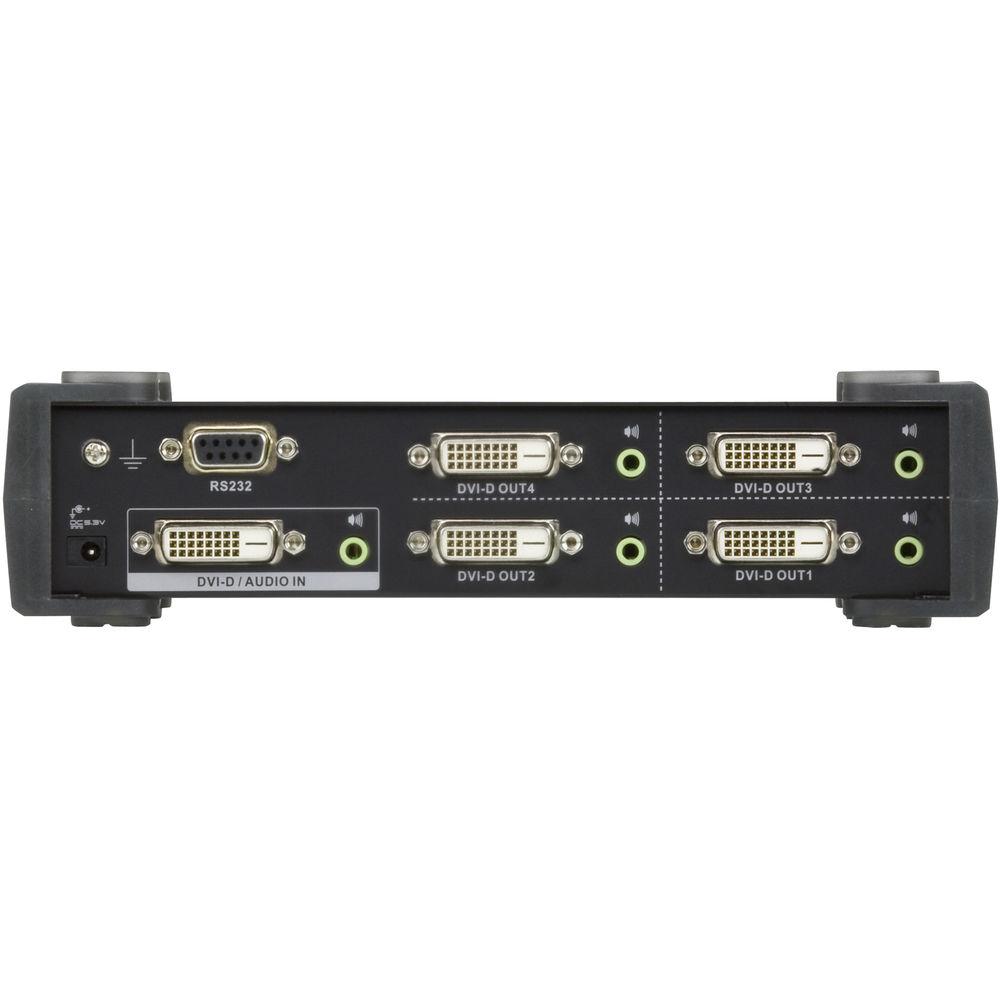

Video Out: 4 x DVI-D female (white)
Audio Out: 4 x mini stereo jacks (green)
Power: 1 x DC jack | | LEDs | Link: 1 (green)
Power: 1 (green + orange) | | Resolution | Up to 2560 x 1600 | | Power Consumption | 5.3 VDC, 5.6 W | | Signal Range | 15' (5 m) | | Temperament | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% (non-condensing) | | Compatibility | Compatible ATEN Accessory:
2L7D02V DVI-D KVM Cable (6') | | Compliance | RoHS | | Housing Material | Metal | | Dimensions (L x W x H) | 8.3 x 3.5 x 2.2" (21.0 x 8.8 x 5.5 cm) | | Weight | 1.65 lb (0.75 kg) | | | | Package Weight | 2.65 lb | | Box Dimensions (LxWxH) | 11.2 x 6.9 x 4.0" |
