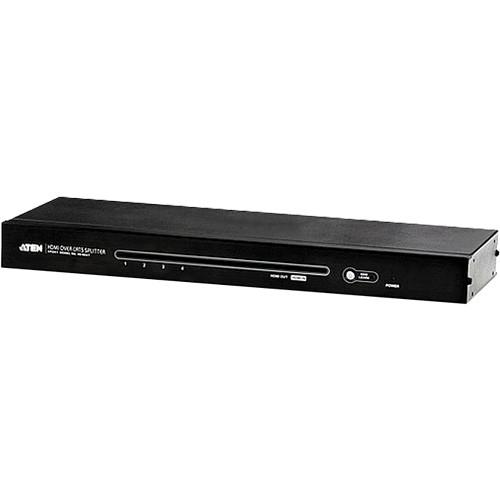

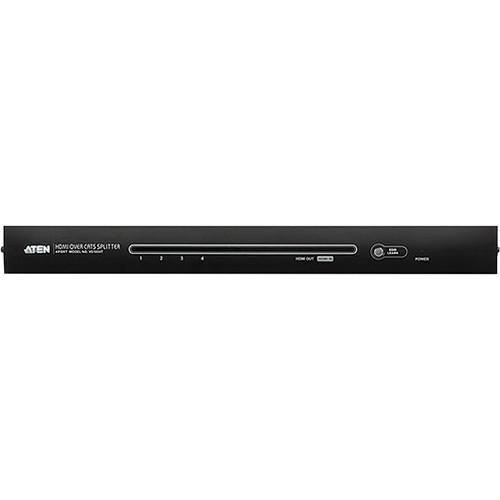

Product description The ATEN VS1804T 4-Port HDMI over CAT5 Transmitter allows you to duplicate HDMI multimedia content and HDCP information from an input source to 4 displays in real time over CAT5e cables. This unit can be used as a one-to-many or point-to-multipoint system for transmission of high definition video and audio signals of up to 196.8’. It is suitable for use in applications such as in-store or trade show digital signage, broadcasting information to public locations, sporting events, theater and lecture overview rooms, classroom and company training facilities, etc. - Distributes one HDMI input to 4 HDMI displays via CAT5e cables 1
Please Note: Requires a compatible receiver (not included) close - Extends signals up to 196.8'
- Supports 3D and Deep color HDMI formats
- Supports Dolby True HD and DTS HD master audio
- Offers a local HDMI output
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Features RS-232 serial port for command controls
- Cascadable to three levels 2
Please Note: Additional units sold separately close - Supports HDTV resolutions of 480p, 720p, 1080i, and 1080p (1920 x 1080)
UPC: 672792003097 In the Box ATEN VS1804T 4-Port HDMI over CAT5 Transmitter Power Adapter Mounting Kit 4 x Foot Pad Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS1804T 4-Port HDMI over CAT5 Transmitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

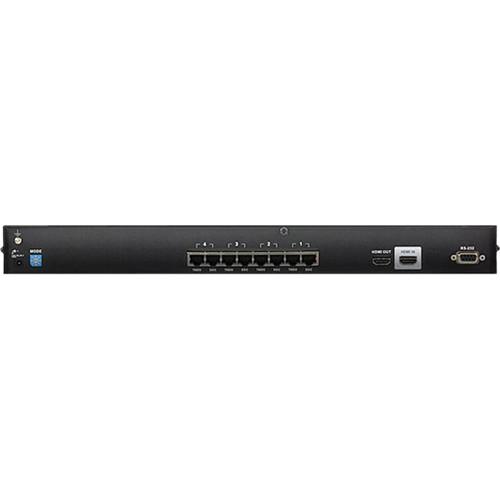

Technical parametersATEN VS1804T Specs | | | HDMI Input | 1 x HDMI Type A female (black) | | HDMI Output | 1 x HDMI Type A female (black/local) | | Line Output | TMDS: 4 x RJ-45 female
DDC: 4 x RJ-45 female | | RS-232 | 1 x DB-9 female (black) | | Power | 1 x DC Jack | | Switches | EDID Mode: 1 x 8-position switch
EDID Learn Mode: 1 x Push button | | LED Indicators | Power: 1 x Green LED
HDMI In: 1 x Green LED
HDMI Out: 1 x Green LED
EDID Learn: 1 x Green / Red LED
Line Out:4 x Green LEDs | | | | Resolutions Supported | 1080p @ 131.2' (40.0 m); 1080i @ 196.8' (60.0 m) | | | | Power Consumption | 5.3 VDC, 8 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Dimensions (L x W x H) | 17.2 x 6.2 x 1.7" (43.7 x 15.8 x 4.4 cm) | | Weight | 4.6 lb (2.1 kg) | | | | Package Weight | 6.65 lb | | Box Dimensions (LxWxH) | 21.4 x 9.6 x 4.8" |
