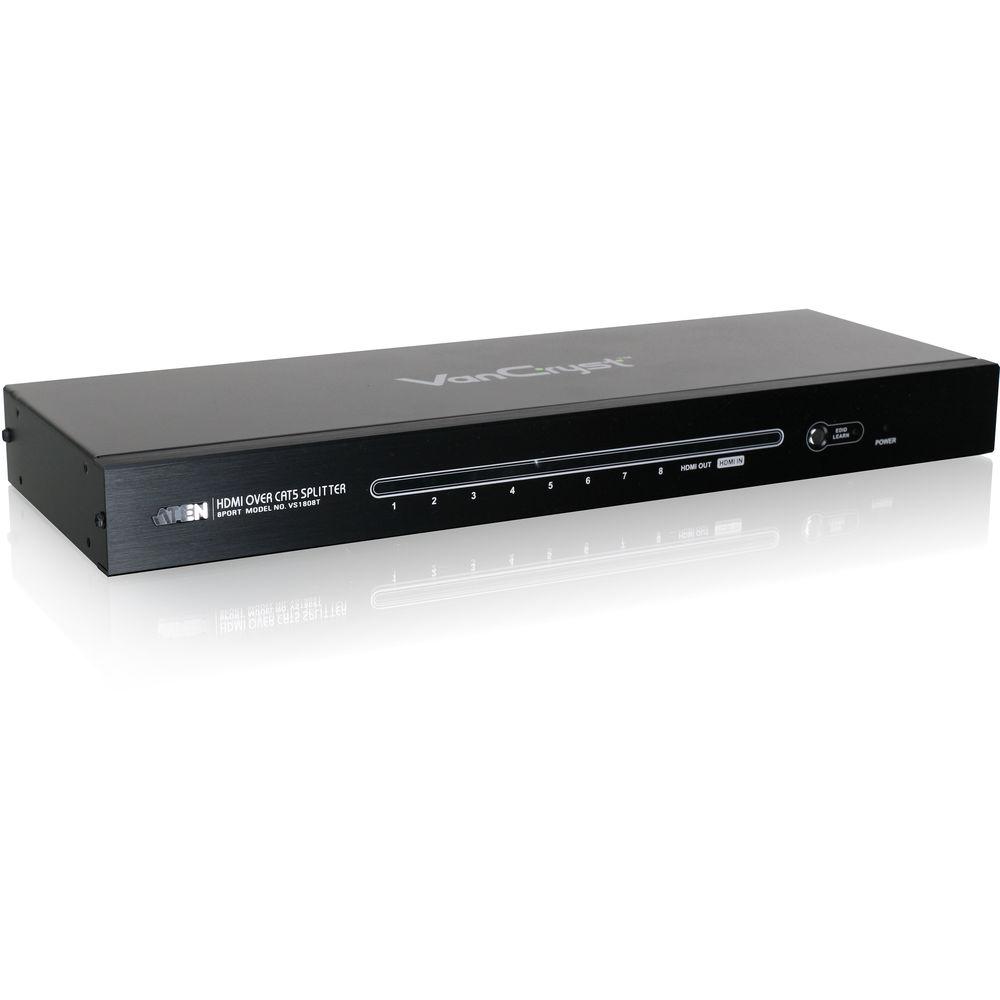

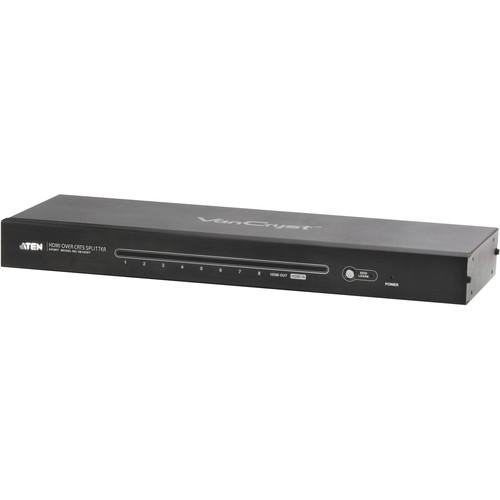

Product description The VS1808T 8-Port HD Video/Audio Cat 5e/6 Splitter with RS-232 from ATEN is a quick and efficient device to move HDMI multimedia content and HDCP information from an input source to eight displays. A one-to-many, point-to-multipoint system for transmission of high definition video and audio, the VS1808T transmits rich multimedia content in real time from HDMI source devices to HDMI display devices over Cat 5e cables. This device can support multi-displays when combined in an installation with ATEN's HDMI extender*. The VS1808T provides the flexibility you need for a customized digital signage or HDMI display installation, allowing you to set up your display device 200' from the HDMI source devices. Note: *Compatible receiving device is VE800R HD Video Extender. - The VS1808T solution is suitable for any installation that requires HDMI content to be delivered to multiple destinations, such as:
In-store or tradeshow digital signage
Broadcasting information to public locations (news, airline and train schedule, and arrival/departure information)
Sporting events
Theater and lecture overview rooms
Classroom and company training facilities - One HDMI input to eight HDMI outputs via Cat 5e cables
- Extends displays up to 198'
- Supports HDMI (3D, Deep color)
- Consumer Electronics Control (CEC) allows interconnected HDMI devices to communicate and respond to one remote control
- Cascadable to three levels
- Supports optimum video quality; HDTV resolutions of 480p, 720p, 1080i and 1080p (1920 x 1080)
UPC: 672792003103 In the Box ATEN VS1808T 8-Port HD Video/Audio Cat5e/6 Splitter with RS-232 2 x Power Adapters Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS1808T 8-Port HD Video Audio Cat5e 6 Splitter with RS-232 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

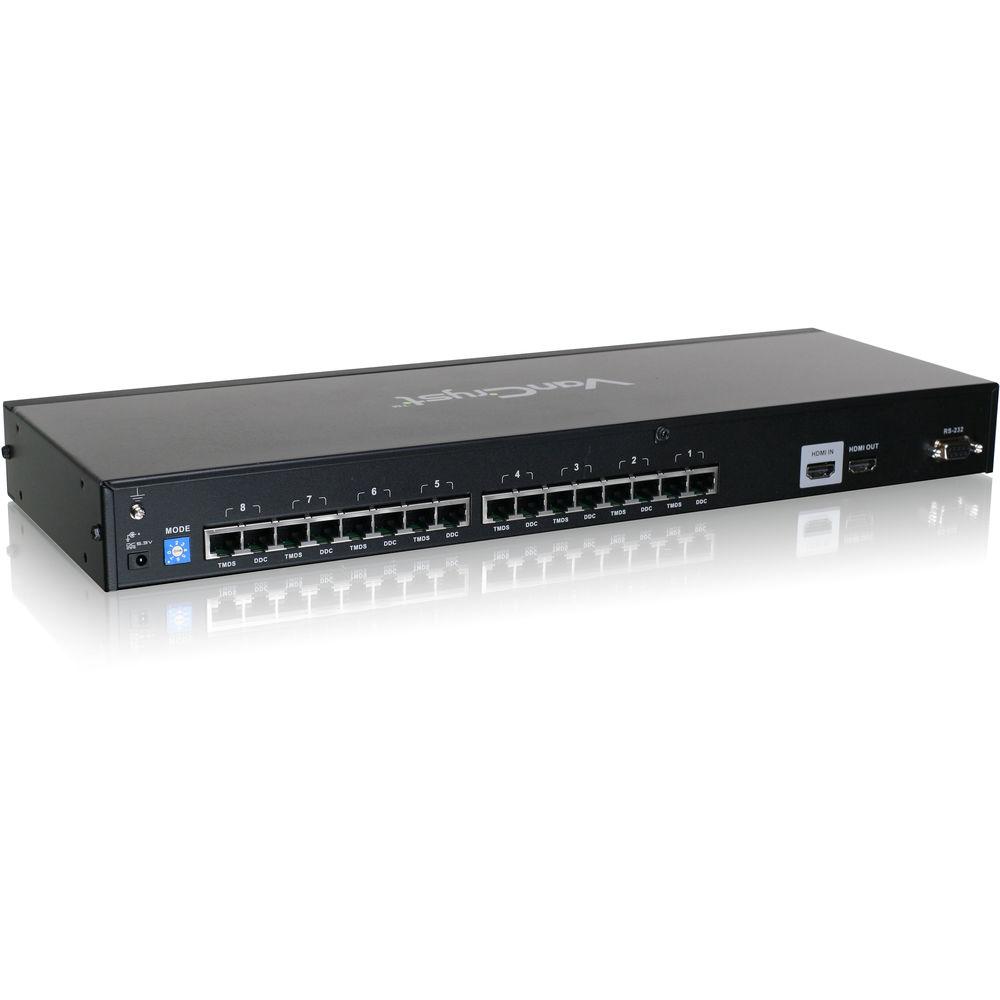

Technical parametersATEN VS1808T Specs | Connectors | HDMI In: 1 x HDMI type A female (black)
HDMI Out, Local: 1 x HDMI type A female (black)
Line Out (Cat 5), TMDS: 8 x RJ-45 female
Line Out (Cat 5), DDC: 8 x RJ-45 female
RS-232: 1 x DB-9 female (black)
Power: 1 x DC jack | | Switches | EDID Mode: 1 x 8-position switch
EDID Learn Mode: 1 x pushbutton | | LEDs | Power: 1 (green)
HDMI In: 1 (green)
HDMI Out: 1 (green)
EDID Learn: 1 (green/red)
Line Out: 8 (green) | | Video | 1080p at 130.0' (39.6 m); 1080i at 198.0' (60.3 m) | | Power Consumption | 5.3 VDC, 13 W | | Temperature | Operating Temperature: 32 to 122°F (0 to 50°C)
Storage Temperature: -4 to 140°F (-20 to 60°C) | | Relative Humidity | 0 to 80% (non-condensing) | | Compatibility | Compatible ATEN Accessories:
VB802 HDMI Over Cat 5e/6 Repeater
VE800R HD Video Extender | | Compliance | RoHS | | | | Package Weight | 6.7 lb | | Box Dimensions (LxWxH) | 21.4 x 9.4 x 4.7" |
