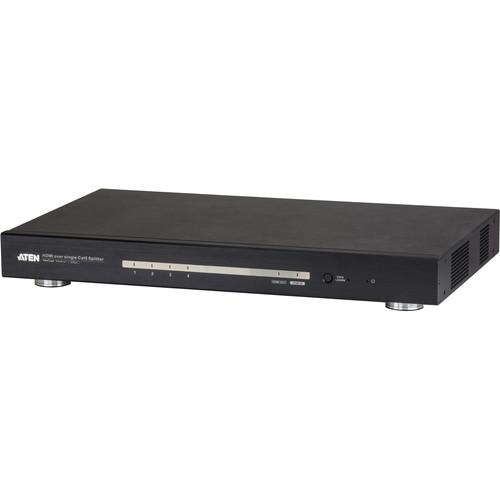

User Manual for ATEN VS1814T Four-Port HDMI over Single Cat5 Splitter Click to enlarge the picture
Contents of the user manual for the ATEN VS1814T Four-Port HDMI over Single
- Product category: Video Extenders & Repeaters ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Video Extenders & Repeaters
 |
User manual for the ATEN VS1814T Four-Port HDMI over Single contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VS1814T Four-Port HDMI over Single Cat5 Splitter from ATEN provides a fast and efficient way of switching high definition video from one input source to four displays. It is suitable for any installation that requires HDMI content to be delivered to multiple destinations located up to 328 ft away from the source. The solution implements HDBaseT extension technology to connect the VS1814T to receiver units over one single Cat6 cable, transmitting rich HDMI multimedia content in real time. It supports up to 4k x 2k resolution, and features an EDID selection method to ensure constant and reliable EDID data relay for the HDMI source device, efficiently optimizing video resolution. - One HDMI input to four HDMI outputs via a Cat5e cable
- Extends displays up to 328 ft
- Implements HDBaseT extension technology using only one Cat5 cable to connect the transmitter and receiver
- Anti-jamming resists signal interference during high-quality video transmissions using HDBaseT technology
- 4K x 2K, 3D HDMI cable (HDCP compatible)
- Supports Dolby True HD and DTS HD Master Audio
- Consumer Electronics Control (CEC) support
- Built-in bidirectional RS-232 serial remote port for high-end system control
- Supports resolutions up to Ultra HD 4k x 2k and 1080p Full HD
- Supports up to 340 MHz bandwidth for high performance video
- Signaling rates up to 3.4 Gb
UPC: 672792005381 In the Box ATEN VS1814T Four-Port HDMI over Single Cat5 Splitter Power Cord Mounting Kit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS1814T Four-Port HDMI over Single Cat5 Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

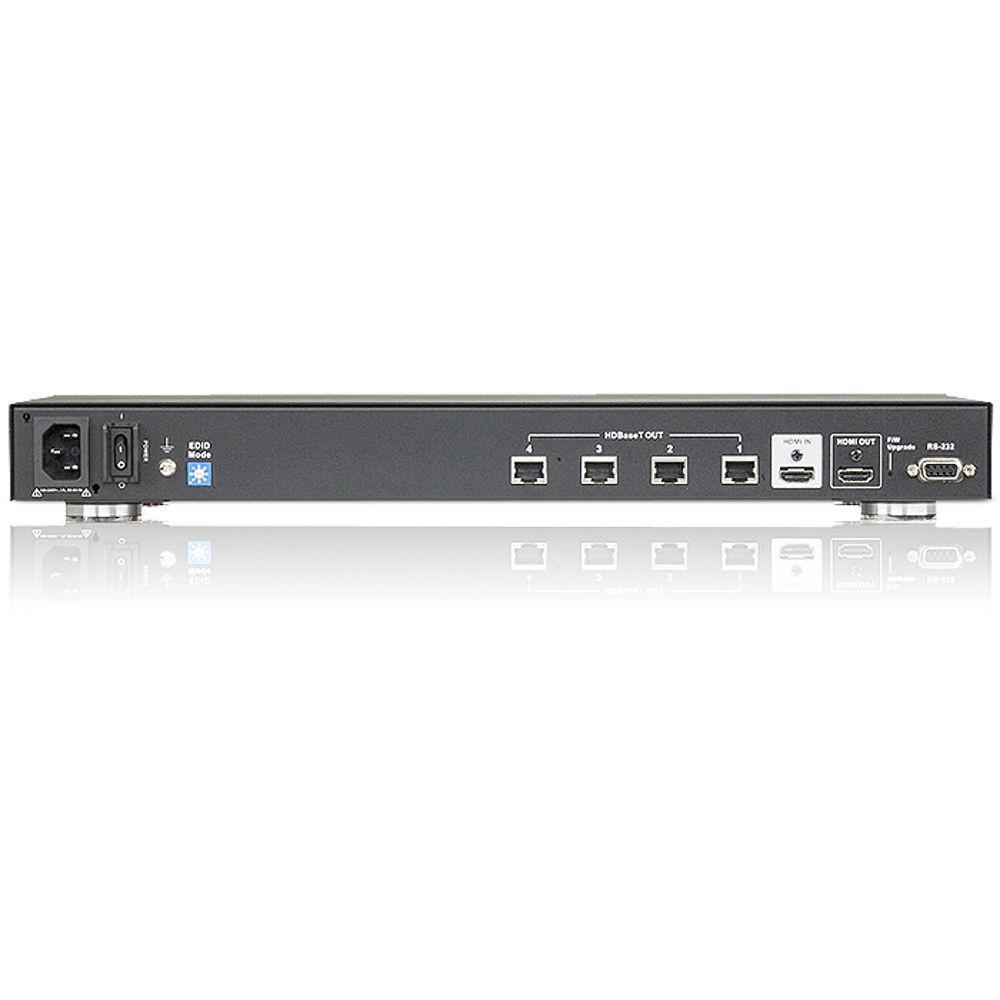

Technical parametersATEN VS1814T Specs | Connectors | Input: 1 x HDMI Type A, female
Output: 1 x HDMI Type A, female
HDBaseT Output: 4/8 x RJ-45, female
RS-232: 1 x DB-9, female
Power: 1 x Three-prong AC socket | | Switches | Power: 1 x Rocker
EDID Mode: 1 x Eight-position switch
EDID Learn: 1 x Button
Firmware Upgrade: 1 x Semi-recessed button | | LED Indicators | Power: 1 x Green
HDMI In: 1 x Green
HDMI Out: 1 x Green
EDID Learn: 1 x Green/red
HDBaseT Out: 4 x Green | | Video Resolution | 4K x 2K, 1080p | | Transmission Distance | 328' (100 m) | | Power Consumption | 120 to 230 V, 20 to 23 W | | Housing | Metal | | Dimensions (L x W x H) | 17.0 x 10.3 x 1.7" (43.2 x 26.1 x 4.4 cm) | | Weight | 7.7 lb (3.5 kg) | | | | Package Weight | 11.15 lb | | Box Dimensions (LxWxH) | 20.4 x 13.7 x 6.4" |
