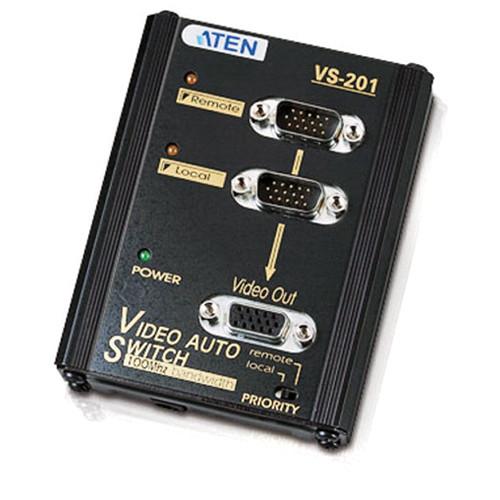

User Manual for ATEN VS201 2-Port Video Switch Click to enlarge the picture
Contents of the user manual for the ATEN VS201 2-Port Video Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
|
User manual for the ATEN VS201 2-Port Video Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VS201 2-Port Video Switch from ATEN is an automatic video switch for monitors using analog signals. A slide switch sets the priority for the incoming video signals for display on the monitor. This switch is capable of transmitting video signals up to 210’. - Displays the video output of two computers on a single monitor or projector
- Automatic incoming signal selection
- Quick and easy switching via slide switch
- Long-distance transmission of up to 213.2' 1
Please Note: Video content sent over very long distance using a VGA cable might result in slight degradation of the video signal and quality close - Supports video resolutions up to 1920 x 1440
- Supports VGA, XGA. SVGA, UXGA and multisync monitors
- Suitable for use in educational environments
UPC: 672792140082 In the Box ATEN VS201 2-Port Video Switch Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS201 2-Port Video Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS201 Specs | | | Video Input | 2 x HDB-15 male (blue) | | Video Output | 1 x HDB-15 female (blue) | | Power | 1 x DC Jack | | Switch | 1 x Slide Switch for priority selection | | | | Resolutions Supported | Up to 1920 x 1440 @ 60 Hz | | Bandwidth | 150 MHz | | | | Cable Distance | Up to 213.2' (65.0 m) | | Power Consumption | 5.3 VDC, 0.32 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Dimensions (L x W x H) | 4.1 x 3.1 x 1.1" (10.4 x 7.9 x 2.8 cm) | | Weight | 0.4 lb (0.2 kg) | | | | Package Weight | 0.95 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.5" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 35 owners. Add your rating and experience with the product.
