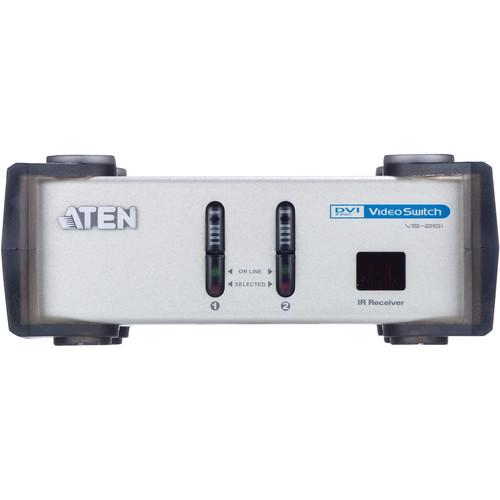

User Manual for ATEN VS261 2-Port DVI Video Switch Click to enlarge the picture
Contents of the user manual for the ATEN VS261 2-Port DVI Video Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
|
User manual for the ATEN VS261 2-Port DVI Video Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VS261 2-Port DVI Video Switch from ATEN combines a single link DVI switch with stereo audio, allowing you to switch between the digital video and audio outputs of multiple digital devices through a single DVI display and set of speakers. Toggle between the DVI input sources using the pushbuttons displayed on the switch's front panel, or by using the included IR remote control. It provides a video quality up to 1920 x 1200, supporting digital and analog video input for flat panel displays, data projectors, plasma displays, digital TVs, and set-top boxes, as well as traditional monitors and TVs. The power-on detection automatically switches to the next powered-on source whenever a DVI source is powered off. The ATEN switch supports both PC and Mac operating systems, and comes in a metal housing that features a stackable design for improving workspace organization. - Switches between the video output of two digital devices
- Fully compliant with DVI-Digital and DVI-Analog
- Switching via front panel pushbuttons or IR remote control
- 1920 x 1200 video quality
- Power on detection for DVI sources
UPC: 672792151590 In the Box ATEN VS261 2-Port DVI Video Switch Power Adapter IR Remote Control Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS261 2-Port DVI Video Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS261 Specs | | | Interface | 2 x DVI-I, female | | Impedance | 100 ohms | | Max Distance | 5.9' / 1.8 m | | | | Interface | 1 x DVI-I, female | | Impedance | 100 ohms | | | | Data Rate | 6.75 Gbps (2.25 Gbps per lane) | | Maximum Pixel Clock | 225 MHz | | Max Resolution | 1920 x 1200 | | Max Distance | 16.4' / 5.0 m | | | | Input | 2 x Stereo red/white RCA, female | | Output | 1 x Stereo red/white RCA, female | | | | Power | Connector: 1 x DC jack
Consumption: 5.3 VDC, 1.91 W | | Temperature | Operating: 32 to 122°F / 0 to 50°C
Storage: -4 to 140°F / -20 to 60°C | | Humidity (Non-condensing) | 0 to 80% RH | | Dimensions (LxWxH) | 5.5 x 3.5 x 2.2" / 14.0 x 8.8 x 5.6 cm | | Weight | 1.10 lb / 0.50 kg | | | | Package Weight | 1.8 lb | | Box Dimensions (LxWxH) | 9.5 x 6.3 x 2.4" |
