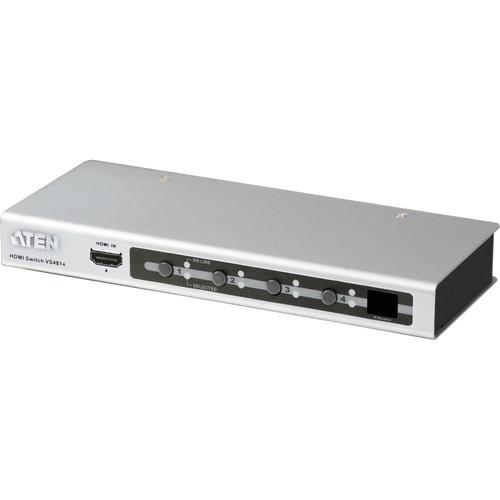

User Manual for ATEN VS481A 4-Port HDMI Switch Click to enlarge the picture
Contents of the user manual for the ATEN VS481A 4-Port HDMI Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VS481A 4-Port HDMI Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

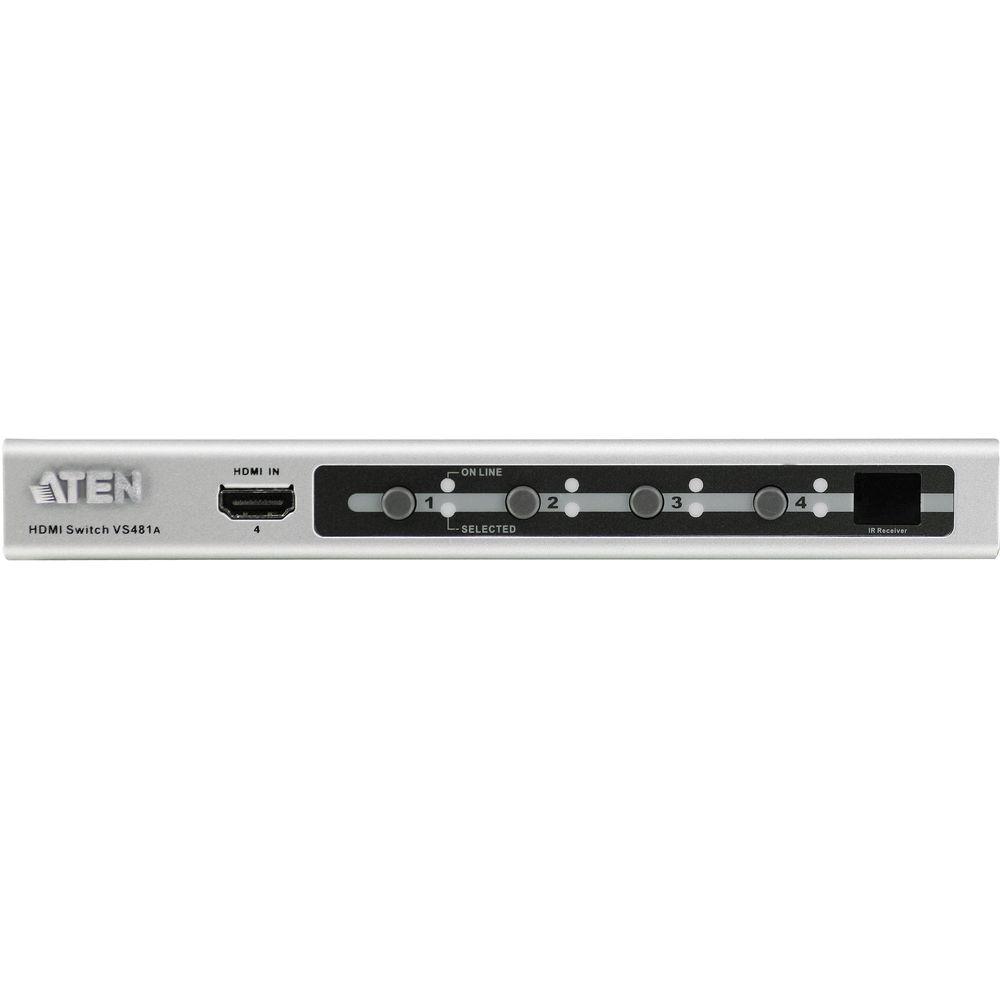

Product description The ATEN VS481A 4-Port HDMI Switch allows you to quickly and easily share an HDMI display with 4 HDMI input sources. The 4-port switch allows convenient switching between digital devices such as DVD players, satellite receivers, digital camcorder, and more. It allows you to select the desired input source via a remote control unit and push buttons located on the switch. - Allows up to four HDMI A/V sources to be connected to one HDMI display
- Allows you to toggle between A/V sources using remote control or front panel push buttons
- Supports 480p, 720p, 1080i, and 1080p (1920 x 1080) HDTV resolutions and VGA, SVGA, SXGA, UXGA (1600 x 1200), and WUXGA (1920 x 1200) computer resolutions
- Supports HDMI (3D, Deep Color), Dolby True HD, and DTS HD Master Audio
- Long distance transmission up to 65.6' (24 AWG)
- Built-in bi-directional RS-232 serial remote port for system control
- Power On Detection - if one of the HDMI source devices is powered off, the switch automatically switches to the next powered on device
- Plug-and-play operation, no software installation required
- Capable of supporting a Full HD display with signaling rates up to 2.25 Gb/s
- Supports 3D format and can be used with a PS3
- LED indication of video source devices
- Suitable for adding four HDMI inputs to your home theater system
UPC: 672792115868 In the Box ATEN VS481A 4-Port HDMI Switch Power Adapter 5.9' (1.8m) HDMI Cable IR Remote Control Unit Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS481A 4-Port HDMI Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

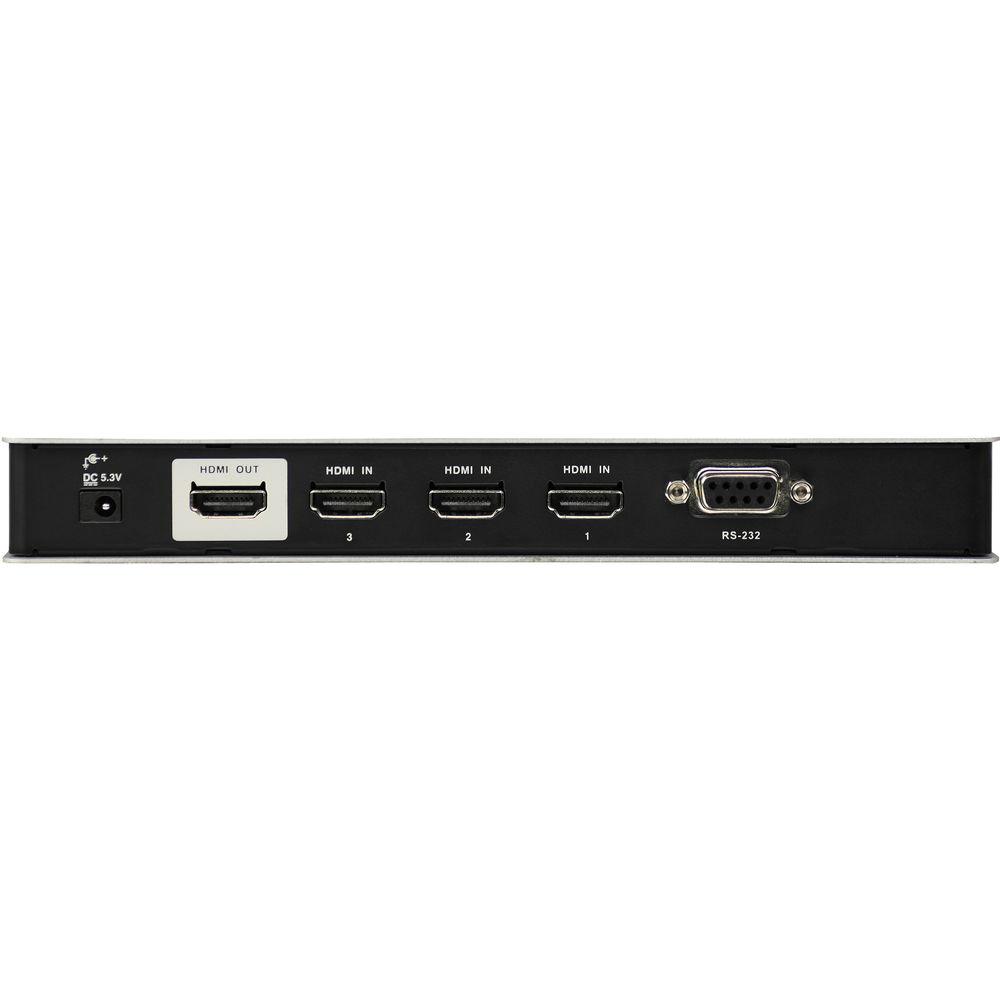

Technical parametersATEN VS481A Specs | | | HDMI Input | 4 x HDMI Type A female (black) | | HDMI Output | 1 x HDMI Type A female (Black) | | RS-232 | 1 x DB-9 female (black) | | Power | 1 x DC Jack | | LED Indicator | On Line: 4 x orange
Selected: 4 x green | | | | Resolution | HDTV Resolutions: of 480p, 720p, 1080i, 1080p (1920 x 1080)
Computer Resolutions: VGA, SVGA, SXGA, UXGA (1600 x 1200), WUXGA (1920 x 1200) | | | | Power Consumption | 5.3 VDC, 2.4 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, non-condensing | | Dimensions (L x W x H) | 7.9 x 3.2 x 0.9" (20.0 x 8.3 x 2.5 cm) | | Weight | 1.03 lb (0.47 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 11.2 x 6.8 x 2.7" |
