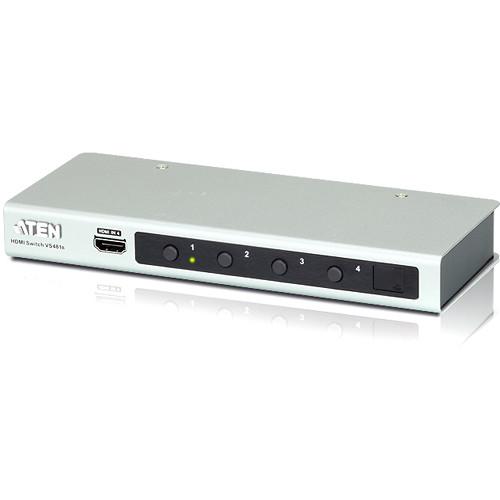

User Manual for ATEN VS481B Four-Port 4K2K HDMI Switch Click to enlarge the picture
Contents of the user manual for the ATEN VS481B Four-Port 4K2K HDMI Switch
- Product category: Routers & Switchers ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Routers & Switchers
 |
User manual for the ATEN VS481B Four-Port 4K2K HDMI Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|

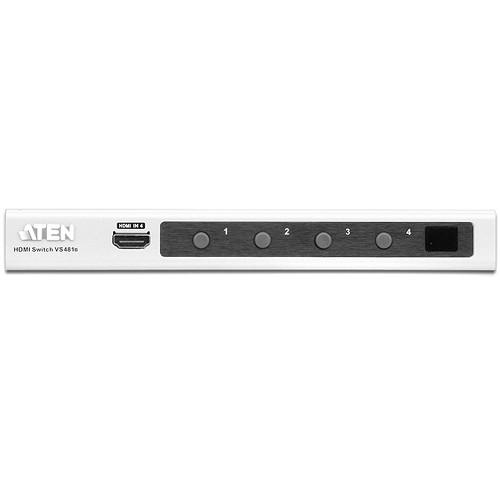

Product description The ATEN VS481B Four-Port 4K2K HDMI Switch supports Ultra HD 4Kx2K resolutions and allows connectivity of four sources to an HDMI display. The four-port switch allows transitioning between HDMI ports with efficiency, and features a built-in bidirectional RS-232 serial port for switch control via a high-end controller, PC, or home automation and theater software. LEDs are located on the switch's front panel to indicate which source device is selected. - Allows up to four HDMI A/V sources to be connected to one HDMI display
- Allows you to toggle between A/V sources using remote control or front panel pushbuttons, RS-232, or IR remote
- Supports 340 MHz bandwidth for ultra-high 4kx2k video
- Supports HDMI (3D, Deep Color, 4kx2k), Dolby True HD, and DTS HD Master Audio
- Long-distance transmission up to 49' (24 AWG)
- Built-in bidirectional RS-232 serial remote port for system control
- Auto switching mode for auto port selection
- Consumer Electronics Control support
- IR extension supported using an IR extension cable
- LED indication of video source devices
UPC: 672792005732 In the Box ATEN VS481B Four-Port 4K2K HDMI Switch Power Adapter HDMI Cable IR Remote Control Unit Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS481B Four-Port 4K2K HDMI Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

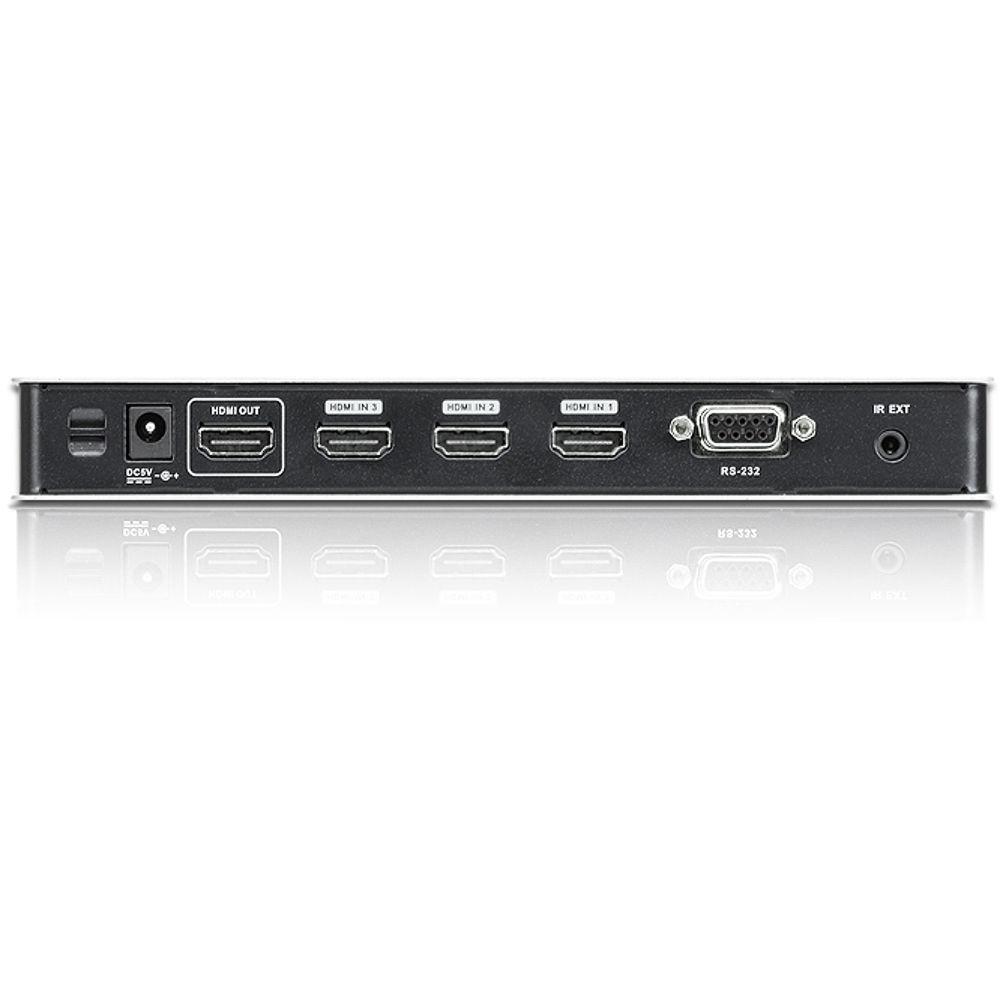

Technical parametersATEN VS481B Specs | | | Input | 4 x HDMI Type A, female | | Output | 1 x HDMI Type A, female | | RS-232 | 1 x DB-9, female | | Power | 1 x DC Jack | | IR Extender Port | 1 x 3.5 mm Mini stereo jack | | Switches | 4 x Port selection buttons | | LED Indicator | Selected: 4 x Green | | | | Resolution | HDTV: 480p, 720p, 1080i, 1080p, and up to 4k2k (4096 x 2160 or 3840 x 2160)
Computer: VGA, SVGA, SXGA, UXGA, WUXGA | | | | Power Consumption | 5 VDC, 5 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, Non-condensing | | Dimensions (L x W x H) | 7.9 x 3.2 x 0.9" (20.0 x 8.3 x 2.5 cm) | | Weight | 1.0 lb (0.5 kg) | | | | Package Weight | 1.9 lb | | Box Dimensions (LxWxH) | 9.4 x 6.3 x 2.4" |
