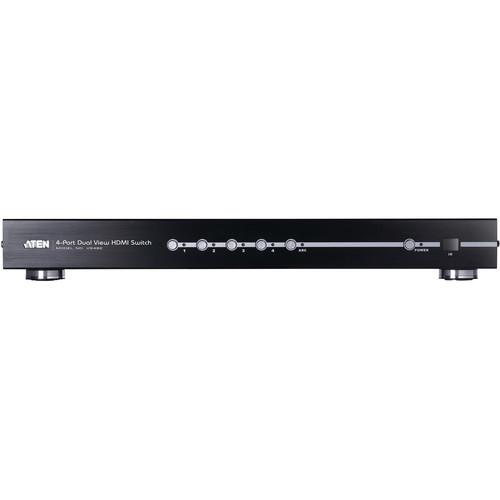

Product description The VS482 4-Port Dual View HDMI Switch with Audio from ATEN is designed to add HDMI capabilities to your home theater system. The VS482 supports four HDMI video input sources and two HDMI output displays, and is designed for two HDTV or A/V receiver applications. Compliant with HDMI standards, and designed to support 3D content, the VS482 also offers an Audio Return Channel function. The switch offers instant switching and has OSD display controls for video, audio, system configuration, and information. - Allows up to four HDMI A/V sources to be connected to two HDMI displays
- Supports HDMI, Dolby True HD, and DTS HD Master Audio
- Audio Return channel (ARC) function allows an HDMI cable to be connected to the ARC port for sending audio from a source device to an a/v receiver
- OSD for system configuration setting and information display
- Switching between HDMI input sources via front panel buttons or through the RS-232 serial control port
- EDID Expert technology allows setting up different configurations via EDID modes
- LEDs show input source devices for easy selection
- Supports HDTV resolutions of 480p, 720p, 1080i, 1080p, up to WUXGA (1920x1200)
- Extra audio from HDMI input signal that supports both optical and coaxial digital audio and one stereo audio output
UPC: 672792003189 In the Box ATEN VS482 4-Port Dual View HDMI Switch with Audio Power Adapter Mounting Kit IR Remote Control Limited 3-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS482 4-Port Dual View HDMI Switch with Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS482 Specs | | | HDMI Input | 4 x HDMI Type A, female | | HDMI Output | 2 x HDMI Type A, female | | Audio | Optical: 1 x Toslink
Coaxial: 1 x RCA
Stereo: 2 x RCA | | RS-232 | 1 x DB-9, female | | Power | 1 x DC jack | | IR Extender Port | 1 x 3.5mm Mini phone jack | | Switches | 4 x Port switch
1 x ARC selection
1 x Power button | | LED Indicator | Selected: 4 x Green
ARC Selected: 1 x Blue
Power: 1 x Green/orange | | | | Resolutions | 480p, 720p, 1080i, 1080p, 1920 x 1200 (WUXGA) | | | | Power Consumption | 5.3 VDC, 6.95 W | | Operating Temperature | 32 to 122°F (0 to 50°C) | | Storage Temperature | -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80% RH, Non-condensing | | Dimensions (L x W x H) | 17.2 x 6.2 x 1.7" / 43.7 x 15.9 x 4.4 cm | | Weight | 4.8 lb / 2.2 kg | | | | Package Weight | 6.6 lb | | Box Dimensions (LxWxH) | 21.5 x 9.4 x 4.7" |
