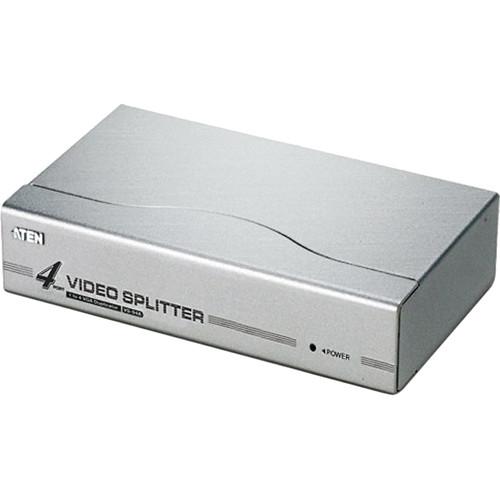

User Manual for ATEN VS94A 4-Port Video Splitter Click to enlarge the picture
Contents of the user manual for the ATEN VS94A 4-Port Video Splitter
- Product category: Distribution Amplifiers (DA's) ATEN
- Brand: ATEN
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for ATEN Distribution Amplifiers (DA's)
|
User manual for the ATEN VS94A 4-Port Video Splitter contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any ATEN product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official ATEN user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a ATEN product will considerably shorten its lifespan!
|
Product description The VS94A 4-Port Video Splitter from Aten is a signal boosting device that can duplicate the video signal from any VGA, XGA, SVGA, UXGA, or multisync monitor to 4 outputs. The splitter can enhance video signals for a broadcasting distance of up to 213' (65m). In addition, the unit can be cascaded to handle as many as 64 displays with bandwidth of up to 350 MHz, making them suitable for public broadcast systems. This splitter can be used in situations like broadcasting video information to public, monitoring harsh work environments from safe locations, and classroom or company training facilities. - One video input to 4 video outputs
- DDC, DDC2, DDC2B compatible (on port 1 only)
- Supports VGA, XGA, SVGA, UXGA, WUXGA, and multisync monitors
- Cascadable to 3 levels - provides up to 64 video signals
- Supports 350 MHz bandwidth
- Long distance transmission - up to 213' (65m)
- Good video quality - 1920 x 1440 @ 60 Hz
- Suitable for public broadcasting, remote monitoring, and classroom or training facilities
UPC: 672792000119 In the Box ATEN VS94A 4-Port Video Splitter 9 VDC Power Adapter Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the ATEN VS94A 4-Port Video Splitter in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersATEN VS94A Specs | Maximum Number of Displays | 4/64 64 displays when connection is made in 3-level cascading | | Connectors | Video In: 1 x HDB-15 male
Video Out: 2 x HDB-15 female
Power: 1 x DC jack | | LEDs | 1 x LED (orange) for power | | Video | Bandwidth: 350 MHz
Resolution: 1920 x 1440 @ 60 Hz | | Signal Range | Up to 213' (65 m) | | Power Consumption | 9 VDC, 2.03 W | | Temperature | Operating: 32 to 122°F (0 to 50°C)
Storage: -4 to 140°F (-20 to 60°C) | | Humidity | 0 to 80%, relative humid non-condensing | | Housing | Metal | | Dimensions | 7.87 x 2.95 x 1.77" (20.00 x 7.50 x 4.50 cm) | | Weight | 1.34 lb (0.61 kg) | | | | Package Weight | 1.85 lb | | Box Dimensions (LxWxH) | 9.528 x 6.457 x 2.441" |
Rating90% users recommend this product to others. And what about you?
This product has already been rated by 96 owners. Add your rating and experience with the product.
