Athlon Optics 1-4x24 Argos BTR Riflescope

Search your instruction manual in PDF to download

User Manual for Athlon Optics 1-4x24 Argos BTR Riflescope

Click to enlarge the picture
Athlon Optics 1-4x24 Argos BTR Riflescope Contents of the user manual for the Athlon Optics 1-4x24 Argos BTR Riflescope
  • Product category: Riflescopes Athlon Optics
  • Brand: Athlon Optics
  • Description and content of package
  • Technical information and basic settings
  • Frequently asked questions – FAQ
  • Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
  • Authorized service for Athlon Optics Riflescopes

User manual for the Athlon Optics 1-4x24 Argos BTR Riflescope contain basic instructions that need to be followed during installation and operation. Before starting your appliance, the user manual should be read through carefully. Follow all the safety instructions and warnings, and be guided by the given recommendations. User manual is an integral part of any Athlon Optics product, and if it is sold or transferred, they should be handed over jointly with the product. Following the instructions for use is an essential prerequisite for protecting health and property during use, as well as recognition of liability on the part of the manufacturer for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.

And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!



Product description

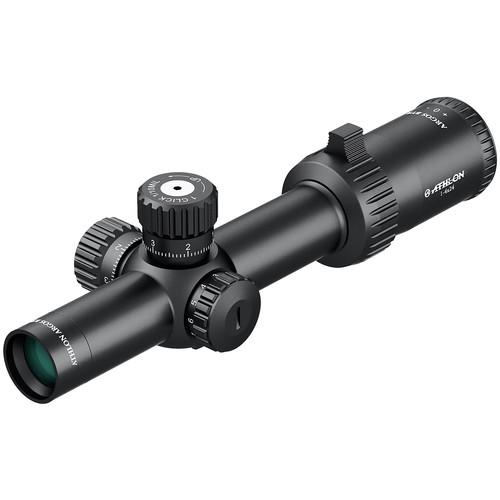

Assert yourself on the field using the Athlon 1-4x24 Argos BTR Riflescope with the AHSR14 MIL illuminated reticle. This tactical-style compact scope combines a 6061-T6 aluminum alloy construction with bright and clear optics. The optical system gives you a 1-4x zoom and features fully multi-coated lenses, optimized for maximum image brightness and true color across the entire visible spectrum. The exterior lenses are also treated with the proprietary XPL scratch-resistant coating to repel dirt and oil. For precision shot placements, this riflescope is enhanced with a first focal plane AHSR14 MIL reticle. This MRAD-based reticle consists of four tapered posts (with crossbars) that converge onto a broken target circle with a milling crosshair. To help you make corrections for ballistics and winds, the exposed (finger-operated) windage and elevation adjustments offer 40 MRAD ranges with 1/10 MRAD steps.

To handle well with heavy use and harsh environments, this riflescope is outfitted with a strong 6061-T6 aluminum housing and a single-piece 30mm maintube. It is argon-purged fogproof, waterproof, and impact resistant. In the middle of the scope, you will find exposed graduated turrets and an illumination control knob, all of which can be easily adjusted by hand and without the need to unscrew caps or covers. The eyepiece provides you with knurled focusing and zoom rings and a low-profile lever for fast zooming.
    Optical Performance
    • 1 - 4x optical zoom
    • 24mm objective diameter
    • Proprietary fully multi-coated optics maximize transmission and true color
    • XPL anti-scratch coating repels dirt and oil
    • 112 - 27' at 100 yards linear field of view
    • 13.4 - 5.4mm exit pupil
      Use and Handling
      • 1/10 MRAD impact point correction
      • 40 MRAD windage and elevation ranges
      • 12 MRAD per turn
      • 3.5" eye relief
        Construction Details
        • 6061-T6 aluminum housing
        • 30mm single-piece maintube
        • Exposed graduated turrets
        • Accommodates CR2032 battery
        • Argon-purged for fogproof performance
        • Waterproof
          AHSR14 MIL Reticle
          • 1st focal plane
          • Four tapered posts
          • Illuminated broken target circle with a milling crosshair
          • MRAD-based stadia
          UPC: 813869020405 In the Box Athlon Optics 1-4x24 Argos BTR Riflescope (AHSR14 MIL Illuminated Reticle, Matte Black)
        • CR2032 Battery
        • 2 x Flip-Up Lens Caps
        • Limited Lifetime Warranty
        Table of Contents




Upload User Manual

Have you got an user manual for the Athlon Optics 1-4x24 Argos BTR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals. Thank you, too, on behalf of other users.

To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Upload PDF user manual Upload DOC user manual
Please enter here the link to the user manual of this product:





OR

Enter here the file with the user manual of this product from your computer/phone:
(60MB max; Permitted formats: PDF)

0%


Technical parameters

Athlon Optics 214054 Specs

Magnification 1 to 4x
Objective Lens Diameter 24 mm
Field of View 1x: 112' @ 100 yd / 37.3 m @ 100 m
4x: 27' @ 100 yd / 9 m @ 100 m
Exit Pupil Diameter 1x: 13.4 mm
4x: 5.4 mm
Eye Relief 3.5" / 89 mm
Reticle Type AHSR14 MIL Reticle (First Focal Plane)
Impact Point Correction 1/10 MRAD per Click
Windage Adjustment 40 MRAD
Elevation Adjustment 40 MRAD
Parallax Correction Yes, 100 yd / 91.4 m
Water Resistance Waterproof
Fogproof Yes, Argon Filled
Maintube Diameter 30 mm
Battery 1 x CR2032
Material Aluminum
Dimensions Length: 9.5" / 24.1 cm
Weight 20.5 oz / 581.2 g
Package Weight 2.575 lb
Box Dimensions (LxWxH) 16.7 x 4.45 x 4.0"
