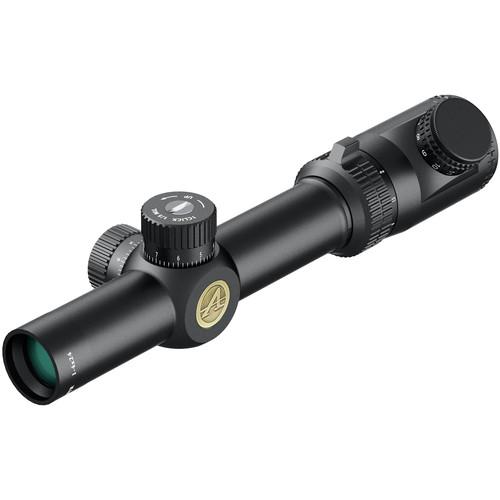

User Manual for Athlon Optics 1-4x24 Talos BTR Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 1-4x24 Talos BTR Riflescope
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 1-4x24 Talos BTR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Athlon's 1-4x24 Talos BTR Riflescope combines a tactical-style body design with a 2nd focal plane reticle. Its optics give you a 1-4x zoom, bright and clear fully multi-coated lenses, a 110 - 26' at 100 yards linear field of view, and a 4.5 - 3.5" eye relief. To help you with precision aiming, the scope incorporates a AHSR 14 illuminated reticle, featuring four tapered short posts and a fine milling crosshair. The reticle is powered by one included CR2032 battery and has a parallax-free range at 100 yards. To combat the effects of ballistic drop and wind drift, the scope provides 40 MRAD windage and elevation with 1/5 MRAD clicks.
For strength and durability, the aluminum housing is engineered with a 30mm maintube and features fogproof and waterproof performance. Other highlights include exposed graduated windage and elevation turrets with easy-to-grip knobs, and a fast-focus eyepiece with a low-profile zooming lever and a built-in rheostat knob. - Optical Performance
-
- 1 - 4x zoom magnification
- 24mm objective diameter
- Fully multi-coated optics
- 110 - 26' at 100 yards linear field of view
- 22.8 - 6.6mm exit pupil
- Use and Handling
-
- 1/5 MRAD impact point correction
- 40 MRAD windage and elevation
- 4.5 - 3.5" eye relief
- Construction Details
-
- Aluminum housing
- 30mm maintube diameter
- Graduated exposed turrets with knurled knobs
- Eyepiece with a zoom lever and a reticle brightness control
- Accommodates one CR2032 battery
- Nitrogen-purged fogproof
- Impact resistant
- Waterproof
- Reticle
-
- AHSR 14 reticle
- 2nd focal plane
- Four tapered posts
- Illuminated milling crosshair
UPC: 813869020702 In the Box Athlon Optics 1-4x24 Talos BTR Riflescope (AHSR14 MIL Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 1-4x24 Talos BTR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 215025 Specs | | | Magnification | 1 to 4x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 110' @ 100 yd / 36.7 m @ 100 m
4x: 26' @ 100 yd / 8.7 m @ 100 m | | Exit Pupil Diameter | 1x: 22.8 mm
4x: 6.6 mm | | Eye Relief | 3.5 to 4.5" / 89 to 114 mm | | | | Reticle Type | AHSR 14 Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/5 MRAD per Click | | Windage Adjustment | 40 MRAD | | Elevation Adjustment | 40 MRAD | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 9.2" / 23.4 cm | | Weight | 18 oz / 510.3 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 88 owners. Add your rating and experience with the product.
