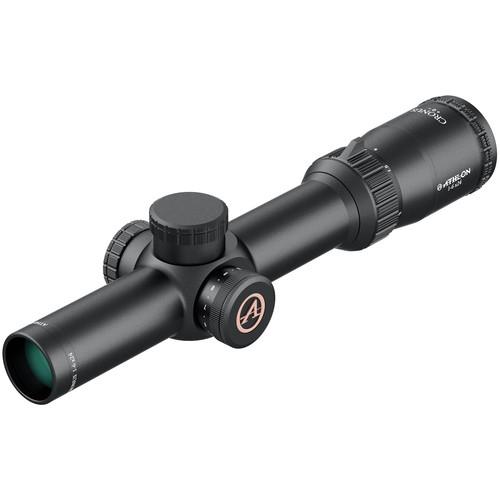

User Manual for Athlon Optics 1-6x24 Cronus BTR Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 1-6x24 Cronus BTR Side
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 1-6x24 Cronus BTR Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Optimized for three-gun competitions and tactical applications, Athlon's 1-6x24 Cronus BTR Riflescope can also be used for your hunting adventures. This scope combines the strength and durability of 6061-T6 aluminum construction with the clarity and detail of high-definition (HD) optics in a single package. The optical system features fully multi-coated elements for higher detail and lower glare, a 1-6x zoom for an extended magnification range, and the proprietary XPL coatings on exterior lenses for protection from scratches, dirt, and oil. Also noteworthy is a second focal plane ATSR2 MOA illuminated reticle, which is set to be parallax-free at 100 yards. It resembles a modified German #4 style, with three thin posts occupying the lower half and a tree of ballistic and wind stadia under the center. The posts approach but do not touch the 1.4 MOA illuminated target dot, which should be zeroed at 200 yards, and the vertical markings provide ballistic references for 300, 400, 500, and 600 yards.
To deliver durability and strength, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 30mm maintube. It features exposed direct-dial windage and elevation turrets with fine knurling for a sure grip and fast and precise adjustments. The scope's eyepiece also has finely knurled rings and a low-profile zoom lever. - Optical Performance
-
- 1 - 6x zoom magnification
- 24mm objective diameter
- Fully multi-coated lenses produce bright, true color images
- High-definition (HD) optical glass deliver high contrast and detail
- 11.4 - 4.0mm exit pupil
- 3.6 - 4.0" eye relief
- Use and Housing
-
- 1/2 MOA impact point correction
- 120 MOA windage and elevation
- 50 MOA per turn
- Construction Details
-
- 6061-T6 aluminum
- 30mm maintube diameter
- Exposed graduated direct-dial, locking turrets
- Side focus parallax corrector
- High-precision erector system
- Accepts CR2032 battery
- Argon-purged, fogproof
- Waterproof
- ATSR2 Reticle
-
- 2nd focal plane
- Modified German #4 style
- Three thin posts
- Tree-like ballistic and windage stadia under the center
- Illuminated 1.4 MOA red target dot for zeroing at 200 yards
- Vertical dots and holes correspond to 300, 400, 500, and 600 yard marks
Compatibility: - Reticle is intended to help with three-gun competitions
- For Hornady 68 grain, Sierra 69 grain, and Nato 5.56/.223
UPC: 813869021174 In the Box Athlon Optics 1-6x24 Cronus BTR Side Focus Riflescope (ATSR2 MOA Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 1-6x24 Cronus BTR Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 210200 Specs | | | Magnification | 1 to 6x | | Objective Lens Diameter | 24 mm | | Field of View | 1x: 106.9' @ 100 yd / 35.6 m @ 100 m
6x: 17.7' @ 100 yd / 5.9 m @ 100 m | | Exit Pupil Diameter | 1x: 11.4 mm
6x: 4 mm | | Eye Relief | 3.6 to 4" / 92 to 101.6 mm | | | | Reticle Type | ATSR2 MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/2 MOA per Click | | Windage Adjustment | 120 MOA | | Elevation Adjustment | 120 MOA | | Parallax Correction | Yes, 100 yd / 91.4 m | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 10.6" / 26.9 cm | | Weight | 18.8 oz / 532.9 g |
