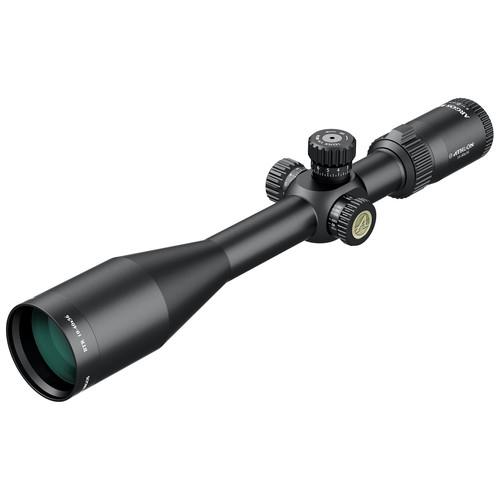

User Manual for Athlon Optics 10-40x56 Argos BTR Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 10-40x56 Argos BTR Side
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 10-40x56 Argos BTR Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Assert yourself on the field using Athlon's 10-40x56 Argos BTR Riflescope with a BLR MOA reticle. This long-range, precision shooter's scope combines 6061-T6 aluminum alloy construction with bright and clear optics. The optical system gives you a high 10-40x zoom and features fully multi-coated lenses, optimized for maximum image brightness and true color across the entire visible spectrum. A special highlight is its extra-wide 56mm objective lens that gathers more light than most average scopes, and delivers brighter images even in extremely low light, like at dusk or dawn. The exterior lenses are also treated with the proprietary XPL scratch-resistant coating to repel dirt and oil. For precision shot placements, this riflescope is enhanced with a second focal plane BLR MOA reticle, which is intended to help you in benchrest and F-Class shooting applications. Its pattern consists of three thin posts in the lower half of the reticle and one very short post just above the center, with all posts featuring high-density MOA-based milling marks. You can have parallax-free aiming from 15 yards to infinity by adjusting a side focus knob, and make ballistic and wind shift corrections using windage and elevation turrets with 60 MOA ranges and 1/4 MOA steps.
To handle well with heavy use and in harsh environments, this telescopic sight is outfitted with a strong 6061-T6 aluminum housing and a 30mm maintube. It is argon-purged fogproof, waterproof, and impact resistant. In the middle of the scope, you will find exposed graduated turrets and a side focus parallax control knob, all of which can be easily adjusted by hand and without the need to unscrew caps or covers. The eyepiece provides you with knurled focusing and zoom rings and a low-profile lever for fast zooming. - Optical Performance
-
- 10-40x high magnification range
- 56mm objective diameter delivers the brightest images in challenging light conditions
- Proprietary fully multi-coated optics maximize transmission and true color
- XPL anti-scratch coating repels dirt and oil
- 12.6 - 3.1' at 100 yards linear field of view
- Parallax correction from 15 yards to infinity
- 5.6 - 1.4mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation ranges
- 12 MOA per turn
- 3.0" eye relief
- Construction Details
-
- 6061-T6 aluminum housing
- 30mm single-piece maintube
- Exposed graduated turrets
- Side focus parallax corrector
- Argon-purged for fogproof performance
- Impact resistant
- Waterproof
- Reticle
-
- BLR MOA reticle
- 2nd focal plane
- For benchrest and F-Class shooting applications
- Three thin milling posts in the lower half of the reticle
- One short post above the center
UPC: 813869020931 In the Box Athlon Optics 10-40x56 Argos BTR Side Focus Riflescope (BLR MOA Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 10-40x56 Argos BTR Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 214070 Specs | | | Magnification | 10 to 40x | | Objective Lens Diameter | 56 mm | | Field of View | 10x: 12.6' @ 100 yd / 4.2 m @ 100 m
40x: 3.1' @ 100 yd / 1 m @ 100 m | | Exit Pupil Diameter | 10x: 5.6 mm
40x: 1.4 mm | | Eye Relief | 3" / 75 mm | | | | Reticle Type | BLR MOA Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 15 yd / 13.7 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | None | | Dimensions | Length: 16.3" / 41.4 cm | | Weight | 30.3 oz / 658.9 g | | | | Package Weight | 3.35 lb | | Box Dimensions (LxWxH) | 20.1 x 4.3 x 4.0" |
