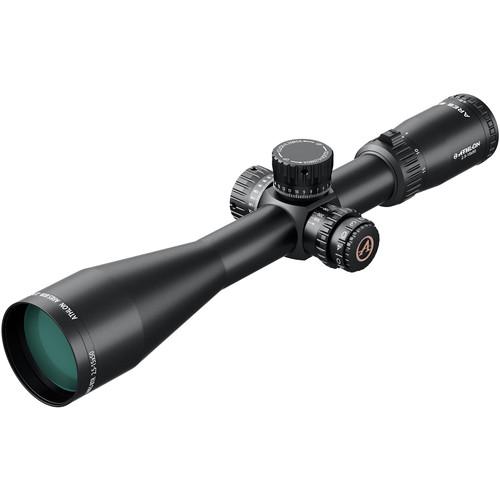

User Manual for Athlon Optics 2.5-15x50 Ares BTR Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 2.5-15x50 Ares BTR Riflescope
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 2.5-15x50 Ares BTR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Athlon's 2.5-15x50 Ares BTR Riflescope combines the strength and durability of 6061-T6 aluminum construction with the contrast and detail of high-definition (HD) optics in a single package. The optical system also features fully multi-coated elements for improved brightness and low glare, extended 6x zoom for versatility, and the APLR3 MOA illuminated reticle, which operates parallax-free from 10 yards to infinity. The first focal plane location allows the reticle to match the scale of targets and backgrounds as you zoom in and out, and serve correct compensation values, without the necessity to do any additional math. Its pattern features four medium posts and an illuminated crosshair with dense, MOA-based stadia and a tree-shaped grid of ballistic and wind compensation points below the center.
To bring durability and strength to the table, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 30mm maintube with a high-precision erector system. It provides exposed and graduated direct dial windage and elevation turrets with a precise zero stop system. Other enhancements include a reticle brightness knob and the eyepiece's low-profile zoom lever. - Optical Performance
-
- 2.5 - 15x zoom magnification
- 50mm objective delivers adequate image brightness in most lighting conditions
- High-definition (HD) optical glass transmits brighter and sharper images
- Fully multi-coated optics improve brightness and reduce glare
- 41.8 - 6.8' at 100 yards linear field of view
- 11.1 - 3.3mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 100 MOA windage and elevation
- Parallax-free operation from 10 yards to infinity
- 3.9" eye relief
- Construction Details
-
- 6061-T6 aluminum alloy
- 30mm single-piece maintube
- Exposed, graduated, direct-dial turrets with precision zero stops
- High-precision erector system
- Side focus parallax corrector
- Accommodates CR2032 battery
- Argon-purged fogproof
- Impact resistant
- Waterproof
- APLR3 MOA Illuminated Reticle
-
- 1st focal plane
- Four medium posts
- Illuminated crosshair with dense MOA stadia
- Enumerated tree-like grid of points under the center
UPC: 813869020900 In the Box Athlon Optics 2.5-15x50 Ares BTR Riflescope (APLR3 MOA Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 2.5-15x50 Ares BTR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 212001 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 2.5x: 41.8' @ 100 yd / 13.9 m @ 100 m
15x: 6.8' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 2.5x: 11.1 mm
15x: 3.3 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | APLR3 MOA Reticle (First Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 100 MOA | | Elevation Adjustment | 25 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 13.8" / 35.1 cm | | Weight | 27.3 oz / 773.9 g | | | | Package Weight | 3.68 lb | | Box Dimensions (LxWxH) | 16.7 x 4.55 x 4.35" |
