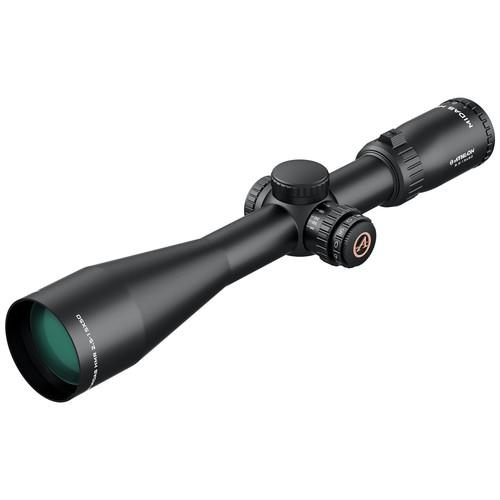

User Manual for Athlon Optics 2.5-15x50 Midas HMR Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 2.5-15x50 Midas HMR Riflescope
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 2.5-15x50 Midas HMR Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Athlon's 2.5-15x50 Midas HMR Riflescope combines the strength and durability of 6061-T6 aluminum construction with the contrast and detail of high-definition (HD) optics in a single package. The high-definition optical glass greatly improves transmission of light, delivering brighter and sharper images. The optical system also features fully multi-coated elements for improved brightness and low glare, extended 6x zoom for versatility, and the second focal plane BDC 600A illuminated reticle for precision, which can operate parallax-free from 10 yd to infinity. It's outline features four tapered posts and a fully illuminated thin cross-shaped crosshair with ballistic marks out to 600 yards.
To bring durability and strength to the table, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 30mm maintube. It provides exposed graduated windage, elevation, and reticle brightness knobs and an eyepiece with a low-profile zoom lever. - Optical Performance
-
- 2.5 - 15x zoom magnification
- 50mm objective delivers adequate image brightness in most lighting conditions
- HD glass increases transmission of light, resulting in brighter and sharper images
- Fully multi-coated optics improve brightness and reduce glare
- 41.8 - 6.8' at 100 yards linear field of view
- 11 - 3.3mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation
- Parallax-free operation from 10 yards to infinity
- 3.9" eye relief
- Construction Details
-
- 6061-T6 aluminum
- 30mm maintube diameter
- Capped, low-profile hunting turrets
- Side focus parallax corrector
- Accommodates CR2032 battery
- Argon-purged fogproof
- Impact resistant
- Waterproof
- BDC 600A Reticle
-
- 2nd focal plane
- Four tapered posts
- Fully illuminated thin cross-shaped crosshair with ballistic marks out to 600 yards
Compatibility - .223 Winchester 55 grain
- .243 Winchester 95 grain
- .25-06 Remington 115 grain
- .270 Winchester 130 grain
- .270 Winchester Short Magnum (WSM) 150 grain
- 7mm Remington Magnum 150 grain
- 7mm Winchester Short Magnum (WSM) 150 grain
- .300 Winchester Magnum 180 grain
- .300 Winchester Short Magnum (WSM) 180 grain
- .308 Winchester 150 grain
- .338 Winchester 200 grain
UPC: 813869021204 In the Box Athlon Optics 2.5-15x50 Midas HMR Riflescope (BDC 600A Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 2.5-15x50 Midas HMR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 213051 Specs | | | Magnification | 2.5 to 15x | | Objective Lens Diameter | 50 mm | | Field of View | 2.5x: 41.8' @ 100 yd / 13.9 m @ 100 m
15x: 6.8' @ 100 yd / 2.2 m @ 100 m | | Exit Pupil Diameter | 2.5x: 11.1 mm
15x: 3.3 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | BDC 600A Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 13.8" / 35 cm | | Weight | 26 oz / 737.1 g |
