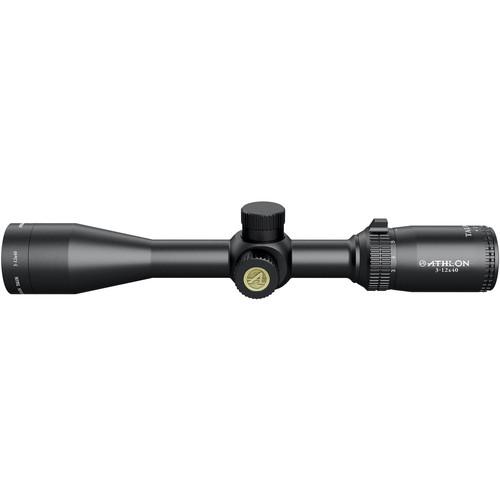

User Manual for Athlon Optics 3-12x40 Talos SF Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 3-12x40 Talos SF Riflescope
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 3-12x40 Talos SF Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Athlon's 3-12x40 Talos SF Riflescope is optimized for hunting in various lighting conditions, including in low light, like at dusk or dawn. The fully multi-coated optics feature a 40mm objective, 3-12x zoom magnification, a second focal plane Center X reticle, and a parallax-free range that is adjustable from 10 yards to infinity. This reticle offers users four medium tapered posts with a thin crosshair.
Alongside clear and bright optics, the scope features a durable fogproof and waterproof aluminum housing with a 1" maintube. It is nitrogen-purged to be moisture free and to prevent fogging-up in changing temperatures. For making adjustments, the scope provides capped turrets and a side focus parallax correction knob. The eyepiece bears a focusing ring (with a low-profile zoom lever) and a rheostat for changing the reticle's brightness. - Optical Performance
-
- 3 - 12x zoom magnification
- 40mm objective delivers adequate image brightness in most lighting conditions
- Fully multi-coated optics improve image brightness and reduce glare
- 34.1 - 8.9' at 100 yards linear field of view
- Parallax free from 10 yards to infinity
- 13.6 - 3.4mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 60 MOA windage and elevation
- 3.8 - 3.4" eye relief
- Construction Details
-
- Anodized aluminum
- 1" maintube diameter
- Capped windage and elevation turrets
- Side focus parallax corrector knob
- Nitrogen-purged, fogproof
- Impact resistant
- Waterproof
- Center X Reticle
-
- Four medium tapered posts with a thin crosshair
UPC: 813869020634 In the Box Athlon Optics 3-12x40 Talos SF Riflescope (Center X Reticle, Matte Black) - Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 3-12x40 Talos SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 215003 Specs | | | Magnification | 3 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 3x: 34.1' @ 100 yd / 11.3 m @ 100 m
12x: 8.9' @ 100 yd / 2.9 m @ 100 m | | Exit Pupil Diameter | 3x: 13.6 mm
12x: 3.4 mm | | Eye Relief | 3.4 to 3.8" / 86 to 96 mm | | | | Reticle Type | Center X Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 60 MOA | | Elevation Adjustment | 60 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Material | Aluminum | | Dimensions | Length: 12" / 30.5 cm | | Weight | 16.2 oz / 459.3 g |
Rating70% users recommend this product to others. And what about you?
This product has already been rated by 71 owners. Add your rating and experience with the product.
