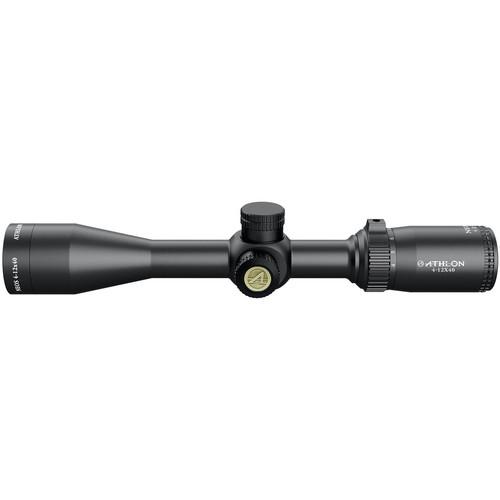

User Manual for Athlon Optics 4-12x40 Neos Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 4-12x40 Neos Riflescope
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 4-12x40 Neos Riflescope contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Get on target with Athlon's 4-12x40 Neos Riflescope. This scope has all the necessary characteristics of a hunting scope, and more. The Neos series offers users waterproof and fogproof performance, a single-piece 1" maintube, and knurled capped windage and elevation turrets. It also provides a 2nd focal plane BDC 22 Rimfire reticle featuring four tapered posts and a cross-like crosshair with ballistic dots. Additionally, for precise aiming the riflescope offers a parallax-free range from 10 yards to infinity, and for clarity, brightness, and reduced glare, the lenses are fully multi-coated. - Optical Performance
-
- 4 - 12x zoom magnification
- 40mm objective delivers adequate image brightness in most lighting conditions
- Fully multi-coated optics improve image brightness and reduce glare
- 27.3 - 8.9' at 100 yards linear field of view
- Parallax free from 10 yards to infinity
- 10 - 3.3mm exit pupil
- Use and Handling
-
- 1/4 MOA impact point correction
- 80 MOA windage and elevation
- 3.4 - 3.2" eye relief
- Construction Details
-
- Anodized aluminum
- 1" single-piece maintube
- Capped windage and elevation turrets
- Side focus parallax corrector knob
- Nitrogen-purged, fogproof
- Eyepiece with a zoom lever
- Impact resistant
- Waterproof
- BDC 22 Rimfire Reticle
-
- 2nd focal plane
- Four tapered posts
- Cross-like crosshair with ballistic dots
UPC: 813869021297 In the Box Athlon Optics 4-12x40 Neos Riflescope (BDC 22 Rimfire Reticle, Matte Black) - Lens Cleaning Cloth
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 4-12x40 Neos Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 216010 Specs | | | Magnification | 4 to 12x | | Objective Lens Diameter | 40 mm | | Field of View | 4x: 27.3' @ 100 yd / 9.1 m @ 100 m
12x: 8.9' @ 100 yd / 2.9 m @ 100 m | | Exit Pupil Diameter | 4x: 10 mm
12x: 3.3 mm | | Eye Relief | 3.2 to 3.4" / 81.3 to 86 mm | | | | Reticle Type | BDC 22 Rimfire Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/4 MOA per Click | | Windage Adjustment | 80 MOA | | Elevation Adjustment | 80 MOA | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 1" | | Battery | None | | Material | Aluminum | | Dimensions | Length: 12.4" / 31.5 cm | | Weight | 18.1 oz / 513.1 g |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 95 owners. Add your rating and experience with the product.
