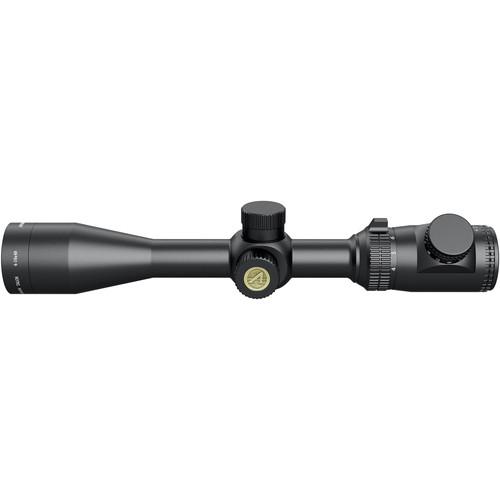

User Manual for Athlon Optics 4-14x44 Talos BTR Side Focus Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 4-14x44 Talos BTR Side
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 4-14x44 Talos BTR Side contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|
Product description Optimized for high performance in low light, the Athlon 4-14x44 Talos BTR Side Focus Riflescope manages this task with its wide 44mm objective, clear and bright lenses, and full multi-coatings that are made to maximize light transmission and true image color. The optical system also empowers you with a 4-14x zoom for precision and parallax-free performance, starting from 10 yards. Also noteworthy is the APLR2 MIL illuminated reticle, located in the first focal plane. Its pattern features four medium posts and an illuminated crosshair with dense, MRAD-based stadia and a tree-shaped grid of ballistic and wind compensation points below the center. The first focal plane location allows the reticle to match the scale of targets and backgrounds as you zoom in and out and serve correct compensation values, without the necessity to do any additional math.
Alongside clear and bright optics, the scope features a durable, fogproof, and waterproof aluminum housing with a 30mm maintube. It is nitrogen-purged to be moisture free and to prevent fogging-up when the temperature suddenly changes. For making adjustments, the scope provides exposed graduated turrets and a side focus parallax correction knob. A special eyepiece bears a focusing ring with a low-profile zoom lever and a rheostat for changing the reticle's brightness. - Optical Performance
-
- 4 - 14x zoom magnification
- 44mm wide objective aperture provides bright images in most lighting conditions
- Fully multi-coated optics improve image brightness and reduce glare
- 11 - 3.1mm exit pupil diameter
- 3.2 - 3.15" eye relief
- Use and Handling
-
- 1/10 MRAD impact point correction
- 20 MRAD windage and elevation
- Parallax correction from 10 yd to infinity
- Construction Details
-
- Anodized aluminum housing
- 30mm maintube diameter
- Accommodates CR2032 battery
- Exposed graduated windage and elevation turrets
- Side focus parallax knob
- Nitrogen-purged, fogproof
- Waterproof
- APLR2 Reticle
-
- 1st focal plane
- Four medium posts
- Illuminated crosshair with dense MRAD stadia
- Tree-like grid of points under the center
UPC: 813869020719 In the Box Athlon Optics 4-14x44 Talos BTR Side Focus Riflescope (APLR2 MIL Illuminated Reticle) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 4-14x44 Talos BTR Side Focus Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 215028 Specs | | | Magnification | 4 to 14x | | Objective Lens Diameter | 44 mm | | Field of View | 4x: 27.2' @ 100 yd / 9.1 m @ 100 m
14x: 7.9' @ 100 yd / 2.6 m @ 100 m | | Exit Pupil Diameter | 4x: 11 mm
14x: 3.1 mm | | Eye Relief | 3.1 to 3.2" / 80 to 82 mm | | | | Reticle Type | APLR2 Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 20 MRAD | | Elevation Adjustment | 20 MRAD | | Parallax Correction | Yes, 10 yd / 9.1 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Nitrogen Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 12.9" / 32.8 cm | | Weight | 23.6 oz / 669.1 g | | | | Package Weight | 2.52 lb | | Box Dimensions (LxWxH) | 15.95 x 3.6 x 3.4" |
