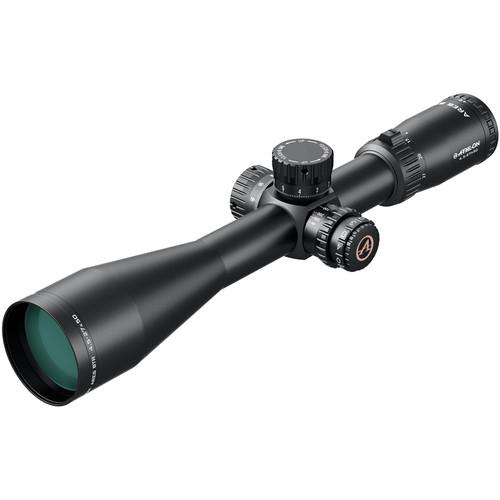

Product description Athlon's 4.5 - 27x50 Ares BTR SF Riflescope combines the strength and durability of 6061-T6 aluminum construction with the contrast and detail of high-definition (HD) optics in a single package. The wide 50mm objective diameter delivers bright and clear images even in challenging light conditions, allowing shooters to extend their activities to dawn and dusk. The optical system also features fully multi-coated elements for improved brightness and low glare, extended 6x zoom for versatility, and the APLR3 MIL illuminated reticle, which operates parallax-free from 25 yards to infinity. The first focal plane location allows the reticle to match the scale of targets and backgrounds as you zoom in and out, and serves correct compensation values, without the necessity to do any additional math. Its pattern features four medium posts and an illuminated crosshair with dense, MRAD-based stadia and a tree-shaped grid of ballistic and wind compensation points below the center
To bring durability and strength to the table, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 30mm maintube with a high-precision erector system. It offers exposed and graduated direct dial windage and elevation turrets with a precise zero stop system. Other enhancements include a reticle brightness knob and the eyepiece's low-profile zoom lever. - Optical Performance
-
- 4.5 - 27x zoom magnification
- 50mm objective delivers adequate image brightness in most lighting conditions
- High-definition (HD) optical glass transmits brighter and sharper images
- Fully multi-coated optics improve brightness and reduce glare
- 22.7 - 3.8' at 100 yards linear field of view
- 11.1 - 1.9mm exit pupil
- Use and Handling
-
- 1/10 MRAD impact point correction
- 24 MRAD windage and elevation
- Parallax-free operation from 25 yards to infinity
- 3.9" eye relief
- Construction Details
-
- 6061-T6 aluminum alloy
- 30mm single-piece maintube
- Exposed, graduated, direct-dial turrets with precision zero stops
- High-precision erector system
- Side focus parallax corrector
- Uses a CR2032 battery
- Argon-purged fogproof
- Impact resistant
- Waterproof
- APLR3 MIL Reticle
-
- 1st focal plane
- Four medium posts
- Illuminated crosshair with dense MRAD stadia

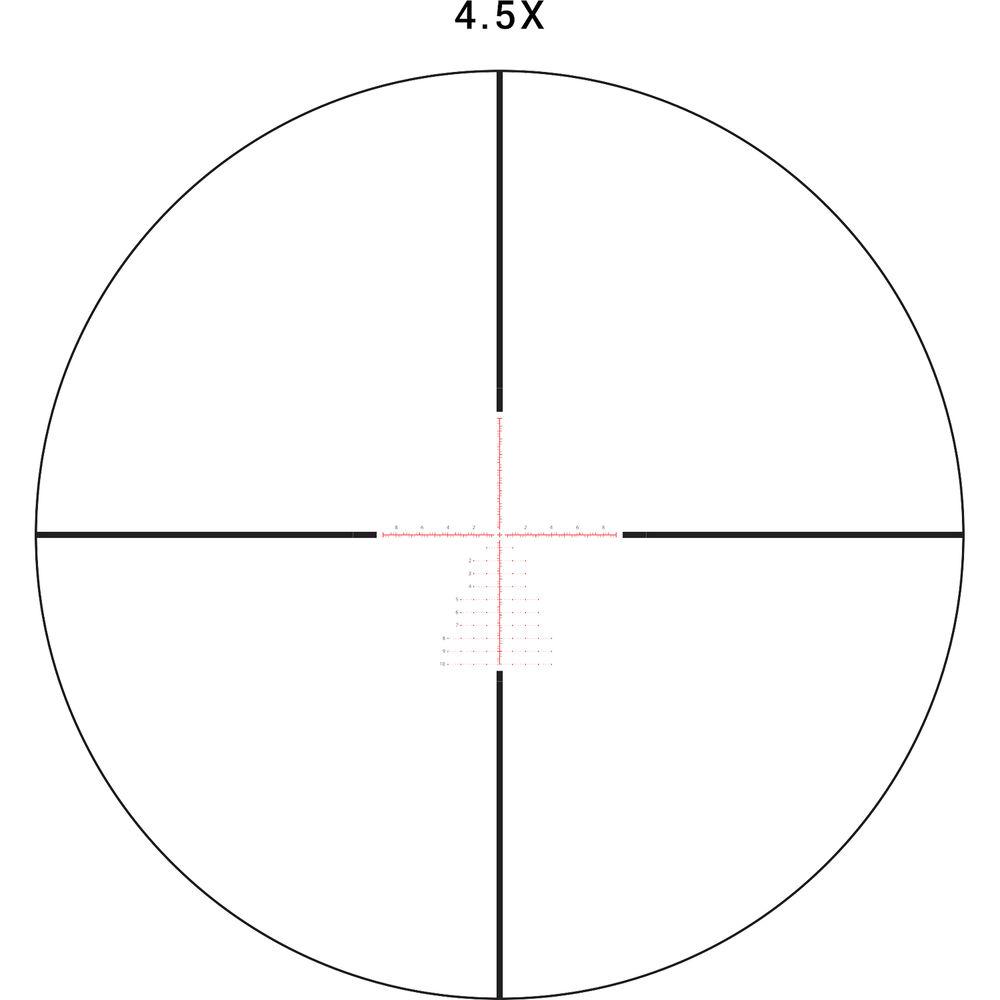

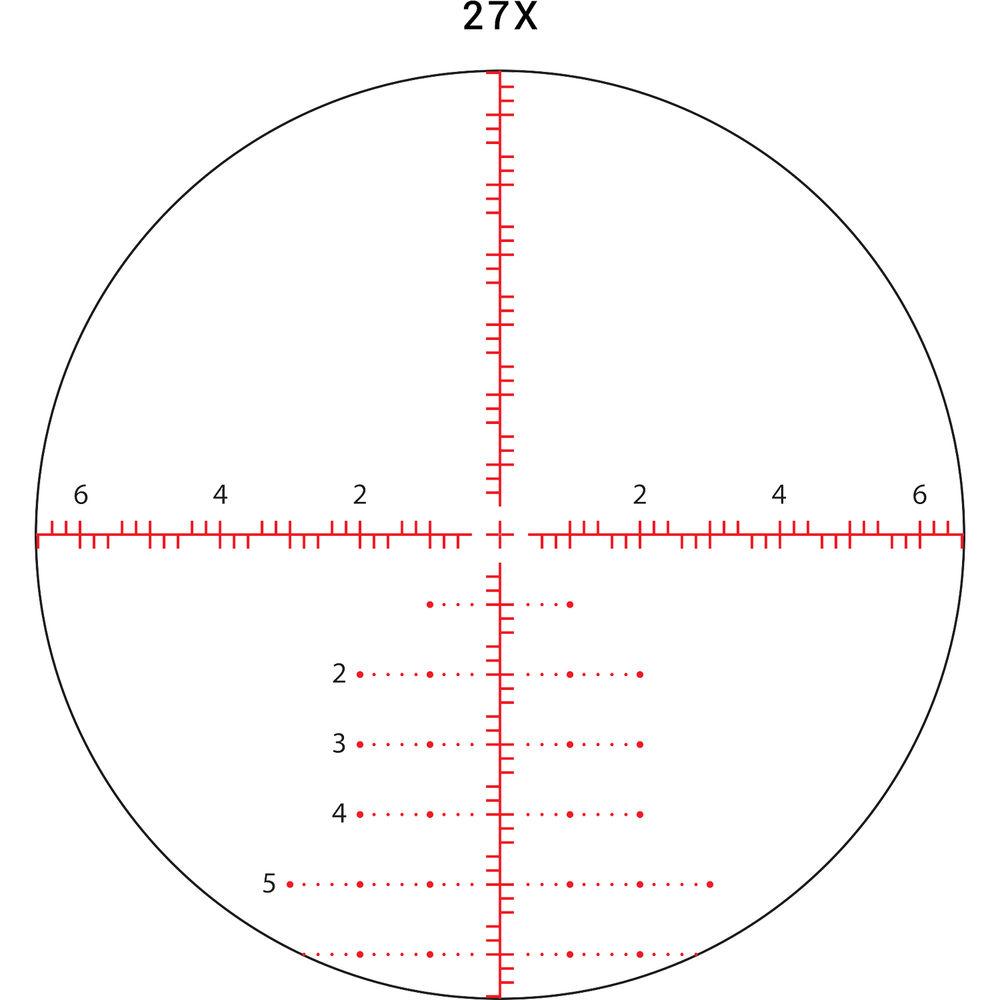

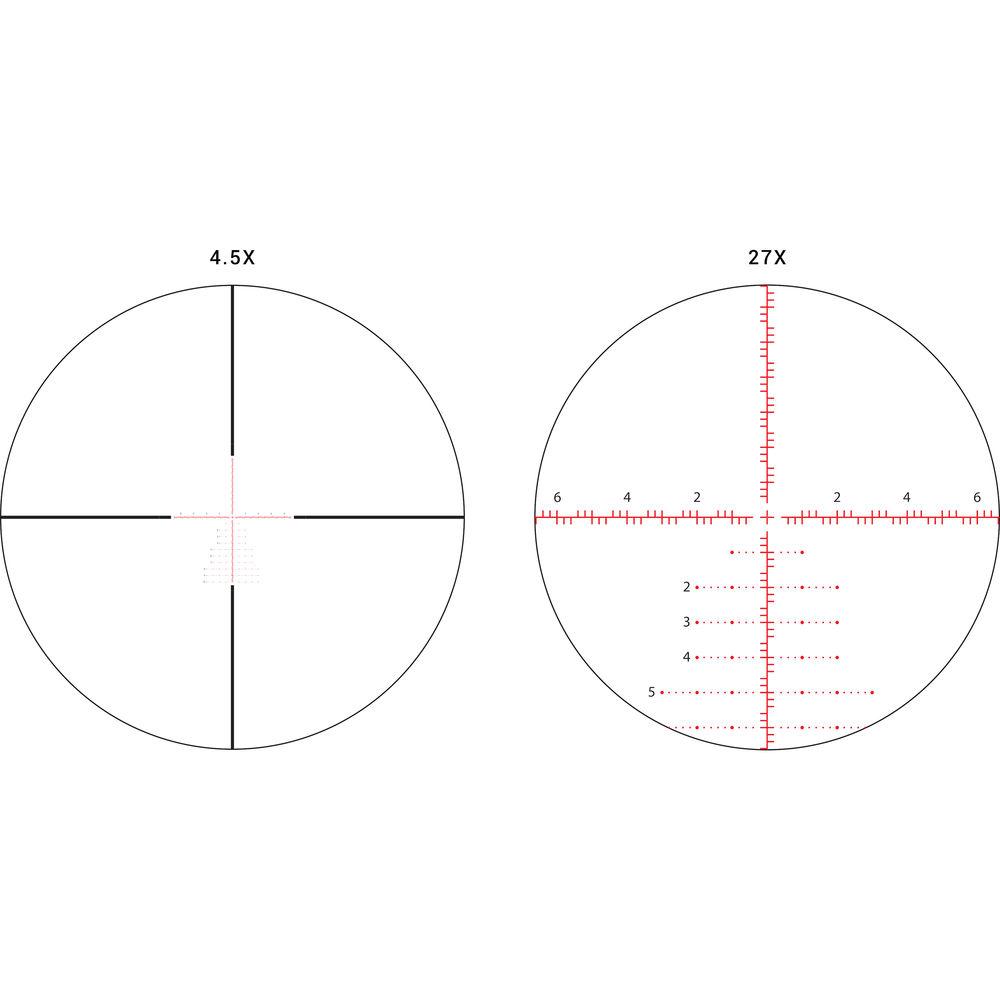

- Enumerated tree-like grid of points under the center
UPC: 813869021051 In the Box Athlon Optics 4.5-27x50 Ares BTR SF Riflescope (APLR3 MIL Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 4.5-27x50 Ares BTR SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 212007 Specs | | | Magnification | 4.5 to 27x | | Objective Lens Diameter | 50 mm | | Field of View | 4.5x: 22.7' @ 100 yd / 7.5 m @ 100 m
27x: 3.8' @ 100 yd / 1.2 m @ 100 m | | Exit Pupil Diameter | 4.5x: 11.1 mm
27x: 1.9 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | APLR3 MIL Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 24 MRAD | | Elevation Adjustment | 24 MRAD | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 13.8" / 35 cm | | Weight | 27.3 oz / 773.9 g | | | | Package Weight | 3.75 lb | | Box Dimensions (LxWxH) | 16.6 x 4.6 x 4.4" |
