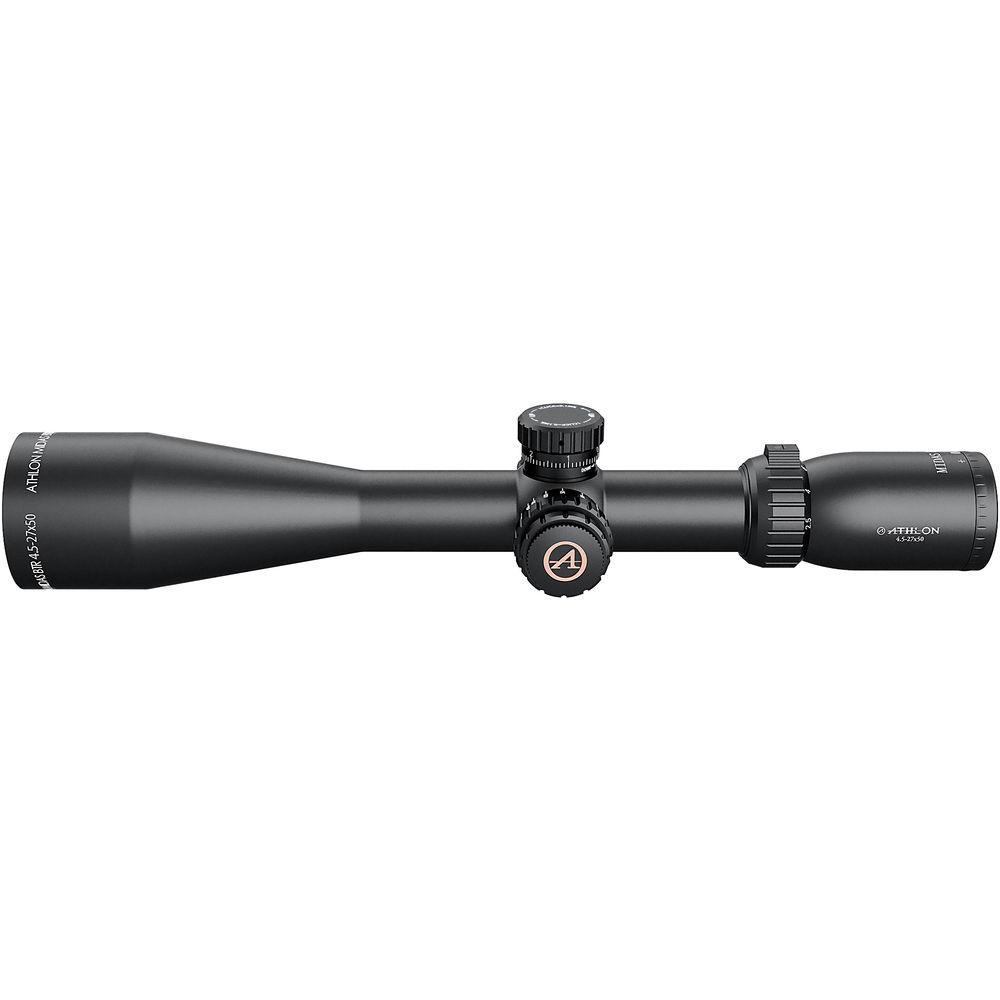

Product description Athlon's high-zoom 4.5-27x50 Midas BTR Riflescope combines the strength and durability of 6061-T6 aluminum construction with the contrast and detail of high-definition (HD) optics in a single package. With the extra-wide 50mm objective lens, this telescopic sight will deliver bright images even in challenging light conditions. The optical system also features fully multi-coated elements for improved brightness and low glare, and an extended 6x zoom for versatility. For protection from scratches, dirt, and oil, the exterior lenses have also been treated with the proprietary XPL coating. Another highlight is the second focal plane APLR1 MIL illuminated reticle, which can be operated parallax-free from 30 yards to infinity. The reticle's outline features four posts, a fully illuminated crosshair, and a tree-like grid of stadia points below the center. The MRAD-based stadia are dense and offer horizontal and vertical numbering.
To bring durability and strength to the table, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 30mm maintube. It provides exposed graduated windage and elevation turrets, a side focus parallax knob, an illuminated reticle, and an eyepiece with a low-profile zoom lever. - Optical Performance
-
- 4.5 - 27x zoom magnification
- 50mm objective delivers deliver bright images in low light
- High-definition (HD) glass improves contrast and detail
- Fully multi-coated optics improve brightness and reduce glare
- 22.7 - 3.6' at 100 yards linear field of view
- 11.1 - 1.7mm exit pupil
- Use and Handling
-
- 1/10 MRAD impact point correction
- 18 MRAD windage and elevation
- Parallax-free operation from 30 yards to infinity
- 3.9" eye relief
- Construction Details
-
- 6061-T6 aluminum
- 30mm maintube diameter
- Exposed, graduated turrets
- Side focus parallax corrector
- Accommodates one CR2032 battery
- Argon-purged fogproof
- Impact resistant
- Waterproof

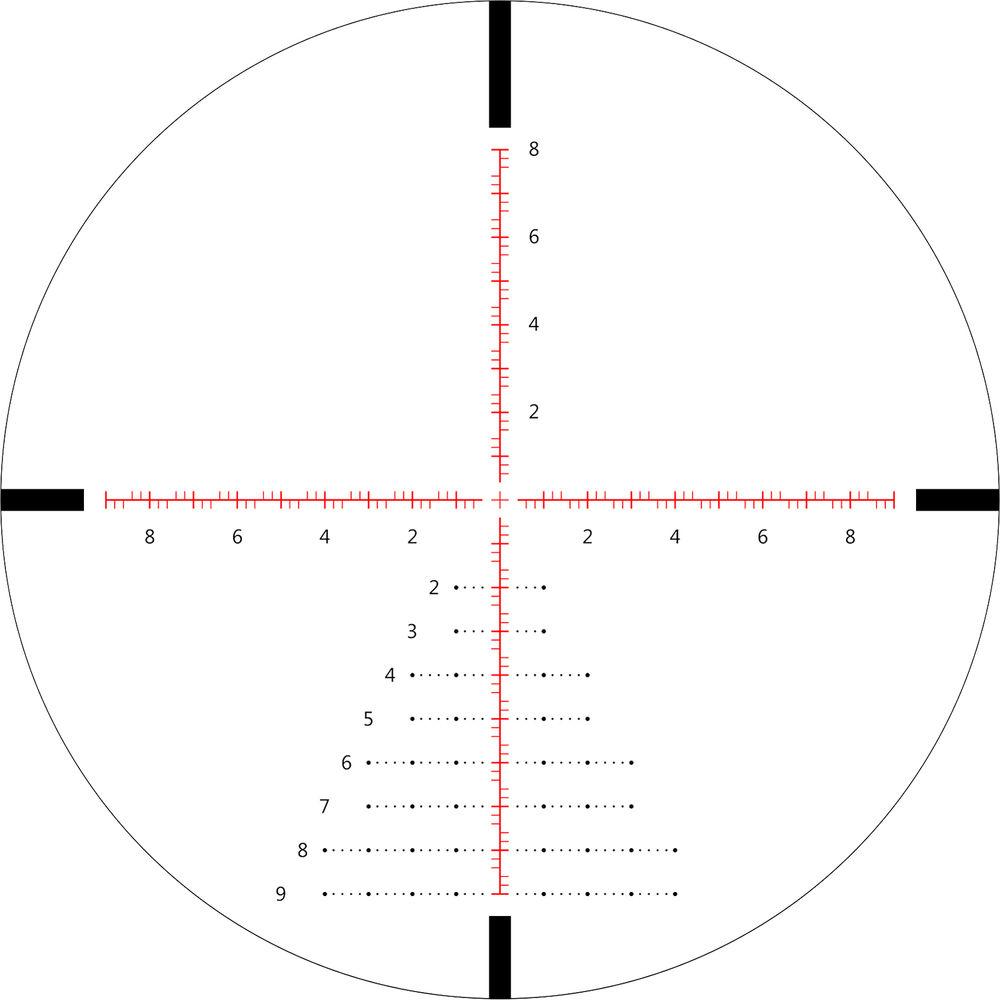

- APLR1 MIL Reticle
-
- 2nd focal plane
- Four posts
- Thin fully illuminated crosshair with dense enumerated marks
- Tree-like grid of stadia points below center with horizontal enumerations
In the Box Athlon Optics 4.5-27x50 Midas BTR Riflescope (APLR1 MIL Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 4.5-27x50 Midas BTR Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics Midas Specs | | | Magnification | 4.5 to 27x | | Objective Lens Diameter | 50 mm | | Field of View | 4.5x: 22.7' @ 100 yd / 7.6 m @ 100 m
27x: 3.6' @ 100 yd / 3.2 m @ 100 m | | Exit Pupil Diameter | 4.5x: 11.1 mm
27x: 1.7 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | APLR1 MIL Reticle (Second Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 18 MRAD | | Elevation Adjustment | 18 MRAD | | Parallax Correction | Yes, 30 yd / 27.4 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 30 mm | | Battery | 1 x CR2032 | | Material | Aluminum | | Dimensions | Length: 13.8" / 35 cm | | Weight | 26 oz / 737.1 g | | | | Package Weight | 3.515 lb | | Box Dimensions (LxWxH) | 16.75 x 4.55 x 4.35" |
