User Manual for Athlon Optics 4.5-30x56 Ares ETR SF Riflescope Click to enlarge the picture
Contents of the user manual for the Athlon Optics 4.5-30x56 Ares ETR SF
- Product category: Riflescopes Athlon Optics
- Brand: Athlon Optics
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Athlon Optics Riflescopes
|
User manual for the Athlon Optics 4.5-30x56 Ares ETR SF contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Athlon Optics product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Athlon Optics user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Athlon Optics product will considerably shorten its lifespan!
|

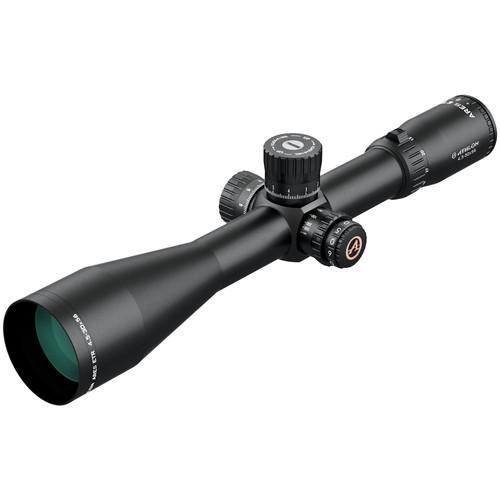

Product description Athlon's matte black version of the high-zoom 4.5-30x56 Ares ETR SF Riflescope is optimized for long-range and low-light shooting and combines the strength and durability of 6061-T6 aluminum construction with the contrast and detail of extra-low dispersion (ED) optical glass in a single package. The extra-low dispersion glass offers exceptional image clarity, detail, and contrast due to very low color fringing and high color reproduction. Together with the full multi-coatings, the lenses deliver clear, crisp, and high contrast images with a high level of detail and resolution and low glare. In the first focal plane is the APRS1 MIL illuminated reticle, which operates parallax-free from 25 yards to infinity. The first focal plane location allows the reticle to match the scale of targets and backgrounds as you zoom in and out, and serves correct compensation values, without the necessity to do any additional math. Its pattern features four medium posts and an illuminated crosshair with dense, MRAD-based stadia and a tree-shaped grid of ballistic and wind compensation points below the center.
To bring durability and strength to the table, the housing is crafted from 6061-T6 aluminum alloy and has a single-piece 34mm maintube with a high-precision erector system. It provides exposed and graduated direct dial windage and elevation turrets with a precise zero stop system. Other enhancements include a reticle brightness knob and the eyepiece's low-profile zoom lever. - Optical Performance
-
- 4.5 - 30x zoom magnification
- Extra-wide 56mm objective provides good visibility even in challenging lighting conditions
- Extra-low dispersion (ED) optical glass creates images with true color, low fringing, and high contrast
- Full multi-coatings improve brightness and reduce glare
- Proprietary XPL coating protects exterior lenses from scratches, oil, and dirt
- 24.5 - 3.75' at 100 yards linear field of view
- 12.4 - 1.9mm exit pupil
- Use and Handling
-
- 1/10 MRAD impact point correction
- 32 MRAD windage and elevation
- Parallax-free operation from 25 yards to infinity
- 3.9" eye relief
- Construction Details
-
- 6061-T6 aluminum alloy
- 34mm single-piece maintube
- Locking (pull-push) windage turret prevents accidental misadjustment
- Exposed, graduated, direct-dial turrets with precision zero stops
- High-precision erector system
- Side focus parallax corrector
- Accommodates CR2032 battery
- Argon-purged fogproof
- Impact resistant
- Waterproof
- APRS1 MIL Reticle
-
- 1st focal plane
- Four medium posts
- Illuminated crosshair with dense MRAD stadia
- Enumerated tree-like grid of points under the center
UPC: 813869021211 In the Box Athlon Optics 4.5-30x56 Ares ETR SF Riflescope (APRS1 MIL Illuminated Reticle, Matte Black) - CR2032 Battery
- Limited Lifetime Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the Athlon Optics 4.5-30x56 Ares ETR SF Riflescope in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersAthlon Optics 212100 Specs | | | Magnification | 4.5 to 30x | | Objective Lens Diameter | 56 mm | | Field of View | 4.5x: 24.5' @ 100 yd / 8.1 m @ 100 m
30x: 3.8' @ 100 yd / 1.3 m @ 100 m | | Exit Pupil Diameter | 4.5x: 12.4 mm
30x: 1.9 mm | | Eye Relief | 3.9" / 99 mm | | | | Reticle Type | APRS1 MIL Reticle (First Focal Plane) | | | | Impact Point Correction | 1/10 MRAD per Click | | Windage Adjustment | 32 MRAD | | Elevation Adjustment | 32 MRAD | | Parallax Correction | Yes, 25 yd / 22.9 m to Infinity | | | | Water Resistance | Waterproof | | Fogproof | Yes, Argon Filled | | | | Maintube Diameter | 34 mm | | Battery | 1 x CR2032 | | Dimensions | Length: 15.3" / 38.9 cm | | Weight | 36.5 oz / 1 kg |
